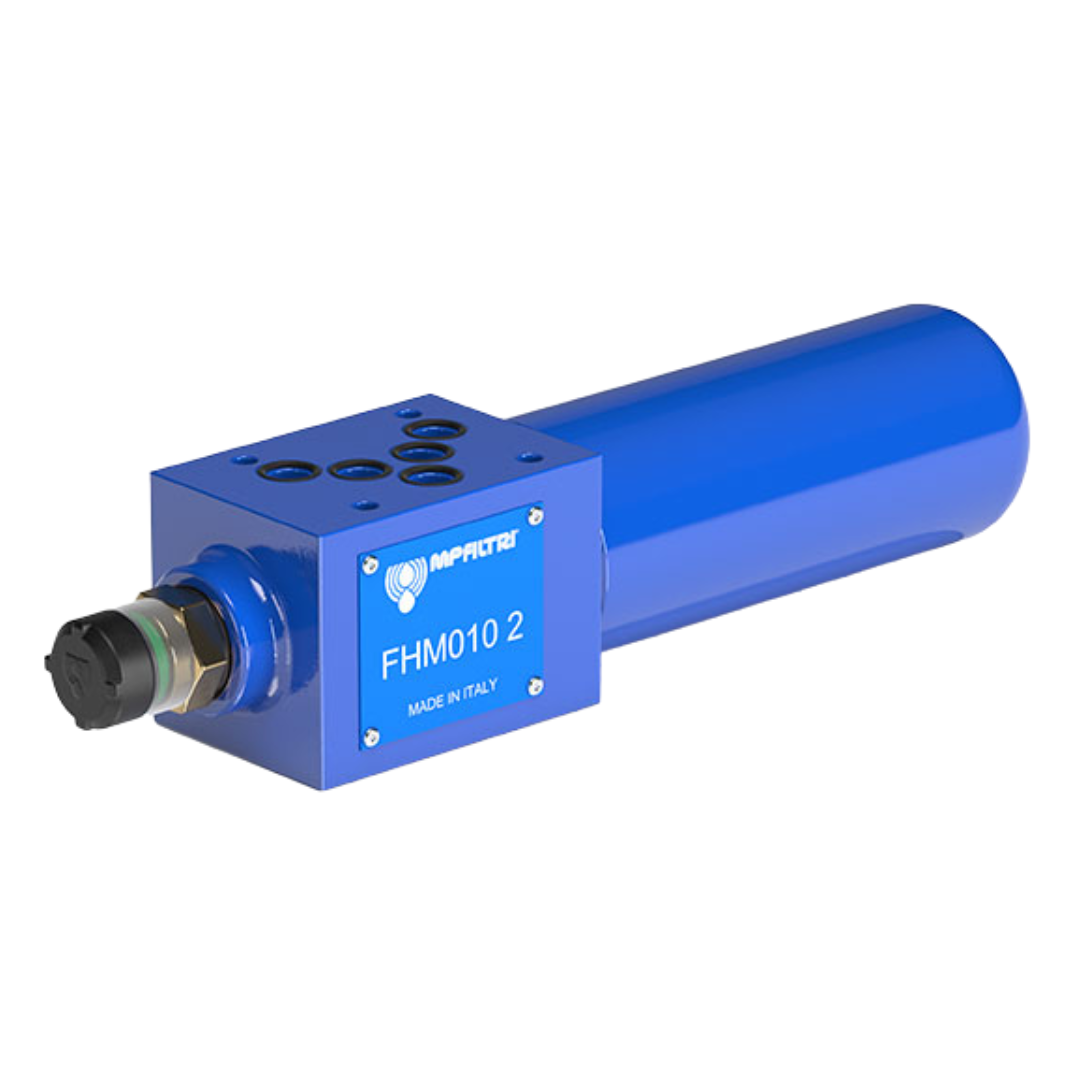

FHM010-3-S-A-G2-A10-N-P01 : MP Filtri Manifold Mount Filter, 4640psi, D05 (NG10) Mount, Housing Side B, 10 Micron, Without Indicator, With Bypass
Roll over image to zoom in Click on image to zoom
FHM010-3-S-A-G2-A10-N-P01 : MP Filtri Manifold Mount Filter, 4640psi, D05 (NG10) Mount, Housing Side B, 10 Micron, Without Indicator, With Bypass

FHM010-3-S-A-G2-A10-N-P01 : MP Filtri Manifold Mount Filter, 4640psi, D05 (NG10) Mount, Housing Side B, 10 Micron, Without Indicator, With Bypass

MP FiltriSKU: FHM010-3-S-A-G2-A10-N-P01
4-6 Weeks
Price:
$555.19

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Quakertown, Pennsylvania
Material Carbon Steel
Port Size D05 (NG10) Mount, Housing Side B
Flow Rating 8.19
Micron 10 Micron
Replacement Elements HP065-3-A10-A-H-P01 (Element)
O Ring Seals Buna
Valve Options With Bypass Valve
Pressure Rating 4640
Country of Manufacture Italy
Height 2.64
Length 14.5
Width 2.64
Weight 25.2

Description

The MP Filtri FHM Series High Pressure Manifold Filters are designed for use on manifolds in hydraulic applications, with a maximum operating pressure of 4640psi (320bar). The FHM006 and FHM007 have a D03 (NG6) Mounting pattern, and the FHM010 has a D05 (NG10) Mounting pattern. Since the filter hangs off the side of the FHM006, FHM007, and FHM010, these three have options for which direction you prefer the filter housing to hang. The FHM050, FHM065, FHM135, FHM320, and FHM 500 are all special mounting configurations designed for higher flow, and to mount on manifolds vertically with the housing up in the air.
