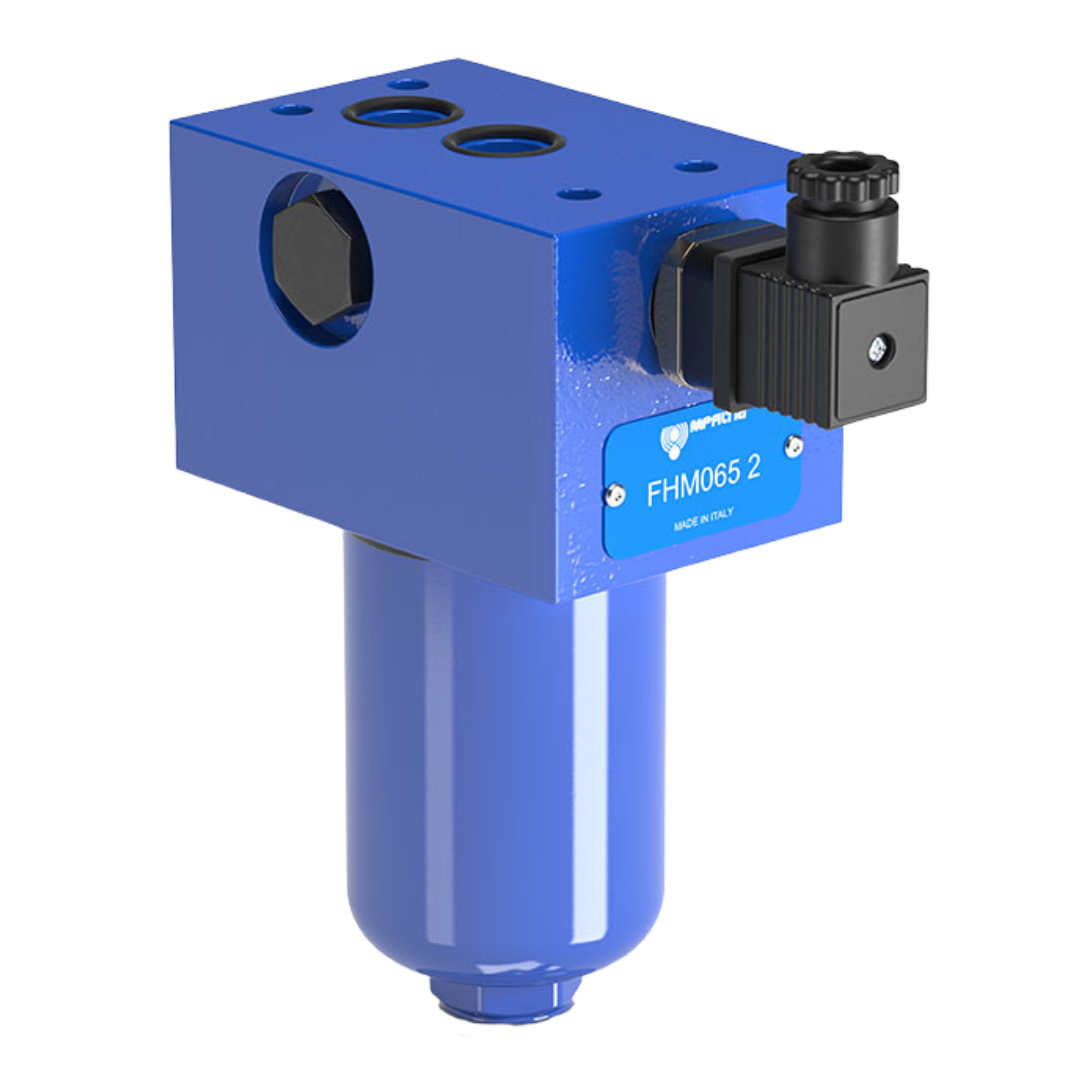

FHM065-1-B-A-F1-A06-N-P01 : MP Filtri Manifold Mount Filter, 4640psi, Special Manifold Mount, 6 Micron, No Indicator, With Bypass
Roll over image to zoom in Click on image to zoom
FHM065-1-B-A-F1-A06-N-P01 : MP Filtri Manifold Mount Filter, 4640psi, Special Manifold Mount, 6 Micron, No Indicator, With Bypass

FHM065-1-B-A-F1-A06-N-P01 : MP Filtri Manifold Mount Filter, 4640psi, Special Manifold Mount, 6 Micron, No Indicator, With Bypass

MP FiltriSKU: FHM065-1-B-A-F1-A06-N-P01
4-6 Weeks
Price:
$444.60

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Quakertown, Pennsylvania
Material Carbon Steel
Port Size Special Manifold Mount
Flow Rating 7.93
Micron 6 Micron
Replacement Elements HP065-1-A06-A-N-P01 (Element)
O Ring Seals Buna
Valve Options With Bypass Valve
Pressure Rating 4640
Country of Manufacture Italy
Height 3.14
Length 6.06
Width 4.72
Weight 53.4

Description

The MP Filtri FHM Series High Pressure Manifold Filters are designed for use on manifolds in hydraulic applications, with a maximum operating pressure of 4640psi (320bar). The FHM006 and FHM007 have a D03 (NG6) Mounting pattern, and the FHM010 has a D05 (NG10) Mounting pattern. Since the filter hangs off the side of the FHM006, FHM007, and FHM010, these three have options for which direction you prefer the filter housing to hang. The FHM050, FHM065, FHM135, FHM320, and FHM 500 are all special mounting configurations designed for higher flow, and to mount on manifolds vertically with the housing up in the air.
