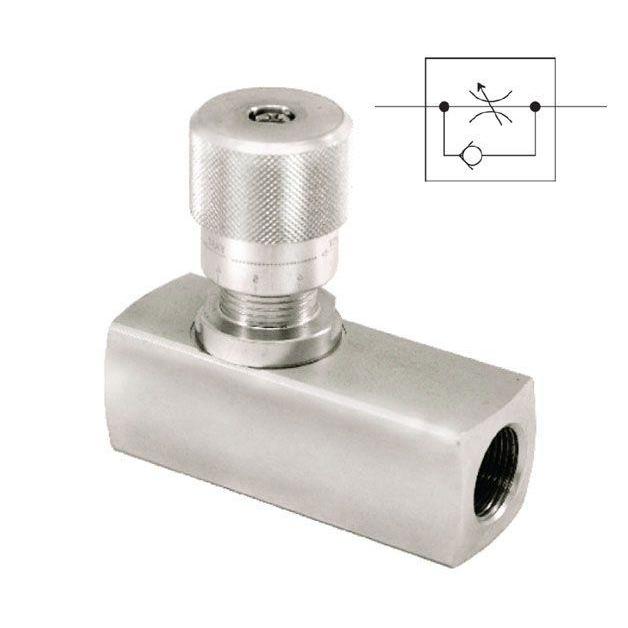

FS#8-1 : AFP Flow Control, #8 SAE (1/2"), 5700psi and 13GPM rated, Steel
Roll over image to zoom in Click on image to zoom
FS#8-1 : AFP Flow Control, #8 SAE (1/2"), 5700psi and 13GPM rated, Steel

FS#8-1 : AFP Flow Control, #8 SAE (1/2"), 5700psi and 13GPM rated, Steel

Anchor Fluid PowerSKU: FS#8-1
Same Day
1
Price:
$54.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Cincinnati, Ohio and Houston, Texas
Connection Size #8 SAE (1/2")
Material Carbon Steel
Panel Mount Option No Panel Mount Nut
Adjustment Type Knob Adjustment
Flow Rating 13
Pressure Rating 5700
Country of Manufacture China
Height 1.18
Length 3.58
Width 2.79
Weight 1.4

Description

The Anchor Flow Control valves have a graduated knob and spindle for accurate flow control, and a set screw allows this valve to be locked into position. These valves are carbon steel with zinc chromate plating, and are RoHS Compliant. They come with a 7psi standard spring setting, Buna seals, and PTFE Stem packing. These Anchor Flow Control valves are for control of flow only, and are not to be used as isolation or shut off valves.
