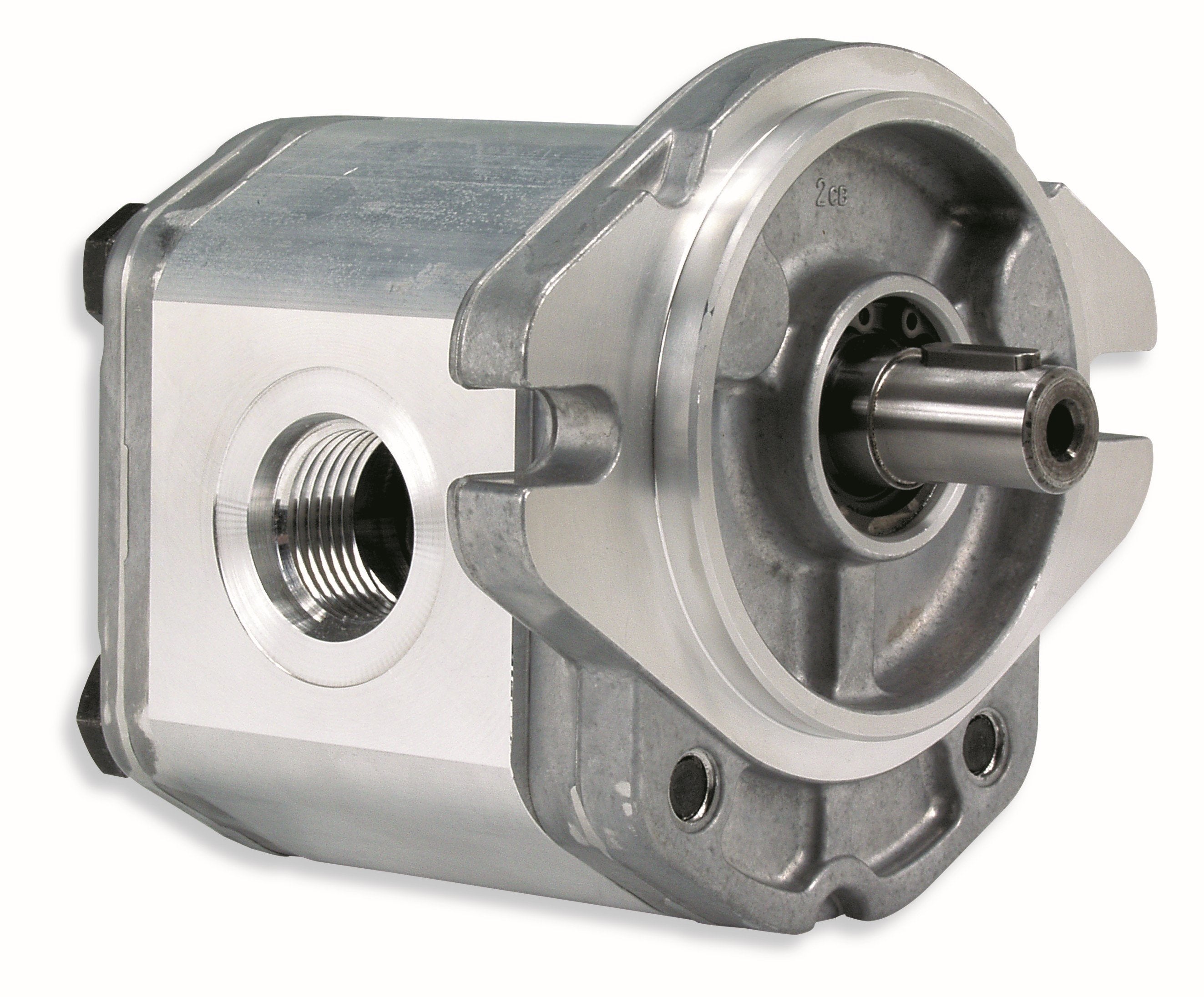

GHM2A-R-10-E2 : Marzocchi Gear Motor, Bidirectional, 7cc, 4060psi rated, 4000RPM, 0.75 (3/4") #12 SAE ports, 5/8" Bore x 5/32" Keyed Shaft
Roll over image to zoom in Click on image to zoom
GHM2A-R-10-E2 : Marzocchi Gear Motor, Bidirectional, 7cc, 4060psi rated, 4000RPM, 0.75 (3/4") #12 SAE ports, 5/8" Bore x 5/32" Keyed Shaft

GHM2A-R-10-E2 : Marzocchi Gear Motor, Bidirectional, 7cc, 4060psi rated, 4000RPM, 0.75 (3/4") #12 SAE ports, 5/8" Bore x 5/32" Keyed Shaft

Save $32.01
MarzocchiSKU: GHM2A-R-10-E2
4-6 Weeks
Price:
$361.99 $394.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Illinois
Material Aluminum Body Cast Iron Flange And Cover
Type Reversible Motor
Shaft Size 5/8" Bore x 5/32" Key
Shaft Type Keyed
Rotation Bidirectional
Displacement 7 (cc)
Max Speed 4000 RPM
Inlet Port 0.75 (3/4") #12 SAE
Outlet Port 0.75 (3/4") #12 SAE
Mount SAE A 2-Bolt
Motor Pressure Rating 4060
Country of Manufacture Italy
Height 4.01
Length 5.04
Width 5.12

Description

Marzocchi Gear Motors may be unidirectional or bidirectional and manufactured in three different size groups. A very good power to weight ratio and power to size ratio allows for a wide range of displacements within each group (between 2.8 and 87cc per revolution. The drain is always external and it is through a thread port on the cover.
