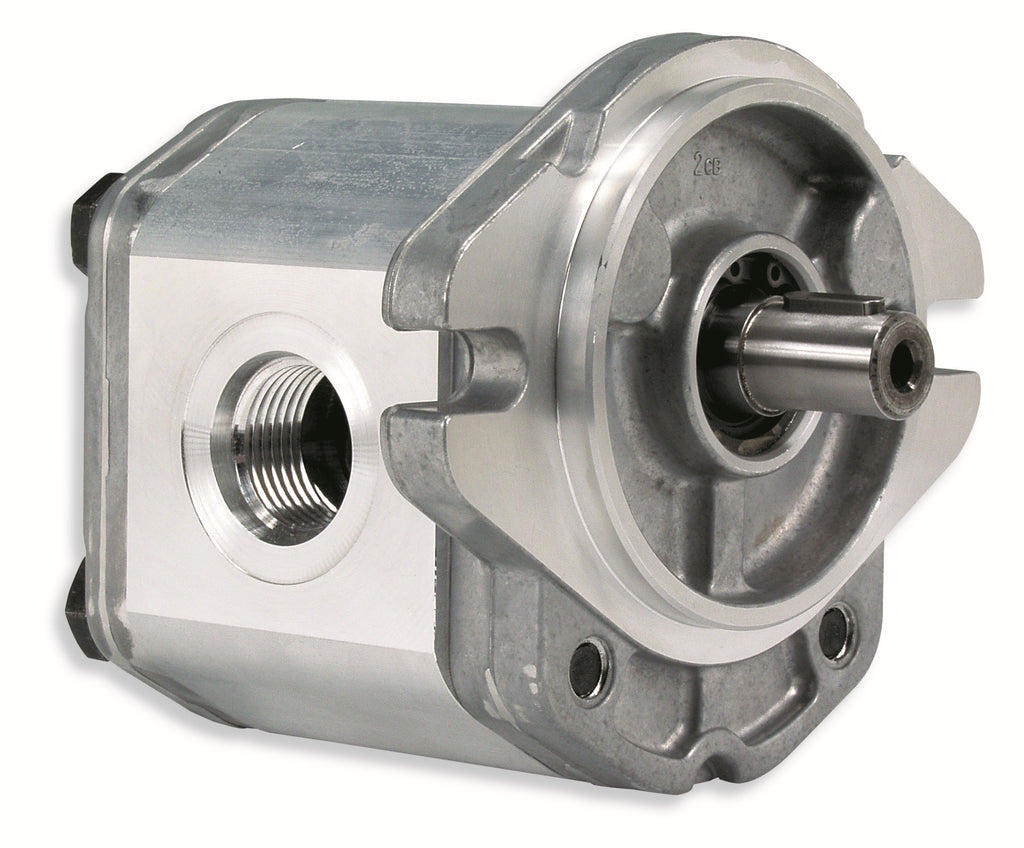

GHM3A-R-135-S1-E4 : Marzocchi Gear Motor, Bidirectional, 87cc, 2320psi rated, 2000RPM, 1.25" Code 61 ports, 13T 16/32DP Splined Shaft
Roll over image to zoom in Click on image to zoom
GHM3A-R-135-S1-E4 : Marzocchi Gear Motor, Bidirectional, 87cc, 2320psi rated, 2000RPM, 1.25" Code 61 ports, 13T 16/32DP Splined Shaft

GHM3A-R-135-S1-E4 : Marzocchi Gear Motor, Bidirectional, 87cc, 2320psi rated, 2000RPM, 1.25" Code 61 ports, 13T 16/32DP Splined Shaft

MarzocchiSKU: GHM3A-R-135-S1-E4
4-6 Weeks
Price:
$784.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Illinois
Material Aluminum Body Cast Iron Flange And Cover
Type Reversible Motor
Shaft Size 13T 16/32DP
Shaft Type Splined
Rotation Bidirectional
Displacement 87 (cc)
Max Speed 2000 RPM
Inlet Port 1.25" Code 61
Outlet Port 1.25" Code 61
Mount SAE B 2-Bolt
Motor Pressure Rating 2320
Country of Manufacture Italy
Height 5.83
Length 8.46
Width 6.85

Description

Marzocchi Gear Motors may be unidirectional or bidirectional and manufactured in three different size groups. A very good power to weight ratio and power to size ratio allows for a wide range of displacements within each group (between 2.8 and 87cc per revolution. The drain is always external and it is through a thread port on the cover.
