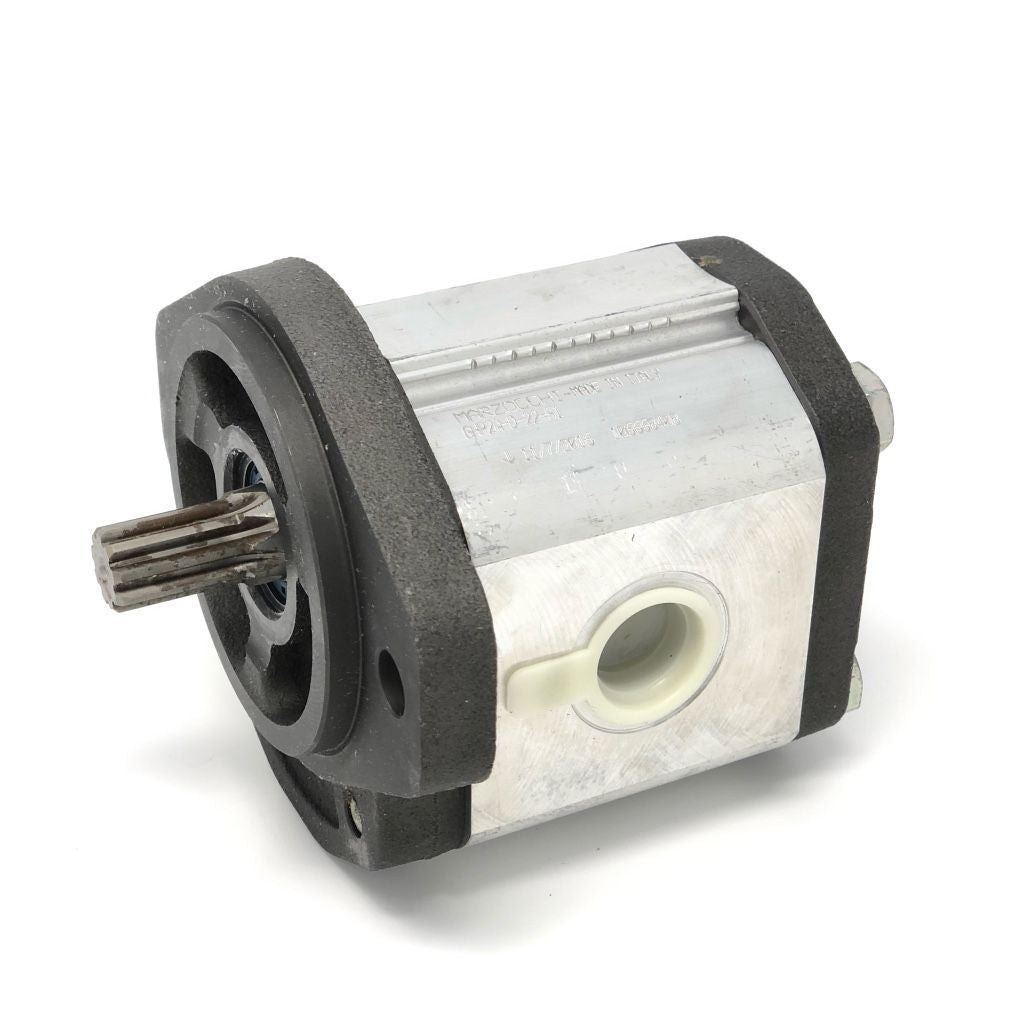

GHP2A-S-25-S1 : Marzocchi Gear Pump, CCW, 17.9cc (1.0919in3), 8.51 GPM, 3770psi, 2500 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
GHP2A-S-25-S1 : Marzocchi Gear Pump, CCW, 17.9cc (1.0919in3), 8.51 GPM, 3770psi, 2500 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount

GHP2A-S-25-S1 : Marzocchi Gear Pump, CCW, 17.9cc (1.0919in3), 8.51 GPM, 3770psi, 2500 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, Splined Shaft 9T 16/32DP, SAE A 2-Bolt Mount

MarzocchiSKU: GHP2A-S-25-S1
16-18 Weeks
Price:
$288.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Cast Iron Flange and Cover
Shaft Size 9T 16/32DP
Shaft Type Splined
Pressure Rating 3770
Rotation Counter-Clockwise
Displacement 17.9
Gpm At 1800 Rpm 8.51
Max Speed 2500RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Italy
Height 4.02
Length 5.12
Width 4.51

Description

Marzocchi GHP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The body of the pump is made of special high-resistant extruded aluminum alloy, while the flange and cover are made of spheroidal cast iron. This ensures minimized deformation when subject to high pressures. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
