Product Details
Data Sheet | Click here to download |
---|---|
Usually Ships Within | 6 Weeks |
Factory Location | Finland |
Horsepower | 6.6 kVA |
Flow Rating | 13.4 |
Pressure Rating | 3000 |
Inlet Flow Rate | 9.8 |
Operating Temp Range | Up to 158F |
Inlet Port | 0.5 (1/2") BSP |
Outlet Port | 0.5 (1/2") BSP |
Voltage | 230/400VAC |
Series | HG-IP54 |
Protection Class | IP54 |
Country of Manufacture | Finland |
Height | 13.9 |
Length | 18 |
Width | 14.9 |
Weight | 125 |
Description

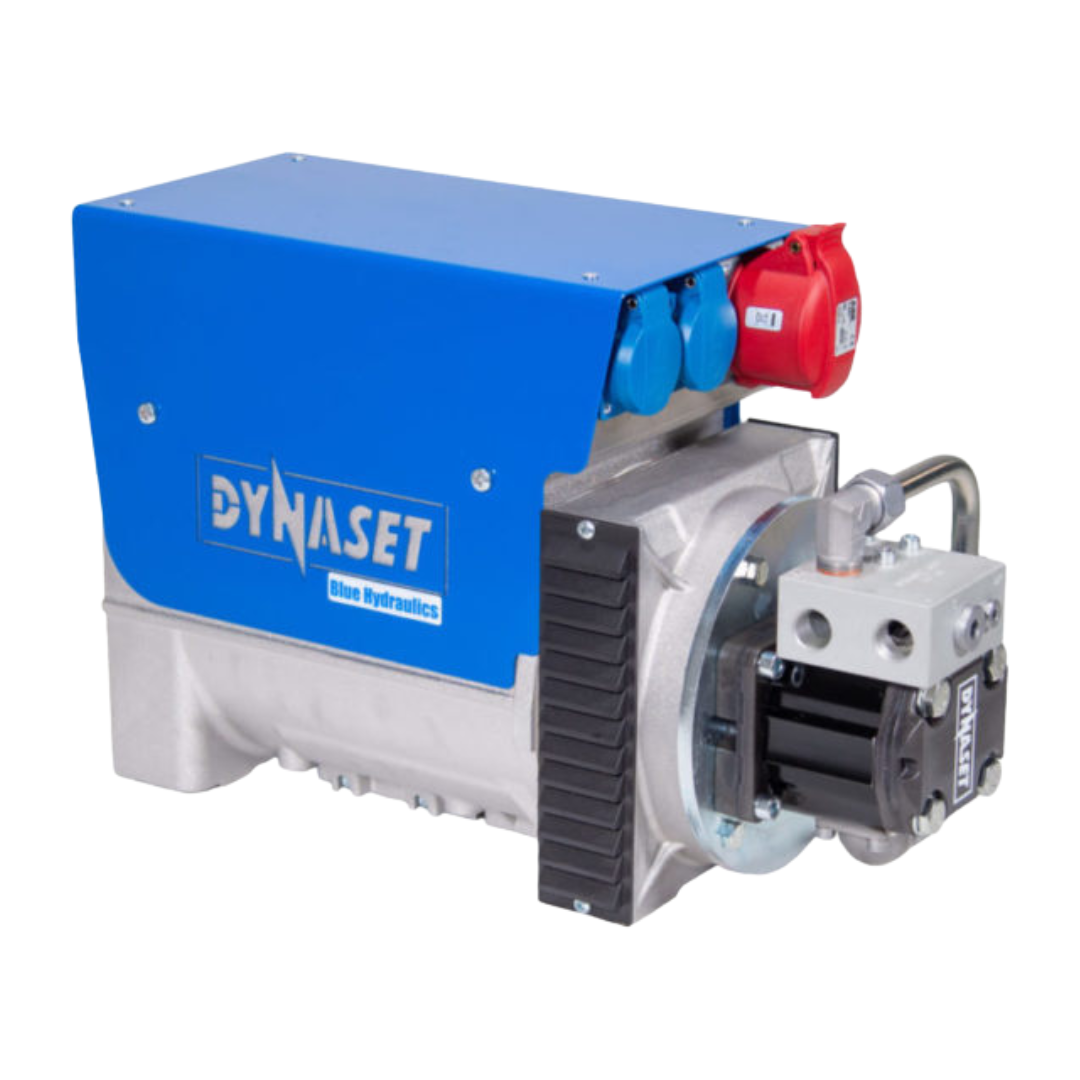

The Dynaset HG Hydraulic Generator converts hydraulic power from mobile machinery, vehicles, or vessels into high-quality electricity for AC-powered tools, lights, heaters, and coolers, ensuring reliable power in mobile settings. With output capacities ranging from 3.5 kVA to 350 kVA, it is up to 95 percent smaller and lighter than traditional diesel generators, offering excellent power-to-size ratio and easy installation. Designed for minimal maintenance, the generator features overload protection, a safety leakage relay, and a residual current circuit breaker, with compatibility for all socket types and optional auxiliary fuse/socket box. It operates with low noise due to its silent hydraulic motor and includes automatic frequency and voltage control (except for 3.5 kVA and 5 kVA models). With IP23, IP54, and NEMA 3 protection ratings and a pending UL certification, the Dynaset HG is a reliable, eco-friendly choice backed by a two-year or 2,000-hour warranty.
The Dynaset HG Hydraulic Generator converts hydraulic power from mobile machinery, vehicles, or vessels into high-quality electricity for AC-powered tools, lights, heaters, and coolers, ensuring reliable power in mobile settings. With output capacities ranging from 3.5 kVA to 350 kVA, it is up to 95% smaller and lighter than traditional diesel generators, offering excellent power-to-size ratio and easy installation. Designed for minimal maintenance, the generator features overload protection, a safety leakage relay, and a residual current circuit breaker, with compatibility for all socket types and optional auxiliary fuse/socket box. It operates with low noise due to its silent hydraulic motor and includes automatic frequency and voltage control (except for 3.5 kVA and 5 kVA models). With IP23, IP54, and NEMA 3 protection ratings and a pending UL certification, the Dynaset HG is a reliable, eco-friendly choice backed by a two-year or 2,000-hour warranty.
