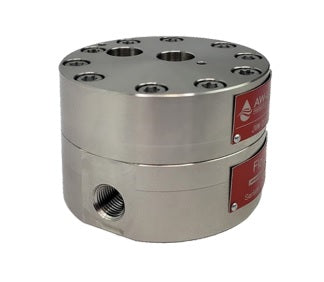

JVM30TCVNS : AW-Lake 6000psi 303 Stainless Steel / DIN 1.4305 Positive Displacement Gear Flow Meter, 0.5 (1/2") NPT Process Port, 3/8" NPT Electrical Port, 0.1 to 7.0 GPM

The JV-TC Positive Displacement Flow Meter is part of AW-Lake’s Next-Generation line of Gear Meters and is the result of decades of experience, listening to customers and extensive and diligent study of the latest technologies available. These high performance flow meters have wider turndowns, higher resolution, higher pressure rating, and improved accuracy over their predecessor the JV-CG meter. This meter maintains high accuracy and repeatability, despite changing viscosity conditions, up to +/-0.25 percent accuracy with select sensors. Applications well suited to the JV-TC meters include filling & dosing systems, 2- and 3-component mixing systems, and paint systems, such as seen in the automotive sector.
