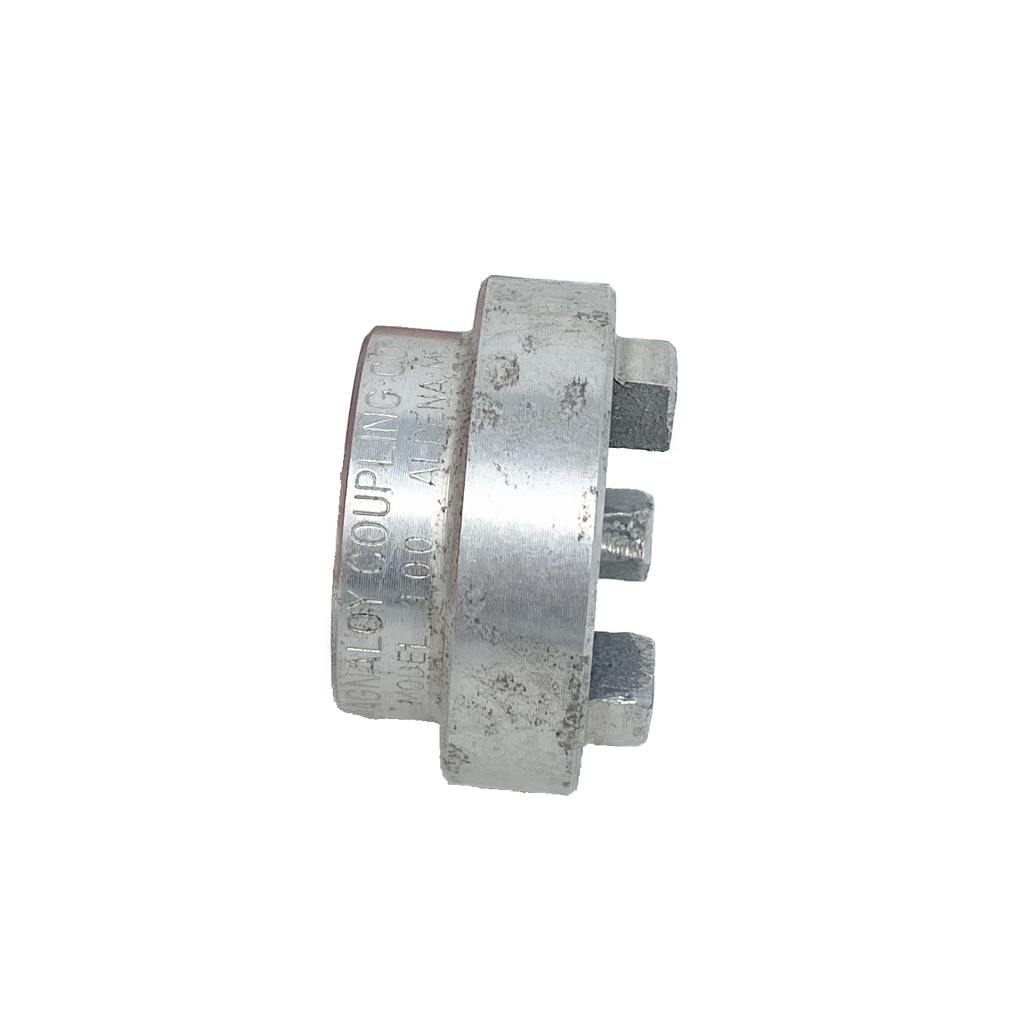

300 14MMBX5MMK : Magnaloy 300 HUB 14MM BORE X 5MM KEY, M300M1405
300 14MMBX5MMK : Magnaloy 300 HUB 14MM BORE X 5MM KEY, M300M1405
Roll over image to zoom in Click on image to zoom
300 14MMBX5MMK : Magnaloy 300 HUB 14MM BORE X 5MM KEY, M300M1405300 14MMBX5MMK : Magnaloy 300 HUB 14MM BORE X 5MM KEY, M300M1405

300 14MMBX5MMK : Magnaloy 300 HUB 14MM BORE X 5MM KEY, M300M1405

Save $7.01
MagnaloySKU: M300M1405
1-3 Days
Price:
$42.99 $50.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 14mm
Country of Manufacture United States
Height 3.45
Length 1.74
Width 3.45
Weight 2

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M30010208S 300 1-1/16BX1/4K : Magnaloy 300 HUB 1-1/16" BORE X 1/4" KEY SPECIAL 300 Keyed 1.0625 (1-1/16") 0.25 (1/4") 1-3 Days $42.99
M30010206S 300 1-1/16BX3/16K : Magnaloy 300 HUB 1-1/16" BORE X 3/16" KEY SPECIAL 300 Keyed 1.0625 (1-1/16") 0.1875 (3/16") 1-3 Days $42.99
M30010205S 300 1-1/16BX5/32K : Magnaloy 300 HUB 1-1/16" BORE X 5/32" KEY SPECIAL 300 Keyed 1.0625 (1-1/16") 0.15625 (5/32") 1-3 Days $42.99
M30011612-NYLOC 300 1-1/2BX3/8 : Magnaloy 300 HUB 1-1/2" BORE X 3/8" W/ LIQUID NYLOC 300 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $33.99
M30011612DSS45 300 1-1/2BX3/8K : Magnaloy 300 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW AT 45DEG 300 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $33.99
M30011612DSS 300 1-1/2BX3/8K : Magnaloy 300 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW 300 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $33.99
M30011612C 300 1-1/2BX3/8K : Magnaloy 300 HUB 1-1/2" BORE X 3/8" KEY W/CLAMP 300 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $63.99
M30011612 300 1-1/2BX3/8K : Magnaloy 300 HUB 1-1/2" BORE X 3/8" KEY 300 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $31.99
M30011610S 300 1-1/2BX5/16K : Magnaloy 300 HUB 1-1/2" BORE X 5/16" KEY SPECIAL 300 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $42.99
M30011614S 300 1-1/2BX7/16K : Magnaloy 300 HUB 1-1/2" BORE X 7/16" KEY SPECIAL 300 Keyed 1.5 (1-1/2") 0.4375 (7/16") 1-3 Days $42.99
M300116N 300 1-1/2BXNOK : Magnaloy 300 HUB 1-1/2" BORE X NO KEY 300 Keyed 1.5 (1-1/2") NONE 1-3 Days $42.99
M30010808DSS45 300 1-1/4BX1/4K : Magnaloy 300 HUB 1-1/4" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 300 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $33.99
M30010808DSS 300 1-1/4BX1/4K : Magnaloy 300 HUB 1-1/4" BORE X 1/4" KEY W/DBL SET SCREW 300 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $33.99
M30010808C 300 1-1/4BX1/4K : Magnaloy 300 HUB 1-1/4" BORE X 1/4" KEY W/CLAMP 300 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $63.99
M30010808 300 1-1/4BX1/4K : Magnaloy 300 HUB 1-1/4" BORE X 1/4" KEY 300 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $31.99
M30010804S 300 1-1/4BX1/8K : Magnaloy 300 HUB 1-1/4" BORE X 1/8" KEY SPECIAL 300 Keyed 1.25 (1-1/4") 0.125 (1/8") 1-3 Days $42.99
M30010806S 300 1-1/4BX3/16K : Magnaloy 300 HUB 1-1/4" BORE X 3/16" KEY SPECIAL 300 Keyed 1.25 (1-1/4") 0.15625 (5/32") 1-3 Days $42.99
M30010812SDSS 300 1-1/4BX3/8K : Magnaloy 300 HUB 1-1/4" BORE X 3/8" KEY SPECIAL W/DBL SET SCREW 300 Keyed 1.25 (1-1/4") 0.375 (3/8") 7-10 Days $45.99
M30010812S 300 1-1/4BX3/8K : Magnaloy 300 HUB 1-1/4" BORE X 3/8" KEY SPECIAL 300 Keyed 1.25 (1-1/4") 0.375 (3/8") 1-3 Days $42.99
M30010810-NYLOC 300 1-1/4BX5/16 : Magnaloy 300 HUB 1-1/4" BORE X 5/16" W/ LIQUID NYLOC 300 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $33.99
M30010810DSS45 300 1-1/4BX5/16K : Magnaloy 300 HUB 1-1/4" BORE X 5/16" KEY DBL SET SCREW AT 45DEG 300 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $33.99
M30010810DSS 300 1-1/4BX5/16K : Magnaloy 300 HUB 1-1/4" BORE X 5/16" KEY DBL SET SCREW 300 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $33.99
M30010810C 300 1-1/4BX5/16K : Magnaloy 300 HUB 1-1/4" BORE X 5/16" KEY W/CLAMP 300 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $63.99
M30010810 300 1-1/4BX5/16K : Magnaloy 300 HUB 1-1/4" BORE X 5/16" KEY 300 Keyed 1.25 (1-1/4") 0.3125 (5/16") Same Day $31.99
M30010805S 300 1-1/4BX5/32K : Magnaloy 300 HUB 1-1/4" BORE X 5/32" KEY SPECIAL 300 Keyed 1.25 (1-1/4") 0.1875 (3/16") 1-3 Days $42.99
M300108N 300 1-1/4BXNOK : Magnaloy 300 HUB 1-1/4" BORE X NO KEY 300 Keyed 1.25 (1-1/4") NONE 1-3 Days $42.99
M30010408DSS45 300 1-1/8BX1/4 : Magnaloy 300 HUB 1-1/8" BORE X 1/4" W/DBL SET SCREW AT 45DEG 300 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $33.99
M30010408DSS 300 1-1/8BX1/4 : Magnaloy 300 HUB 1-1/8" BORE X 1/4" W/DBL SET SCREW 300 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $33.99
M30010408C 300 1-1/8BX1/4K : Magnaloy 300 HUB 1-1/8" BORE X 1/4" KEY W/CLAMP 300 Keyed 1.125 (1-1/8") 0.25 (1/4") 1-3 Days $63.99
M30010408 300 1-1/8BX1/4K : Magnaloy 300 HUB 1-1/8" BORE X 1/4" KEY 300 Keyed 1.125 (1-1/8") 0.25 (1/4") Same Day $31.99
M30010406S 300 1-1/8BX3/16K : Magnaloy 300 HUB 1-1/8" BORE X 3/16" KEY SPECIAL 300 Keyed 1.125 (1-1/8") 0.1875 (3/16") 1-3 Days $42.99
M30010412S 300 1-1/8BX3/8K : Magnaloy 300 HUB 1-1/8" BORE X 3/8" KEY SPECIAL 300 Keyed 1.125 (1-1/8") 0.375 (3/8") 1-3 Days $42.99
M30010410S 300 1-1/8BX5/16K : Magnaloy 300 HUB 1-1/8" BORE X 5/16" KEY SPECIAL 300 Keyed 1.125 (1-1/8") 0.3125 (5/16") 1-3 Days $42.99
M30010410C 300 1-1/8BX5/16K : Magnaloy 300 HUB 1-1/8" BORE X 5/16" KEY W/CLAMP 300 Keyed 1.125 (1-1/8") 0.3125 (5/16") 1-3 Days $63.99
M300104NC 300 1-1/8BXNOK : Magnaloy 300 HUB 1-1/8" BORE X NO KEY W/CLAMP 300 Keyed 1.125 (1-1/8") NONE 1-3 Days $73.99
M300104N 300 1-1/8BXNOK : Magnaloy 300 HUB 1-1/8" BORE X NO KEY 300 Keyed 1.125 (1-1/8") NONE 1-3 Days $42.99
M30010608DSS 300 1-3/16BX1/4K : Magnaloy 300 HUB 1-3/16" BORE X 1/4" KEY W/DBL SET SCREW 300 Keyed 1.1875 (1-3/16") 0.25 (1/4") 7-10 Days $33.99
M30010608 300 1-3/16BX1/4K : Magnaloy 300 HUB 1-3/16" BORE X 1/4" KEY 300 Keyed 1.1875 (1-3/16") 0.25 (1/4") 1-3 Days $31.99
M30010610S 300 1-3/16BX5/16K : Magnaloy 300 HUB 1-3/16" BORE X 5/16" KEY SPECIAL 300 Keyed 1.1875 (1-3/16") 0.3125 (5/16") 1-3 Days $42.99
M300106N 300 1-3/16BXNK : Magnaloy 300 HUB 1-3/16" BORE XNK SPECIAL 300 Keyed 1.1875 (1-3/16") NONE 1-3 Days $42.99
M300106NC 300 1-3/16BXNOK : Magnaloy 300 HUB 1-3/16" BORE X NO KEY W/CLAMP 300 Keyed 1.1875 (1-3/16") NONE 1-3 Days $73.99
M30011208SDSS 300 1-3/8BX1/4K : Magnaloy 300 HUB 1-3/8" BORE X 1/4" KEY SPECIAL W/DBL SET SCREW 300 Keyed 1.375 (1-3/8") 0.25 (1/4") 7-10 Days $45.99
M30011208S 300 1-3/8BX1/4K : Magnaloy 300 HUB 1-3/8" BORE X 1/4" KEY SPECIAL 300 Keyed 1.375 (1-3/8") 0.25 (1/4") 1-3 Days $42.99
M30011206SDSS 300 1-3/8BX3/16K : Magnaloy 300 HUB 1-3/8" BORE X 3/16" KEY SPECIAL W/DBL SET SCREW 300 Keyed 1.375 (1-3/8") 0.1875 (3/16") 7-10 Days $45.99
M30011206S 300 1-3/8BX3/16K : Magnaloy 300 HUB 1-3/8" BORE X 3/16" KEY SPECIAL 300 Keyed 1.375 (1-3/8") 0.1875 (3/16") 1-3 Days $42.99
M30011212DSS 300 1-3/8BX3/8 : Magnaloy 300 HUB 1-3/8" BORE X 3/8" W/DBL SET SCREW 300 Keyed 1.375 (1-3/8") 0.375 (3/8") 7-10 Days $33.99
M30011212DSS45 300 1-3/8BX3/8K : Magnaloy 300 HUB 1-3/8" BORE X 3/8" KEY W/DBL SET SCREW AT 45DEG 300 Keyed 1.375 (1-3/8") 0.375 (3/8") 7-10 Days $33.99
M30011212C 300 1-3/8BX3/8K : Magnaloy 300 HUB 1-3/8" BORE X 3/8" KEY W/CLAMP 300 Keyed 1.375 (1-3/8") 0.375 (3/8") 1-3 Days $63.99
M30011212 300 1-3/8BX3/8K : Magnaloy 300 HUB 1-3/8" BORE X 3/8" KEY 300 Keyed 1.375 (1-3/8") 0.375 (3/8") Same Day $31.99
M30011210DSS45 300 1-3/8BX5/16K : Magnaloy 300 HUB 1-3/8" BORE X 5/16" KEY DBL SET SCREW AT 45DEG 300 Keyed 1.375 (1-3/8") 0.3125 (5/16") 7-10 Days $33.99
