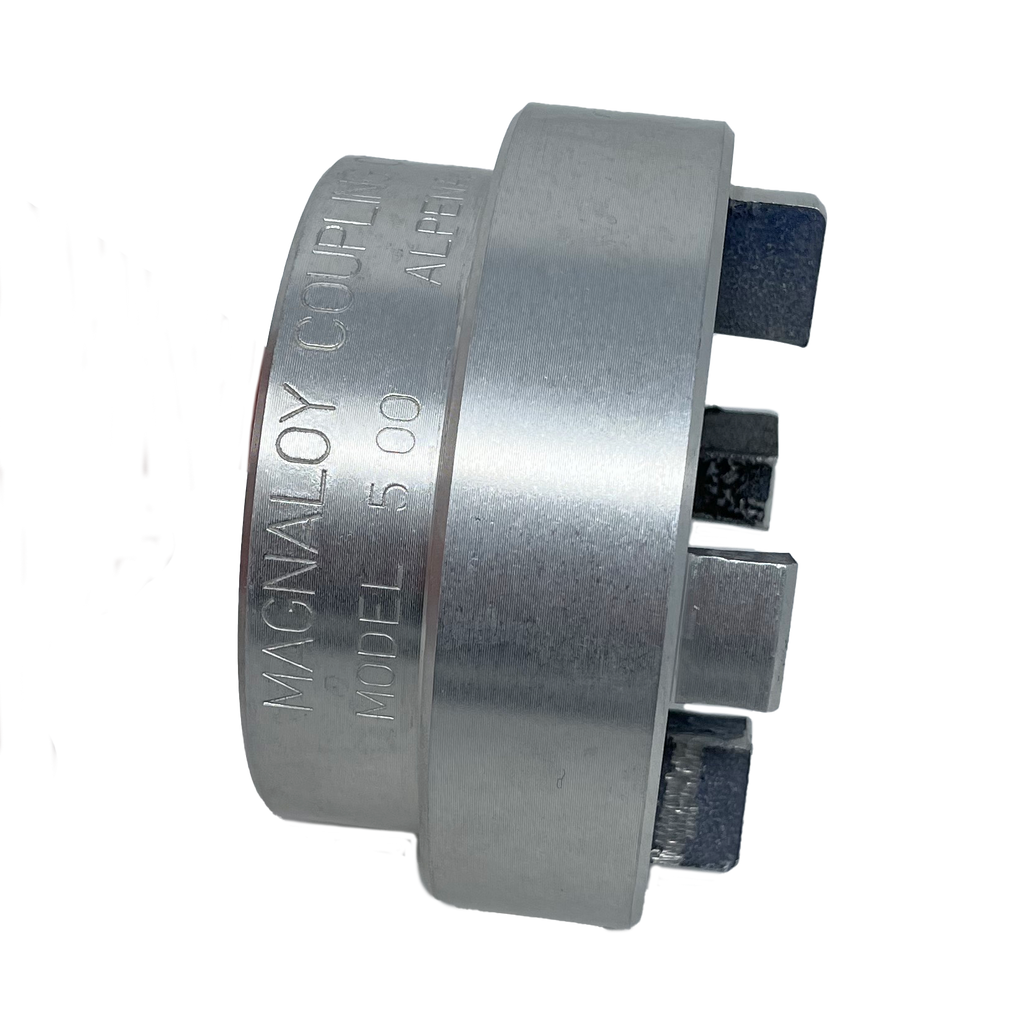

500 1-5/8BX3/8K : Magnaloy 500 HUB 1-5/8 BORE X 3/8 KEY W/CLAMP, M50012012C
500 1-5/8BX3/8K : Magnaloy 500 HUB 1-5/8 BORE X 3/8 KEY W/CLAMP, M50012012C
Roll over image to zoom in Click on image to zoom
500 1-5/8BX3/8K : Magnaloy 500 HUB 1-5/8 BORE X 3/8 KEY W/CLAMP, M50012012C500 1-5/8BX3/8K : Magnaloy 500 HUB 1-5/8 BORE X 3/8 KEY W/CLAMP, M50012012C

500 1-5/8BX3/8K : Magnaloy 500 HUB 1-5/8 BORE X 3/8 KEY W/CLAMP, M50012012C

Save $28.01
MagnaloySKU: M50012012C
1-3 Days
Price:
$96.99 $125.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 1.625 (1-5/8")
Country of Manufacture United States
Height 4.8
Length 2.27
Width 4.8
Weight 4

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M50010208S 500 1-1/16BX1/4K : Magnaloy 500 HUB 1-1/16" BORE X 1/4" KEY SPECIAL 500 Keyed 1.0625 (1-1/16") 0.25 (1/4") 1-3 Days $79.99
M50010206S 500 1-1/16BX3/16K : Magnaloy 500 HUB 1-1/16" BORE X 3/16" KEY SPECIAL 500 Keyed 1.0625 (1-1/16") 0.1875 (3/16") 1-3 Days $79.99
M50011616S 500 1-1/2BX1/2K : Magnaloy 500 HUB 1-1/2" BORE X 1/2" KEY SPECIAL 500 Keyed 1.5 (1-1/2") 0.5 (1/2") 1-3 Days $79.99
M50011608S 500 1-1/2BX1/4K : Magnaloy 500 HUB 1-1/2" BORE X 1/4" KEY SPECIAL 500 Keyed 1.5 (1-1/2") 0.25 (1/4") 1-3 Days $79.99
M50011606SDSS 500 1-1/2BX3/16K : Magnaloy 500 HUB 1-1/2" BORE X 3/16" KEY SPECIAL W/DBL SET SCREW 500 Keyed 1.5 (1-1/2") 0.1875 (3/16") 7-10 Days $82.99
M50011606S 500 1-1/2BX3/16K : Magnaloy 500 HUB 1-1/2" BORE X 3/16" KEY SPECIAL 500 Keyed 1.5 (1-1/2") 0.1875 (3/16") 1-3 Days $79.99
M50011612-NYLOC 500 1-1/2BX3/8K : Magnaloy 500 HUB 1-1/2" BORE X 3/8" KEY W/ LIQUID NYLOC ON THE SET SCREW 500 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $64.99
M50011612DSS45 500 1-1/2BX3/8K : Magnaloy 500 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW AT 45DEG 500 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $66.99
M50011612DSS 500 1-1/2BX3/8K : Magnaloy 500 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW 500 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $66.99
M50011612CDSS 500 1-1/2BX3/8K : Magnaloy 500 HUB 1-1/2" BORE X 3/8" KEY W/CLAMP & DBL SET SCREW 500 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $99.99
M50011612C 500 1-1/2BX3/8K : Magnaloy 500 HUB 1-1/2" BORE X 3/8" KEY W/CLAMP 500 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $96.99
M50011612 500 1-1/2BX3/8K : Magnaloy 500 HUB 1-1/2" BORE X 3/8" KEY 500 Keyed 1.5 (1-1/2") 0.375 (3/8") Same Day $62.99
M50011610C 500 1-1/2BX5/16K : Magnaloy 500 HUB 1-1/2" BORE X 5/16" KEY CLAMP 500 Keyed 1.5 (1-1/2") 0.3125 (5/16") 1-3 Days $96.99
M50011610DSS 500 1-1/2BX5/16K : Magnaloy 500 HUB 1-1/2" BORE X 5/16" KEY W/DBL SET SCREW 500 Keyed 1.5 (1-1/2") 0.3125 (5/16") 7-10 Days $66.99
M50011610DSS45 500 1-1/2BX5/16K : Magnaloy 500 HUB 1-1/2" BORE X 5/16" KEY W/DBL SET SCREW @ 45 DG 500 Keyed 1.5 (1-1/2") 0.3125 (5/16") 7-10 Days $66.99
M50011610 500 1-1/2BX5/16K : Magnaloy 500 HUB 1-1/2" BORE X 5/16" KEY 500 Keyed 1.5 (1-1/2") 0.3125 (5/16") 1-3 Days $62.99
M50011614S 500 1-1/2BX7/16K : Magnaloy 500 HUB 1-1/2" BORE X 7/16" KEY SPECIAL 500 Keyed 1.5 (1-1/2") 0.4375 (7/16") 1-3 Days $79.99
M500116N 500 1-1/2BXNOK : Magnaloy 500 HUB 1-1/2" BORE X NO KEY 500 Keyed 1.5 (1-1/2") NONE 1-3 Days $79.99
M50010816S 500 1-1/4BX1/2K : Magnaloy 500 HUB 1-1/4" BORE X 1/2" KEY SPECIAL 500 Keyed 1.25 (1-1/4") 0.5 (1/2") 1-3 Days $79.99
M50010808DSS45 500 1-1/4BX1/4K : Magnaloy 500 HUB 1-1/4" BORE X 1/4" KEY DBL SET SCREW AT 45DEG 500 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $66.99
M50010808DSS 500 1-1/4BX1/4K : Magnaloy 500 HUB 1-1/4" BORE X 1/4" KEY DBL SET SCREW 500 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $66.99
M50010808C 500 1-1/4BX1/4K : Magnaloy 500 HUB 1-1/4" BORE X 1/4" KEY W/CLAMP 500 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $96.99
M50010808 500 1-1/4BX1/4K : Magnaloy 500 HUB 1-1/4" BORE X 1/4" KEY 500 Keyed 1.25 (1-1/4") 0.25 (1/4") Same Day $62.99
M500108M10S 500 1-1/4BX10MMK : Magnaloy 500 HUB 1-1/4" BORE X 10MM KEY SPECIAL 500 Keyed 1.25 (1-1/4") 10mm 1-3 Days $95.99
M50010806S 500 1-1/4BX3/16K : Magnaloy 500 HUB 1-1/4" BORE X 3/16" KEY SPECIAL 500 Keyed 1.25 (1-1/4") 0.1875 (3/16") 1-3 Days $79.99
M50010812SC 500 1-1/4BX3/8K : Magnaloy 500 HUB 1-1/4" BORE X 3/8" KEY SPECIAL W/CLAMP 500 Keyed 1.25 (1-1/4") 0.375 (3/8") 1-3 Days $109.99
M50010812S 500 1-1/4BX3/8K : Magnaloy 500 HUB 1-1/4" BORE X 3/8" KEY SPECIAL 500 Keyed 1.25 (1-1/4") 0.375 (3/8") 1-3 Days $79.99
M50010810DSS 500 1-1/4BX5/16K : Magnaloy 500 HUB 1-1/4" BORE X 5/16" KEY DBL SET SCREW 500 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $66.99
M50010810C 500 1-1/4BX5/16K : Magnaloy 500 HUB 1-1/4" BORE X 5/16" KEY W/CLAMP 500 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $96.99
M50010810 500 1-1/4BX5/16K : Magnaloy 500 HUB 1-1/4" BORE X 5/16" KEY 500 Keyed 1.25 (1-1/4") 0.3125 (5/16") Same Day $62.99
M50010810DSS45 500 1-1/4BX5/16K' : Magnaloy 500 HUB 1-1/4" BORE X 5/16" KEY DBL SET SCREW @45' 500 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $66.99
M50010805S 500 1-1/4BX5/32K : Magnaloy 500 HUB 1-1/4" BORE X 5/32" KEY SPECIAL 500 Keyed 1.25 (1-1/4") 0.15625 (5/32") 1-3 Days $79.99
M50010820S 500 1-1/4BX5/8K : Magnaloy 500 HUB 1-1/4" BORE X 5/8" KEY SPECIAL NONRETU 500 Keyed 1.25 (1-1/4") 0.625 (5/8") 1-3 Days $95.99
M50010814S 500 1-1/4BX7/16K : Magnaloy 500 HUB 1-1/4" BORE X 7/16" KEY SPECIAL 500 Keyed 1.25 (1-1/4") 0.4375 (7/16") 1-3 Days $79.99
M500108N 500 1-1/4BXNOK : Magnaloy 500 HUB 1-1/4" BORE X NO KEY 500 Keyed 1.25 (1-1/4") NONE 1-3 Days $79.99
M50010410SDSS 500 1-1/8 X 5/16K : Magnaloy 500 HUB 1-1/8" X 5/16" KEY SPECIAL W/DBL SET SCREW 500 Keyed 1.125 (1-1/8") 0.3125 (5/16") 7-10 Days $82.99
M50010416S 500 1-1/8BX1/2K : Magnaloy 500 HUB 1-1/8" BORE X 1/2" KEY SPECIAL 500 Keyed 1.125 (1-1/8") 0.5 (1/2") 1-3 Days $79.99
M50010408SDSS 500 1-1/8BX1/4 : Magnaloy 500 HUB 1-1/8" BORE X 1/4" DBL SET SCREW W/SPECIAL KW DEM 500 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $66.99
M50010408DSS45 500 1-1/8BX1/4K : Magnaloy 500 HUB 1-1/8" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 500 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $66.99
M50010408DSS 500 1-1/8BX1/4K : Magnaloy 500 HUB 1-1/8" BORE X 1/4" KEY W/DBL SET SCREW 500 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $66.99
M50010408C 500 1-1/8BX1/4K : Magnaloy 500 HUB 1-1/8" BORE X 1/4" KEY W/CLAMP 500 Keyed 1.125 (1-1/8") 0.25 (1/4") 1-3 Days $96.99
M50010408 500 1-1/8BX1/4K : Magnaloy 500 HUB 1-1/8" BORE X 1/4" KEY 500 Keyed 1.125 (1-1/8") 0.25 (1/4") Same Day $62.99
M50010406S 500 1-1/8BX3/16K : Magnaloy 500 HUB 1-1/8" BORE X 3/16" KEY SPECIAL 500 Keyed 1.125 (1-1/8") 0.1875 (3/16") 1-3 Days $79.99
M50010412S 500 1-1/8BX3/8K : Magnaloy 500 HUB 1-1/8" BORE X 3/8" KEY SPECIAL 500 Keyed 1.125 (1-1/8") 0.375 (3/8") 1-3 Days $79.99
M50010410SC 500 1-1/8BX5/16K : Magnaloy 500 HUB 1-1/8" BORE X 5/16" KEY SPECIAL W/CLAMP 500 Keyed 1.125 (1-1/8") 0.3125 (5/16") 1-3 Days $109.99
M50010410S 500 1-1/8BX5/16K : Magnaloy 500 HUB 1-1/8" BORE X 5/16" KEY SPECIAL 500 Keyed 1.125 (1-1/8") 0.3125 (5/16") 1-3 Days $79.99
M500104N 500 1-1/8BXNOK : Magnaloy 500 HUB 1-1/8" BORE X NO KEY 500 Keyed 1.125 (1-1/8") NONE 1-3 Days $79.99
M50012216S 500 1-11/16BX1/2K : Magnaloy 500 HUB 1-11/16" BORE X 1/2" KEY SPECIAL 500 Keyed 1.6875 (1-11/16") 0.5 (1/2") 1-3 Days $79.99
M50012212SDSS 500 1-11/16BX3/8K : Magnaloy 500 HUB 1-11/16" BORE X 3/8" KEY SPECIAL, DBL SET SCREW 500 Keyed 1.6875 (1-11/16") 0.375 (3/8") 7-10 Days $82.99
M50012212S 500 1-11/16BX3/8K : Magnaloy 500 HUB 1-11/16" BORE X 3/8" KEY SPECIAL 500 Keyed 1.6875 (1-11/16") 0.375 (3/8") 1-3 Days $79.99
