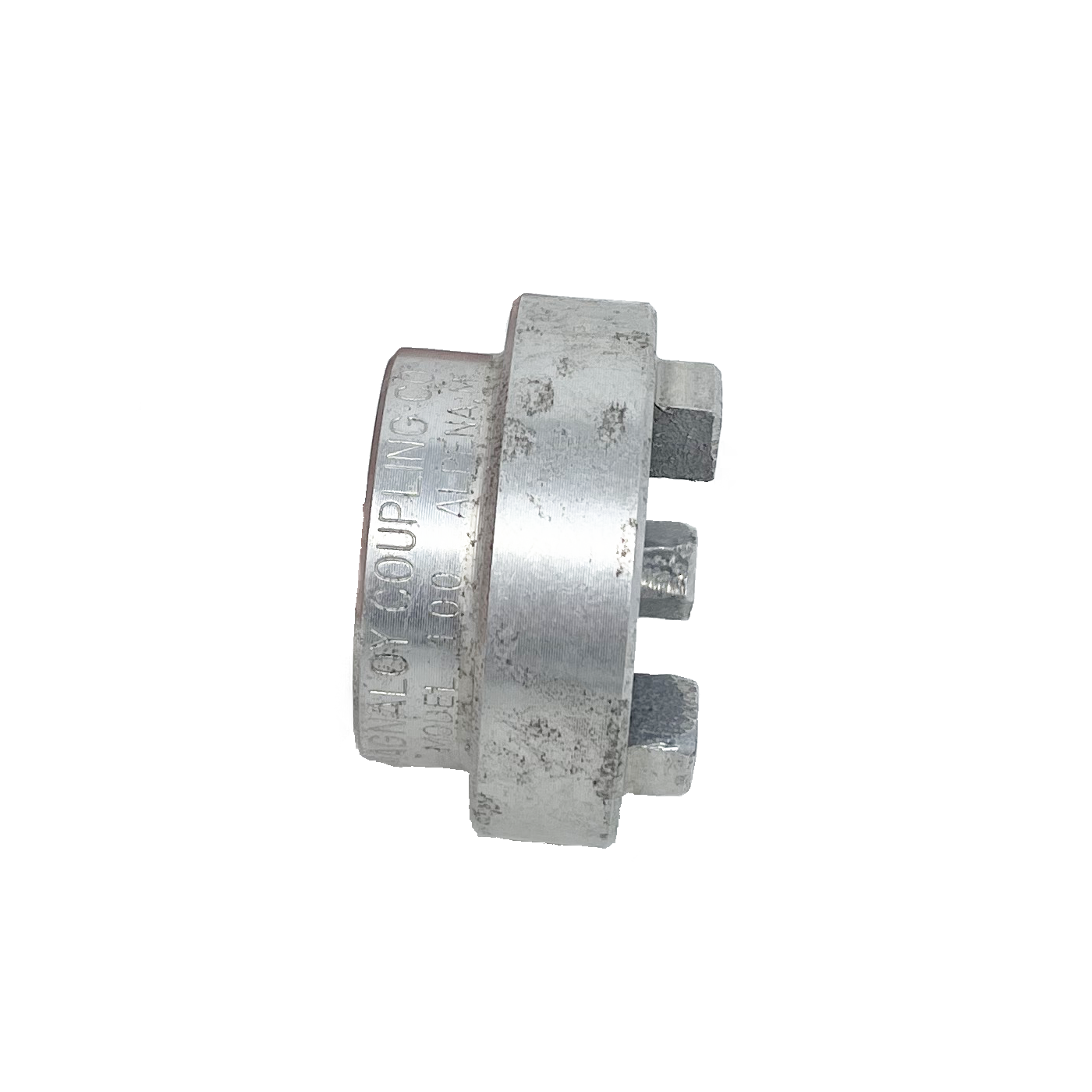

700 NO BORE : Magnaloy 700 HUB NO BORE, M700R
700 NO BORE : Magnaloy 700 HUB NO BORE, M700R
Roll over image to zoom in Click on image to zoom
700 NO BORE : Magnaloy 700 HUB NO BORE, M700R700 NO BORE : Magnaloy 700 HUB NO BORE, M700R

700 NO BORE : Magnaloy 700 HUB NO BORE, M700R

Save $26.01
MagnaloySKU: M700R
1-3 Days
Price:
$143.99 $170.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size NONE
Country of Manufacture United States
Height 6.9
Length 3.4
Width 6.9
Weight 12

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M70011616S 700 1-1/2BX1/2K : Magnaloy 700 HUB 1-1/2" BORE X 1/2" KEY SPECIAL 700 Keyed 1.5 (1-1/2") 0.5 (1/2") 1-3 Days $186.99
M70011608S 700 1-1/2BX1/4K : Magnaloy 700 HUB 1-1/2" BORE X 1/4" KEY SPECIAL 700 Keyed 1.5 (1-1/2") 0.25 (1/4") 1-3 Days $186.99
M70011612-NYLOC 700 1-1/2BX3/8K : Magnaloy 700 HUB 1-1/2" BORE X 3/8" KEY W/ LIQUID NYLOC ON THE SET SCREW 700 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $159.99
M70011612DSS45 700 1-1/2BX3/8K : Magnaloy 700 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW AT 45DEG 700 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $164.99
M70011612DSS 700 1-1/2BX3/8K : Magnaloy 700 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW 700 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $164.99
M70011612 700 1-1/2BX3/8K : Magnaloy 700 HUB 1-1/2" BORE X 3/8" KEY 700 Keyed 1.5 (1-1/2") 0.375 (3/8") 1-3 Days $157.99
M70011610S 700 1-1/2BX5/16K : Magnaloy 700 HUB 1-1/2" BORE X 5/16" KEY SPECIAL 700 Keyed 1.5 (1-1/2") 0.3125 (5/16") 1-3 Days $186.99
M70011610DSS45 700 1-1/2BX5/16KE : Magnaloy 700 HUB 1-1/2" BORE X 5/16" KEY W/DBL SET SCREW @ 45DEGE 700 Keyed 1.5 (1-1/2") 0.3125 (5/16") 7-10 Days $164.99
M70011614S 700 1-1/2BX7/16K : Magnaloy 700 HUB 1-1/2" BORE X 7/16" KEY SPECIAL 700 Keyed 1.5 (1-1/2") 0.4375 (7/16") 1-3 Days $186.99
M700116N 700 1-1/2BXNOK : Magnaloy 700 HUB 1-1/2" BORE X NO KEY SPECIAL. 700 Keyed 1.5 (1-1/2") NONE 1-3 Days $186.99
M70010816S 700 1-1/4BX1/2K : Magnaloy 700 HUB 1-1/4" BORE X 1/2" KEY SPECIAL 700 Keyed 1.25 (1-1/4") 0.5 (1/2") 1-3 Days $186.99
M70010808SC 700 1-1/4BX1/4K : Magnaloy 700 HUB 1-1/4" BORE X 1/4" KEY SPECIAL W/CLAMP 700 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $226.99
M70010808S 700 1-1/4BX1/4K : Magnaloy 700 HUB 1-1/4" BORE X 1/4" KEY SPECIAL 700 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $186.99
M700108M10S 700 1-1/4BX10MMK : Magnaloy 700 HUB 1-1/4" BORE X 10MM KEY SPECIAL 700 Keyed 1.25 (1-1/4") 10mm 1-3 Days $214.99
M70010812S 700 1-1/4BX3/8K : Magnaloy 700 HUB 1-1/4" BORE X 3/8" KEY SPECIAL 700 Keyed 1.25 (1-1/4") 0.375 (3/8") 1-3 Days $186.99
M70010810DSS 700 1-1/4BX5/16K : Magnaloy 700 HUB 1-1/4" BORE X 5/16" KEY DBL SET SCREW 700 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $164.99
M70010810DSS45 700 1-1/4BX5/16K : Magnaloy 700 HUB 1-1/4" BORE X 5/16" KEY DBL SET SCREW@45 DEG 700 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $164.99
M70010810C 700 1-1/4BX5/16K : Magnaloy 700 HUB 1-1/4" BORE X 5/16" KEY W/CLAMP 700 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $196.99
M70010810 700 1-1/4BX5/16K : Magnaloy 700 HUB 1-1/4" BORE X 5/16" KEY 700 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $157.99
M70010408S 700 1-1/8BX1/4K : Magnaloy 700 HUB 1-1/8" BORE X 1/4" KEY SPECIAL 700 Keyed 1.125 (1-1/8") 0.25 (1/4") 1-3 Days $186.99
M70010410S 700 1-1/8BX5/16K : Magnaloy 700 HUB 1-1/8" BORE X 5/16" KEY SPECIAL 700 Keyed 1.125 (1-1/8") 0.3125 (5/16") 1-3 Days $186.99
M70012212S 700 1-11/16BX3/8K : Magnaloy 700 HUB 1-11/16" BORE X 3/8" KEY SPECIAL 700 Keyed 1.6875 (1-11/16") 0.375 (3/8") 1-3 Days $186.99
M70013018SC 700 1-15/16B9/16K : Magnaloy 700 HUB 1-15/16" BORE 9/16" KEY SPECIAL W/CLAMP 700 Keyed 1.9375 (1-15/16") 0.5625 (9/16") 1-3 Days $226.99
M70013018S 700 1-15/16B9/16K : Magnaloy 700 HUB 1-15/16" BORE 9/16" KEY SPECIAL 700 Keyed 1.9375 (1-15/16") 0.5625 (9/16") 1-3 Days $186.99
M70013016S 700 1-15/16BX1/2K : Magnaloy 700 HUB 1-15/16" BORE X 1/2" KEY SPECIAL 700 Keyed 1.9375 (1-15/16") 0.5 (1/2") 1-3 Days $186.99
M70013016SC 700 1-15/16BX1/2K : Magnaloy 700 HUB 1-15/16" BORE X 1/2" KEY SPECIAL. W/CLAMP 700 Keyed 1.9375 (1-15/16") 0.5 (1/2") 1-3 Days $226.99
M70013016SDSS45 700 1-15/16BX1/2K : Magnaloy 700 HUB 1-15/16" BORE X 1/2" KEY SPECIAL W/DBL SET SCREW 45 700 Keyed 1.9375 (1-15/16") 0.5 (1/2") 7-10 Days $192.99
M70012516S 700 1-25/32MMBX1/2K : Magnaloy 700 HUB 1-25/32MM BORE X 1/2" KEY SPECIAL 700 Keyed 1.78125 (1-25/32") 0.5 (1/2") 1-3 Days $214.99
M70010608S 700 1-3/16BX1/4K : Magnaloy 700 HUB 1-3/16" BORE X 1/4" KEY SPECIAL 700 Keyed 1.1875 (1-3/16") 0.25 (1/4") 1-3 Days $186.99
M70012418S 700 1-3/4B9/16K : Magnaloy 700 HUB 1-3/4" BORE 9/16" KEY SPECIAL 700 Keyed 1.75 (1-3/4") 0.5625 (9/16") 1-3 Days $214.99
M70012416S 700 1-3/4BX1/2K : Magnaloy 700 HUB 1-3/4" BORE X 1/2" KEY SPECIAL 700 Keyed 1.75 (1-3/4") 0.5 (1/2") 1-3 Days $186.99
M70012416SDSS45 700 1-3/4BX1/2K : Magnaloy 700 HUB 1-3/4" BORE X 1/2" KEY SPECIAL W/DBL SET SCREW@45D 700 Keyed 1.75 (1-3/4") 0.5 (1/2") 7-10 Days $192.99
M70012412DSS45 700 1-3/4BX3/8K : Magnaloy 700 HUB 1-3/4" BORE X 3/8" KEY W/DBL SET SCREW AT 45DEG 700 Keyed 1.75 (1-3/4") 0.375 (3/8") 7-10 Days $164.99
M70012412DSS 700 1-3/4BX3/8K : Magnaloy 700 HUB 1-3/4" BORE X 3/8" KEY W/DBL SET SCREW 700 Keyed 1.75 (1-3/4") 0.375 (3/8") 7-10 Days $164.99
M70012412C 700 1-3/4BX3/8K : Magnaloy 700 HUB 1-3/4" BORE X 3/8" KEY W/CLAMP 700 Keyed 1.75 (1-3/4") 0.375 (3/8") 1-3 Days $196.99
M70012412 700 1-3/4BX3/8K : Magnaloy 700 HUB 1-3/4" BORE X 3/8" KEY 700 Keyed 1.75 (1-3/4") 0.375 (3/8") 1-3 Days $157.99
M70012410S 700 1-3/4BX5/16K : Magnaloy 700 HUB 1-3/4" BORE X 5/16" KEY SPECIAL 700 Keyed 1.75 (1-3/4") 0.3125 (5/16") 1-3 Days $186.99
M70012414DSS45 700 1-3/4BX7/16 : Magnaloy 700 HUB 1-3/4" BORE X7/16 W/DBL SET SCREW AT 45DEG 700 Keyed 1.75 (1-3/4") 0.4375 (7/16") 7-10 Days $164.99
M70012414DSS 700 1-3/4BX7/16 : Magnaloy 700 HUB 1-3/4" BORE X7/16 W/DBL SET SCREW 700 Keyed 1.75 (1-3/4") 0.4375 (7/16") 7-10 Days $164.99
M70012414C 700 1-3/4BX7/16K : Magnaloy 700 HUB 1-3/4" BORE X 7/16" KEY W/CLAMP 700 Keyed 1.75 (1-3/4") 0.4375 (7/16") 1-3 Days $196.99
M70012414 700 1-3/4BX7/16K : Magnaloy 700 HUB 1-3/4" BORE X 7/16" KEY 700 Keyed 1.75 (1-3/4") 0.4375 (7/16") 1-3 Days $157.99
M700124N 700 1-3/4BXNOK : Magnaloy 700 HUB 1-3/4" BORE X NO KEY SPECIAL 700 Keyed 1.75 (1-3/4") NONE 1-3 Days $186.99
M70011212S 700 1-3/8BX3/8K : Magnaloy 700 HUB 1-3/8" BORE X 3/8" KEY SPECIAL 700 Keyed 1.375 (1-3/8") 0.375 (3/8") 1-3 Days $186.99
M70011210DSS45 700 1-3/8BX5/16E : Magnaloy 700 HUB 1-3/8" BORE X 5/16" W/DBL SET SCREW @ 45DEGE 700 Keyed 1.375 (1-3/8") 0.3125 (5/16") 7-10 Days $164.99
M70011210DSS 700 1-3/8BX5/16K : Magnaloy 700 HUB 1-3/8" BORE X 5/16" KEY W/DBL SET SCREW 700 Keyed 1.375 (1-3/8") 0.3125 (5/16") 7-10 Days $164.99
M70011210 700 1-3/8BX5/16K : Magnaloy 700 HUB 1-3/8" BORE X 5/16" KEY 700 Keyed 1.375 (1-3/8") 0.3125 (5/16") 1-3 Days $157.99
M70013116SDSS 700 1-31/32BX1/2K : Magnaloy 700 HUB 1-31/32" BORE X 1/2" KEY SPECIAL W/DBL SET SCREW 700 Keyed 1.96875 (1-31/32") 0.5 (1/2") 7-10 Days $192.99
M70012012DSS45 700 1-5/8BX3/8K : Magnaloy 700 HUB 1-5/8" BORE X 3/8" KEY W/DBL SET SCREW AT 45DEG 700 Keyed 1.625 (1-5/8") 0.375 (3/8") 7-10 Days $164.99
M70012012C 700 1-5/8BX3/8K : Magnaloy 700 HUB 1-5/8" BORE X 3/8" KEY W/CLAMP 700 Keyed 1.625 (1-5/8") 0.375 (3/8") 1-3 Days $196.99
M70012012 700 1-5/8BX3/8K : Magnaloy 700 HUB 1-5/8" BORE X 3/8" KEY 700 Keyed 1.625 (1-5/8") 0.375 (3/8") 1-3 Days $157.99
