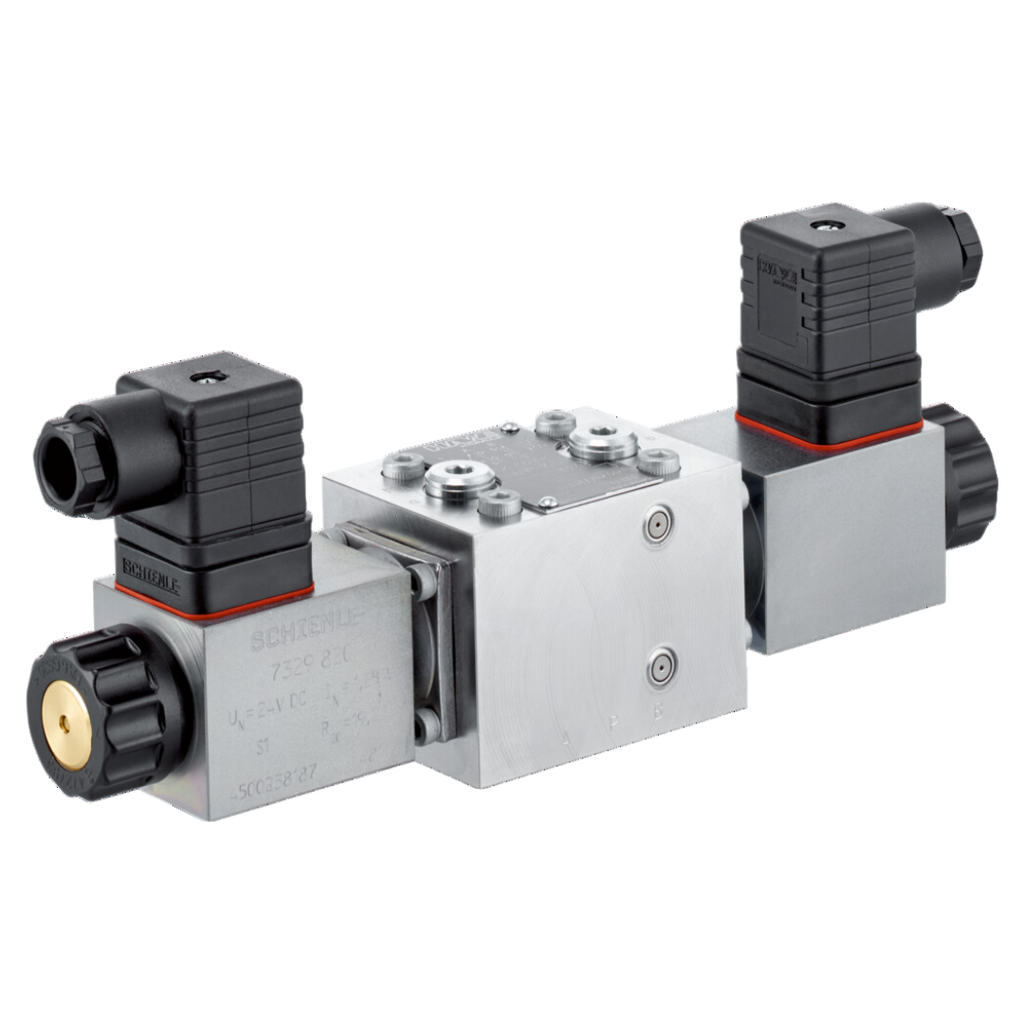

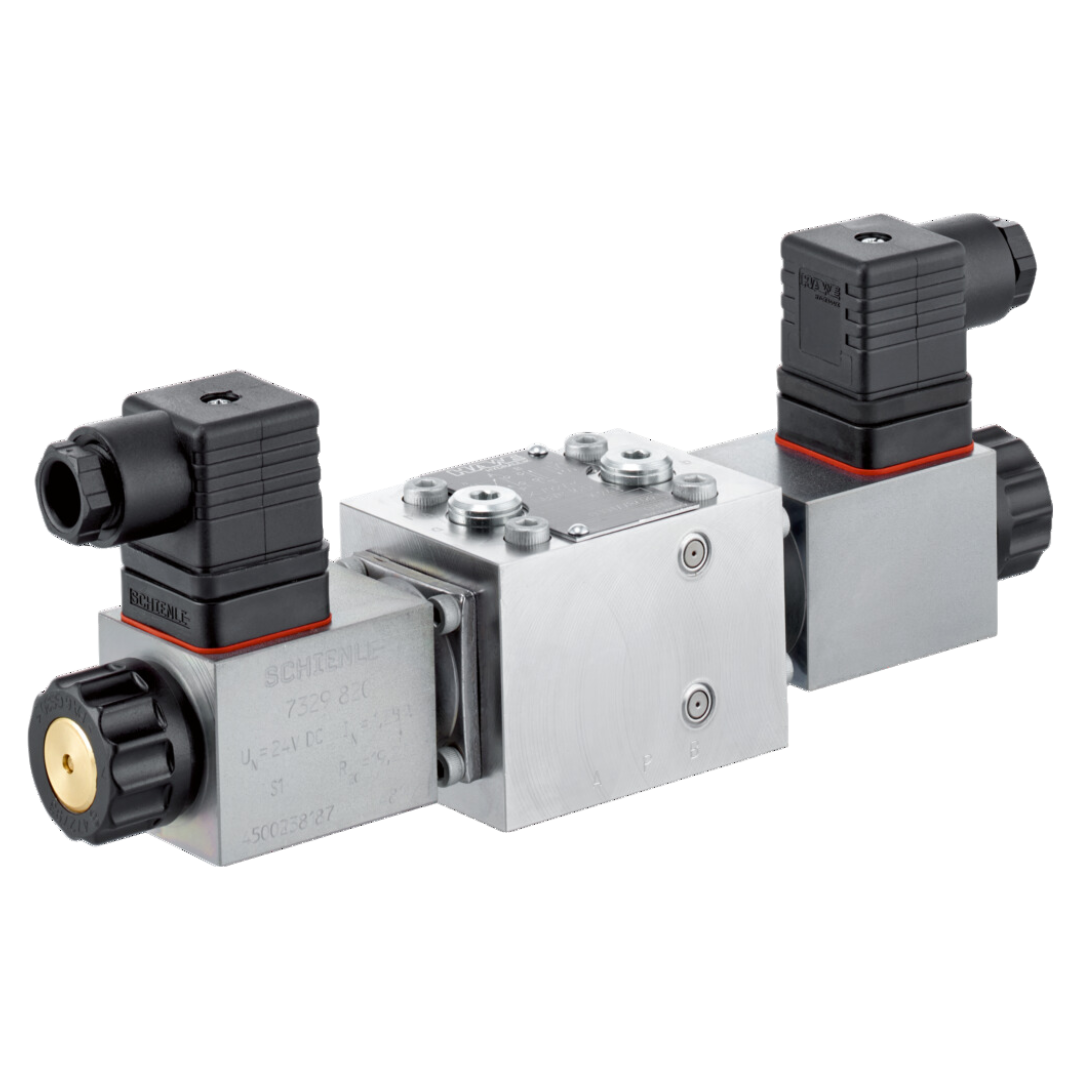

NBVP 16 G-GM 24 : Hawe Directional Poppet Valve, 5.28GPM, D03 (NG6), 3-Position,4-Way, All Ports Blocked, 24 VDC DIN Plug, 3625psi

Save $183.46
Hawe HydraulikSKU: 7501 0094-00.HW
5-7 Days

Price:
Sale price$904.99 Regular price$1,088.45

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 5-7 Days
Material Steel, zinc-nickel coated
Valve Type Directional Leak Free Poppet
Valve Interface D03 (NG6)
Flow Rating 5.28
Pressure Rating 3625
Operating Temp Range -40 to +176F
Voltage 24 VDC
Seal Material NBR
Actuation Type DIN Plug
Series NBVP 16 G
Spool Configuration All Ports Blocked
Positions 3-Position
Way 4-Way
Height 2
Length 9
Width 2

Description

Explore the Hawe NBVP Directional Seated Poppet Hydraulic Valve, tailored for manifold mounting with a standard connection pattern of nominal size NG 6. Available in 2/2-, 3/2-, 3/3-, 4/2-, 4/3-, and 4/4-way configurations, this valve offers versatile actuation options and cone-seated design for reliable performance. Benefit from optional position monitoring, partial notching versions, and compatibility with mounting pressure switches and gauges. With potential for explosion-proof versions and 8-watt solenoids, it caters to various applications including machine tools, clamping systems, testing machinery, and even wind turbines. Its adaptability extends to oil & gas equipment like riser/tensioner manifolds. Featuring gauge points for easy integration of test points, pressure gauges, transducers, or switches, it offers flexibility for additional functionalities. For enhanced functionality, the 4-way/3-position valves allow for exciting possibilities like shifting both coils and introducing a new 4th position such as a float option.
