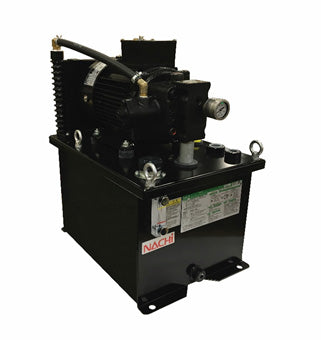

NSP-20-15V1A4-14U : Nachi NSP Series Compact Variable Pump Unit HPU, 20-Liter Tank, 2HP, 16cc Control, 796-1158psi, 220VAC, 60Hz, 3ph
Roll over image to zoom in Click on image to zoom
NSP-20-15V1A4-14U : Nachi NSP Series Compact Variable Pump Unit HPU, 20-Liter Tank, 2HP, 16cc Control, 796-1158psi, 220VAC, 60Hz, 3ph

NSP-20-15V1A4-14U : Nachi NSP Series Compact Variable Pump Unit HPU, 20-Liter Tank, 2HP, 16cc Control, 796-1158psi, 220VAC, 60Hz, 3ph

NachiSKU: NSP-20-15V1A4-14U
1-3 Days
6
Price:
$3,452.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 6
Factory Location Greenwood, Indiana
Horsepower 2 HP
Displacement 16cc
Voltage 220VAC, 60Hz, 3Ph
Pressure Range 796-1158psi
Reservoir Size 20-Liter
Weight 150

Description

The Nachi NSP Compact Power Units are widely used as a power source in such machine tool applications as NC lathe chuck opening and closing, tailstock, tool rotation, machining center spindle raise and lower operations, etc. During pressure holding, the new NSP power unit, consisting of Nachi's UVN variable volume vane uni-pump, enables machine efficiency that delivers energy savings of approximately 40% when compared with Nachi standard power units.
