Product Details
Data Sheet | Click here to download |
---|---|
Usually Ships Within | 1-2 Weeks |
Factory Location | Maumee, Ohio |
Port Size | 0.625 (5/8") ORB |
Type | Sleeve Retraction |
End Connections | Connect Under Pressure Not Allowed |
Pressure Rating | 4351 |
Series | Series: NV |
Operating Force | 18 lb |
Country of Manufacture | Country of Manufacture: Italy |
Height | 1.5 |
Length | 2.74 |
Width | 1.5 |
Weight | 0.74 |
Side 1 Gender | Female |
Side 1 Size | 0.5 (1/2") |

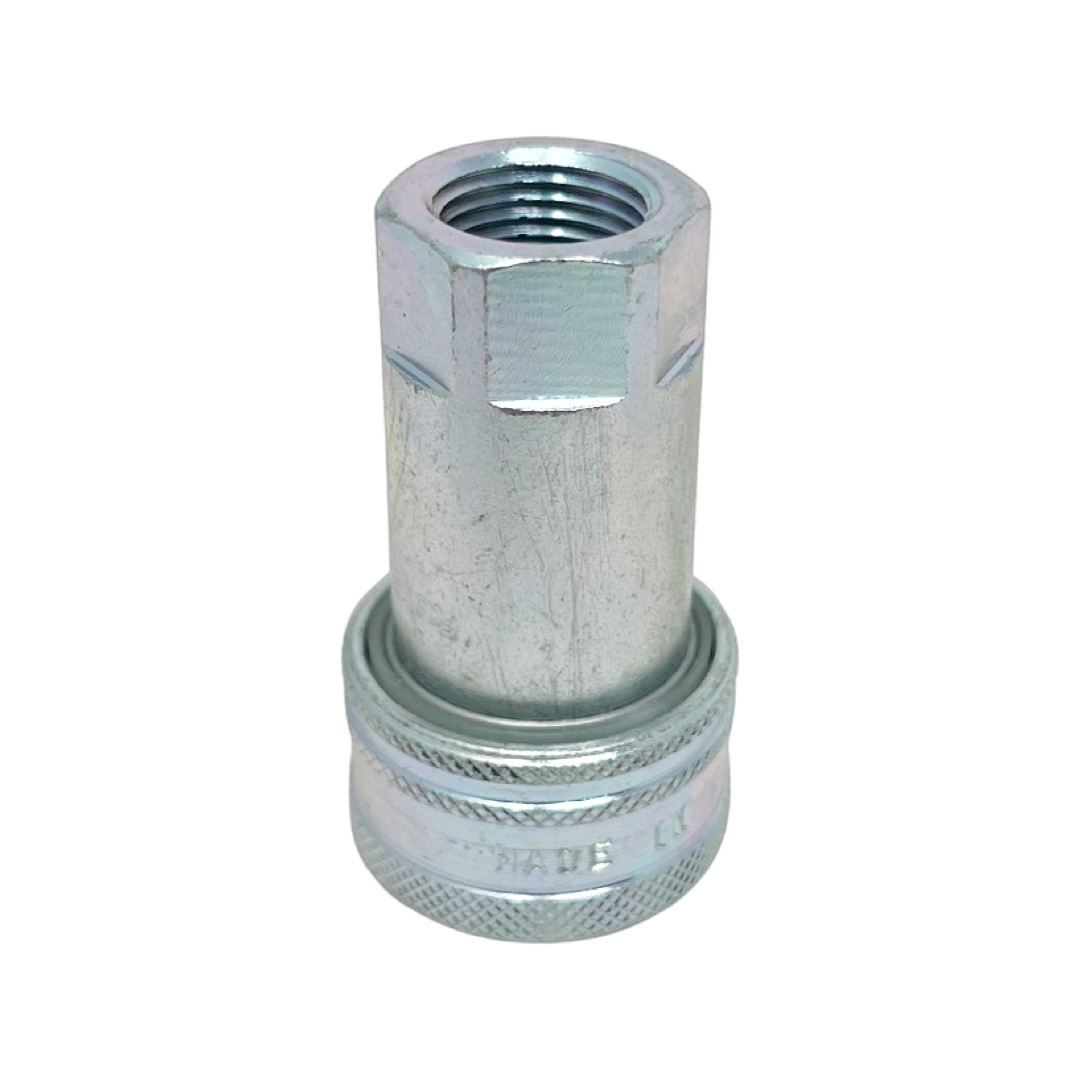

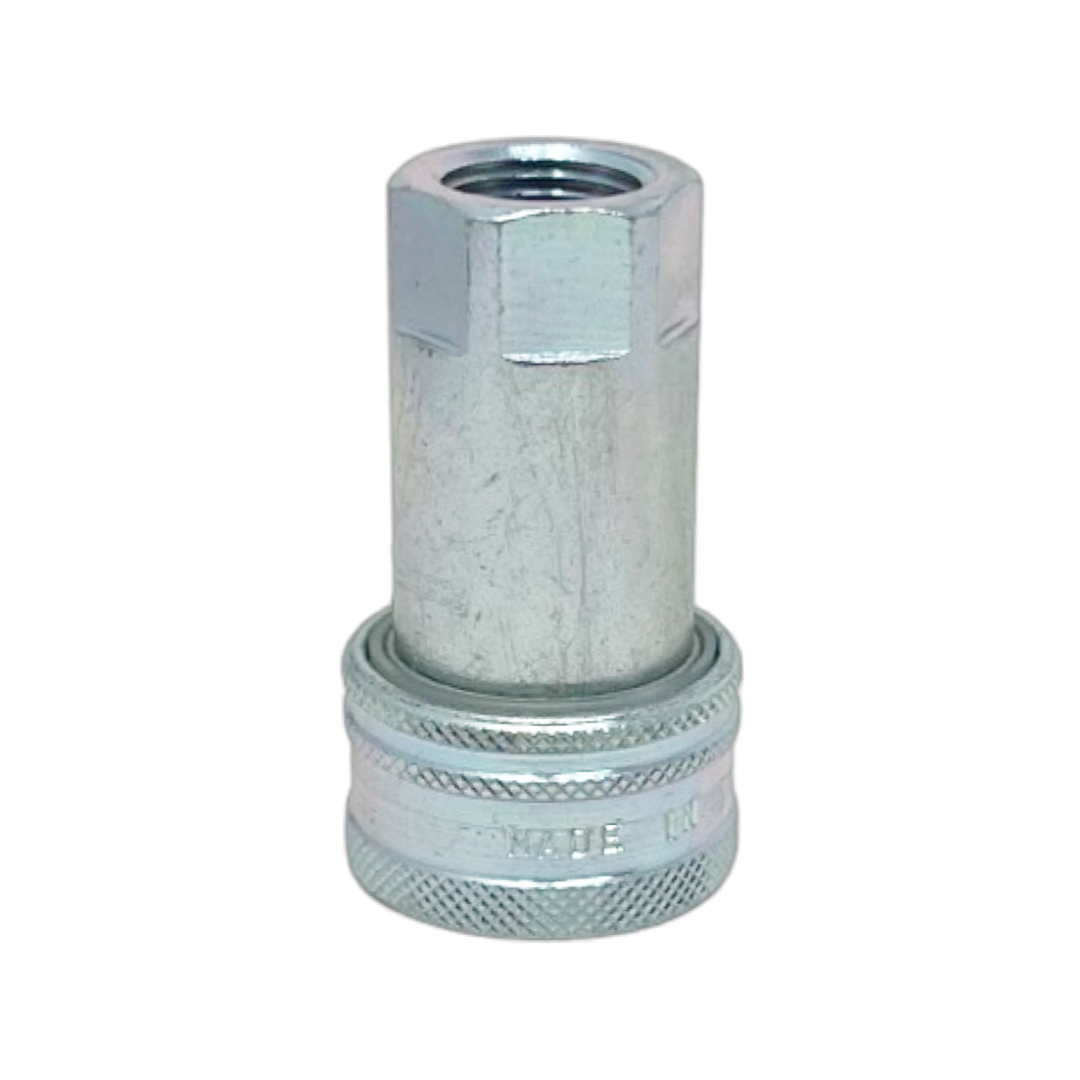

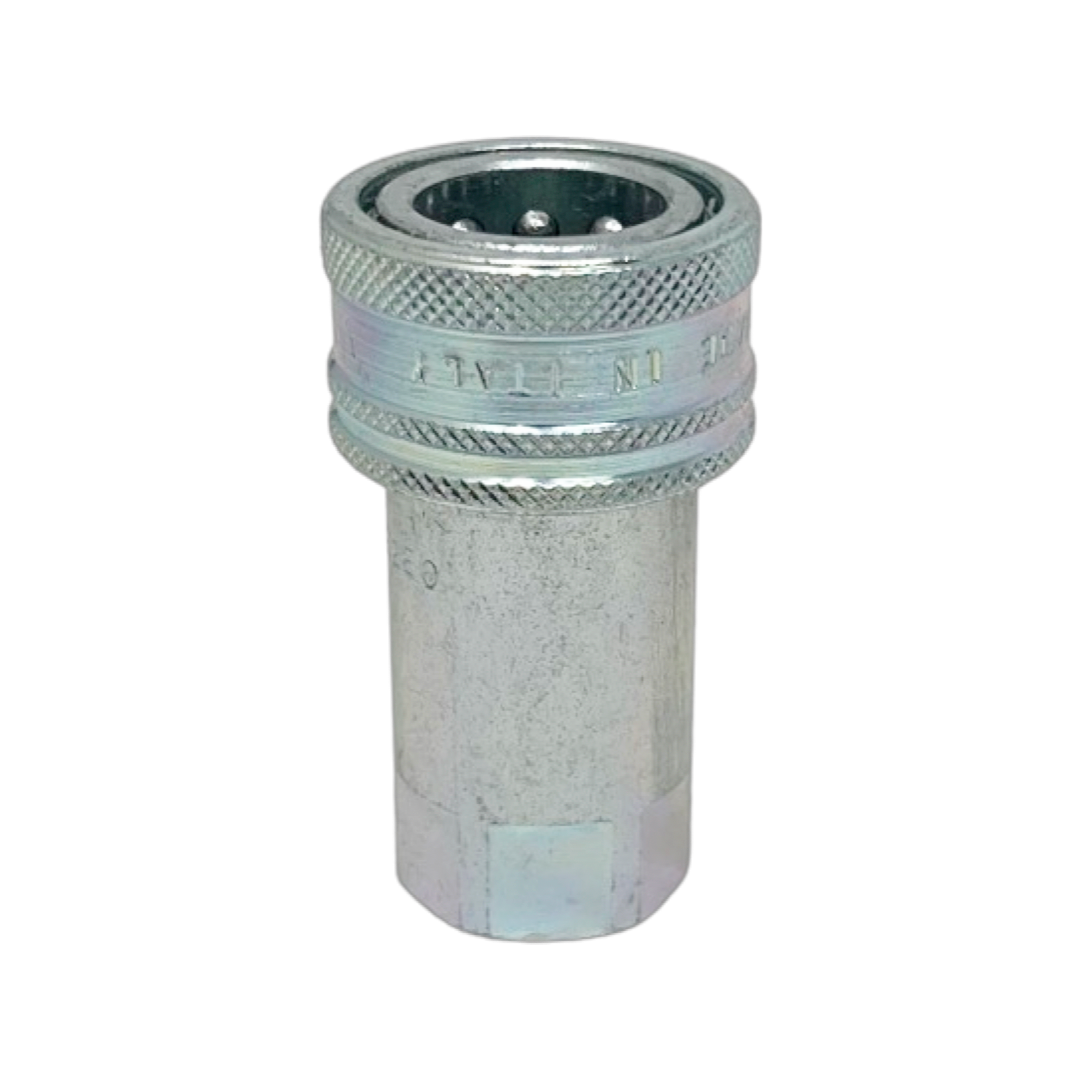

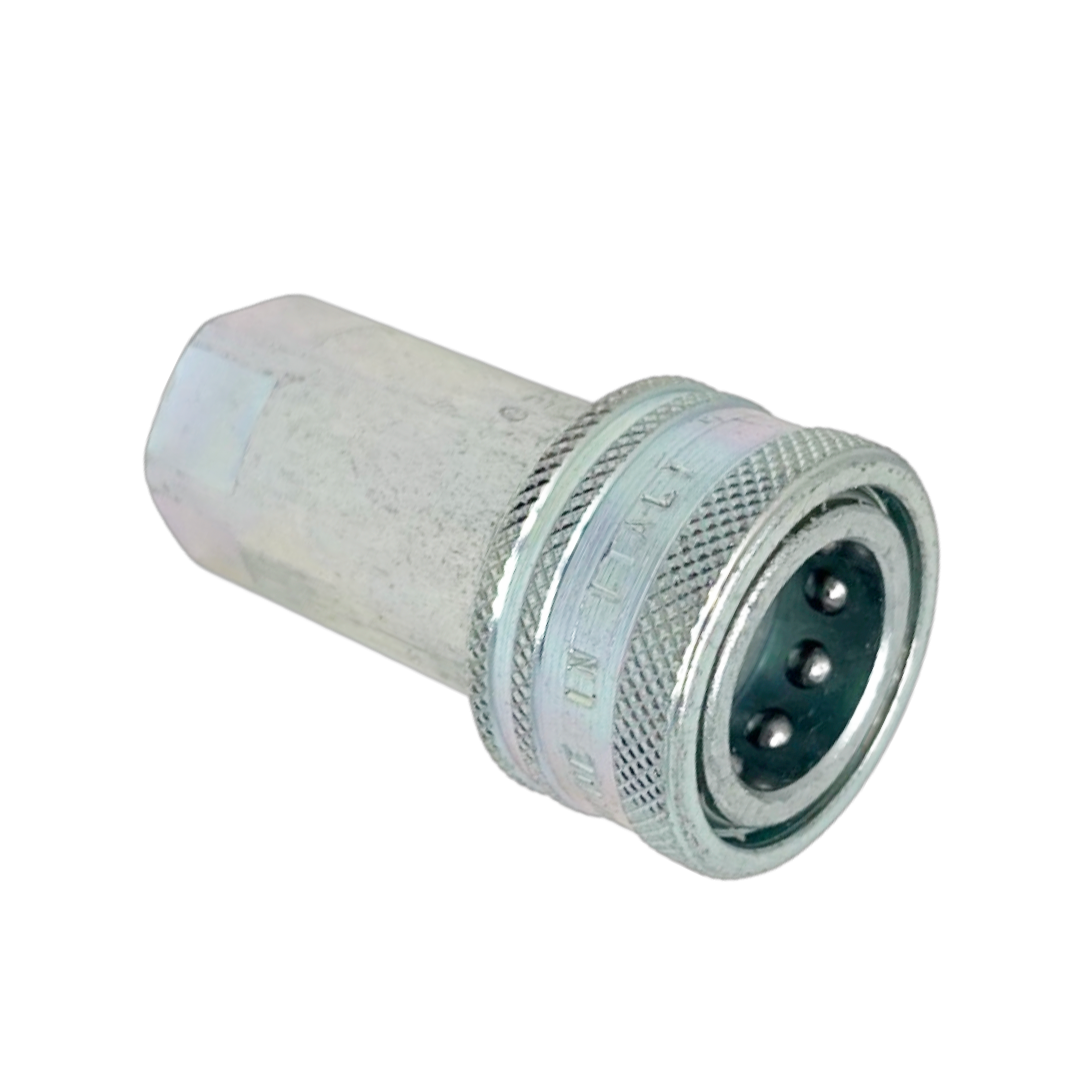

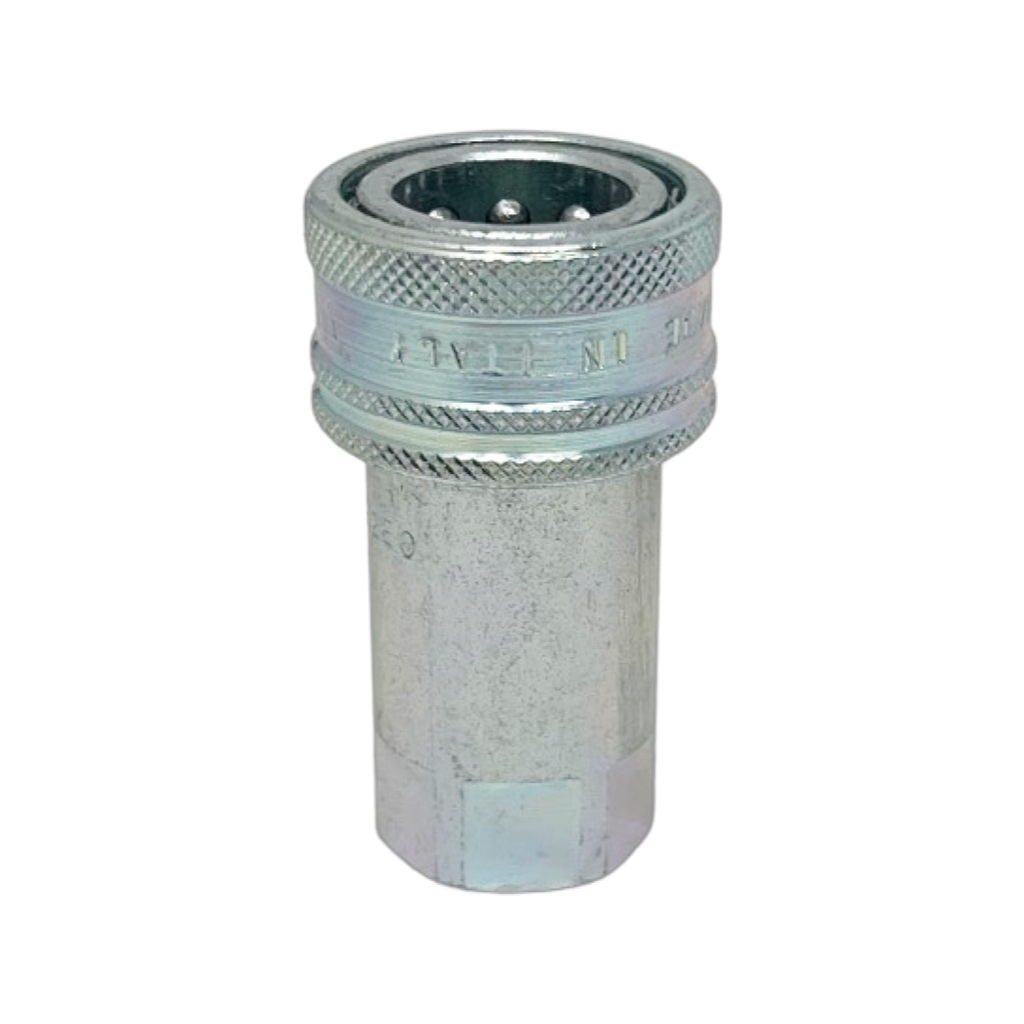

Description
Standard couplings for general purpose applications with poppet valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
