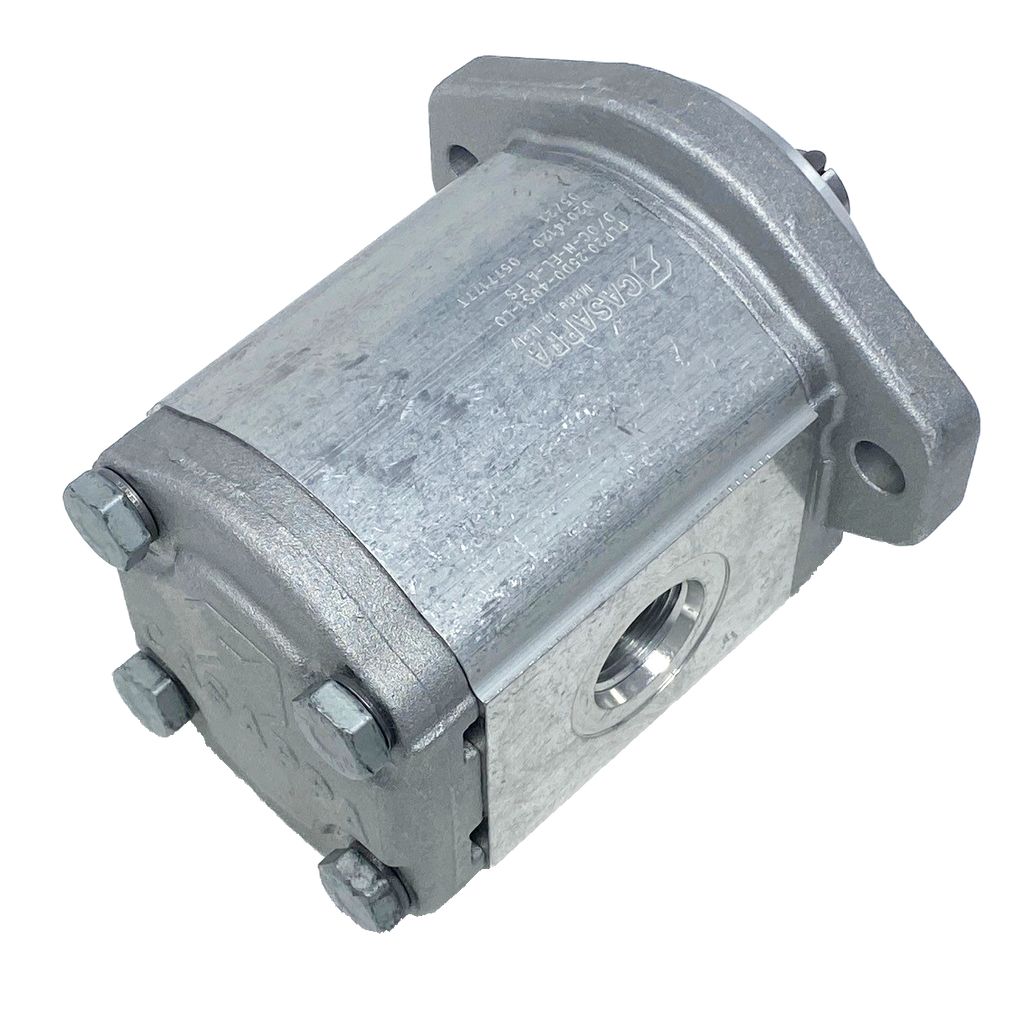

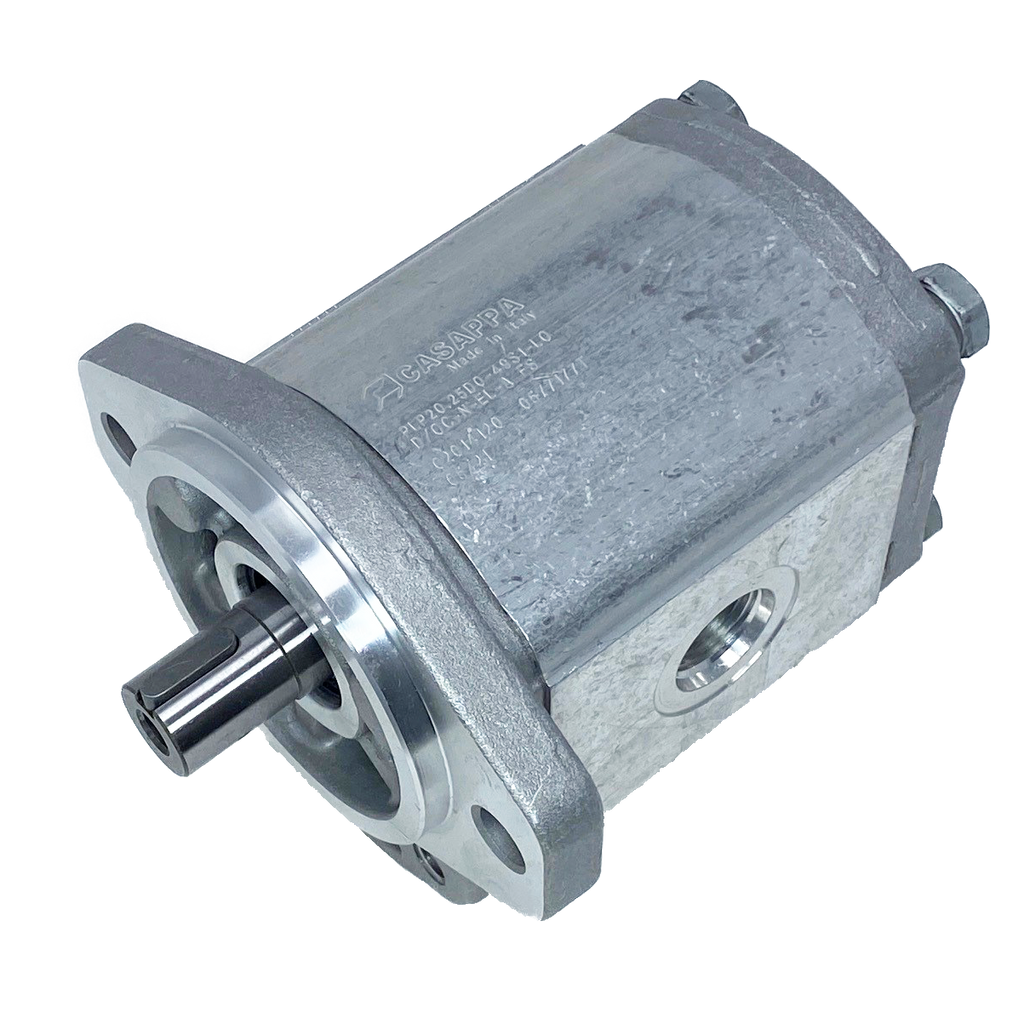

PHM20.25R0-50S9-LOC/OG-N-EL : Casappa Polaris Gear Motor, 26.42cc, 3335psi Rated, 3000RPM, Reversible Rear External Drain, 3/4" Bore x 3/16" Key Shaft, SAE A 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body, Aluminum Flange
PHM20.25R0-50S9-LOC/OG-N-EL : Casappa Polaris Gear Motor, 26.42cc, 3335psi Rated, 3000RPM, Reversible Rear External Drain, 3/4" Bore x 3/16" Key Shaft, SAE A 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body, Aluminum Flange
Roll over image to zoom in Click on image to zoom
PHM20.25R0-50S9-LOC/OG-N-EL : Casappa Polaris Gear Motor, 26.42cc, 3335psi Rated, 3000RPM, Reversible Rear External Drain, 3/4" Bore x 3/16" Key Shaft, SAE A 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body, Aluminum FlangePHM20.25R0-50S9-LOC/OG-N-EL : Casappa Polaris Gear Motor, 26.42cc, 3335psi Rated, 3000RPM, Reversible Rear External Drain, 3/4" Bore x 3/16" Key Shaft, SAE A 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body, Aluminum Flange

PHM20.25R0-50S9-LOC/OG-N-EL : Casappa Polaris Gear Motor, 26.42cc, 3335psi Rated, 3000RPM, Reversible Rear External Drain, 3/4" Bore x 3/16" Key Shaft, SAE A 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body, Aluminum Flange

Save $32.42
CasappaSKU: PHM20.25R0-50S9-LOC/OG-N-EL
20 Weeks
Price:
$615.99 $648.41

Product Details

Data Sheet Download Datasheet
Usually Ships Within 20 Weeks
Factory Location Batavia, IL
Material Cast Iron Body Aluminum Flange And Cover
Shaft Size 3/4" Bore x 3/16" Key
Shaft Type Keyed
Pressure Rating 3335
Rotation Reversible Rear External Drain
Displacement 26.42
Gpm At 1800 Rpm 12.56
Max Speed 3000
Inlet Port 0.625 (5/8") #10 SAE
Outlet Port 1.25" #20 SAE
Clamp Group Size Group 2 Motor
Port Orientation Side
Motor Pressure Rating 3335
Country of Manufacture Country of Manufacture: Italy
Height 4.5
Length 6.25
Width 5.13
Weight 13.64

Description

The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
