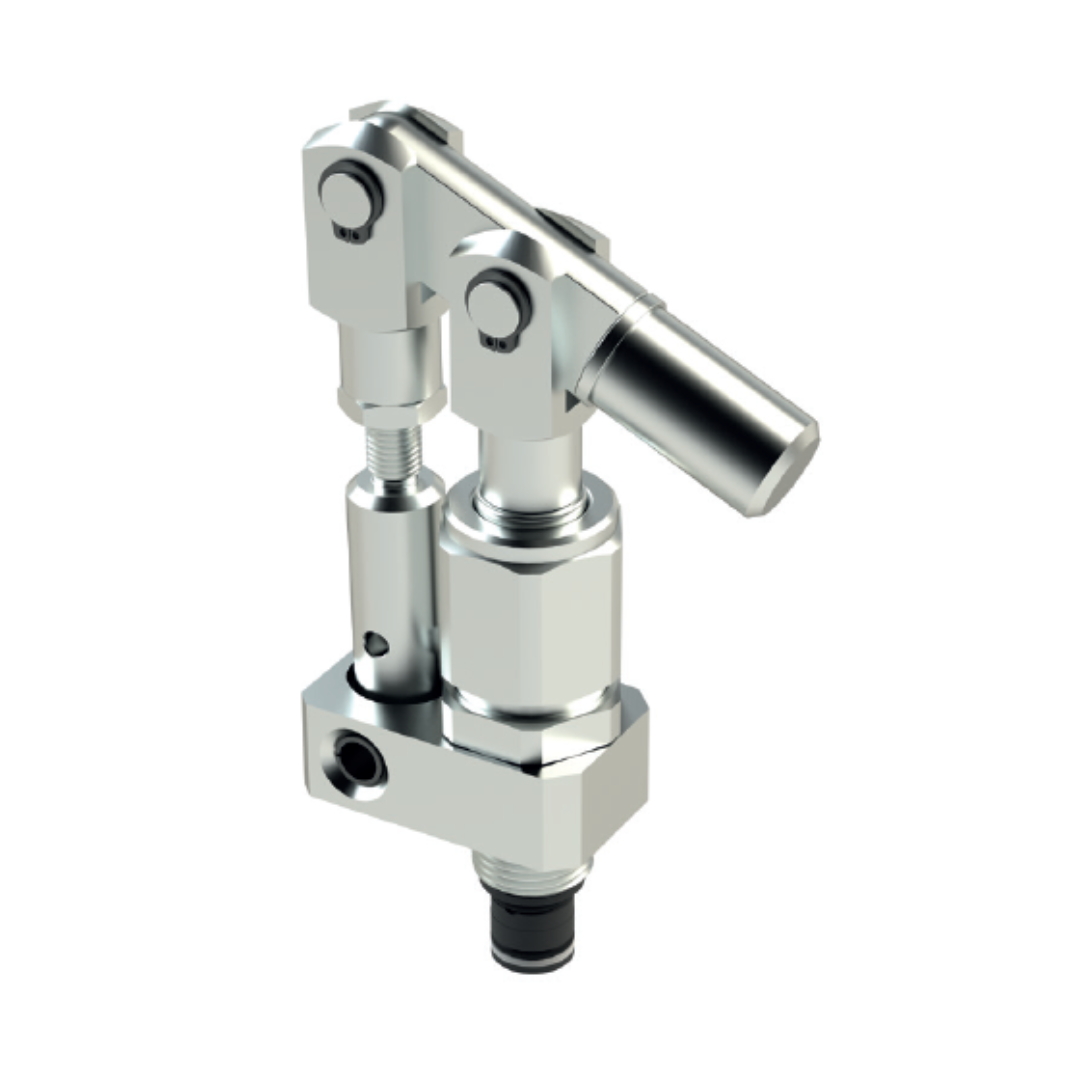

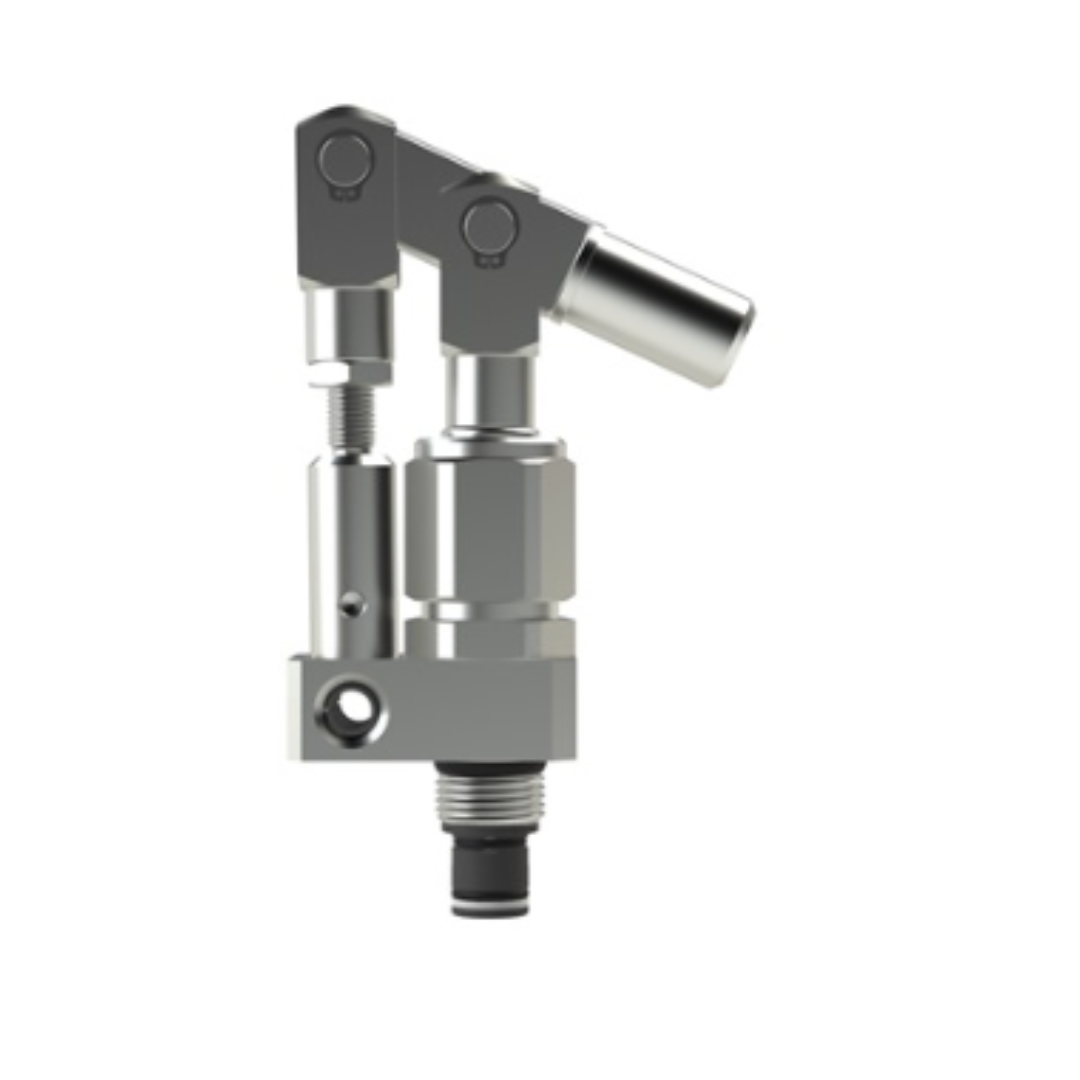

PME10 : Oleoweb Hand Pump for emergency acting, 10cc (0.6in3), 2900psi Rated, SAE10/2 Cavity (thread 7/8-14UNF) includes an acting lever 19.6" long

With the PME10 hand pump it is possible to manage emergency commands inside hydraulic circuits. The PME10 hand pump, available with 10 cc displacement, is an optimal solution for installation on hydraulic power units. Sized according to SAE standards, it can be housed inside a 2-way cavity, size SAE10. Thanks to the pumping element coupling connected with the cartridge, it is not necessary to provide further fixings to the installation plate. The maximum working pressure for the PME10 pump is 200 bar. The main body of the pump is made of steel and is protected against corrosion by galvanizing. The remaining components are made of high-strength steel or stainless steel. A 500 mm drive lever is supplied as standard with the pump.
