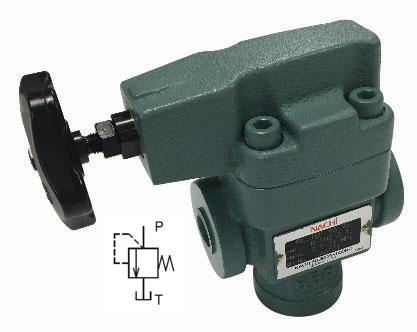

R-T06-1-E20 : Nachi Inline Balanced Piston Relief Valve, 45 GPM Rated, 3045psi Rated, Direct-Acting, 0 to 1000psi Adjustable Range, 3/4" NPT, Hand Screw Adjustment
Roll over image to zoom in Click on image to zoom
R-T06-1-E20 : Nachi Inline Balanced Piston Relief Valve, 45 GPM Rated, 3045psi Rated, Direct-Acting, 0 to 1000psi Adjustable Range, 3/4" NPT, Hand Screw Adjustment

R-T06-1-E20 : Nachi Inline Balanced Piston Relief Valve, 45 GPM Rated, 3045psi Rated, Direct-Acting, 0 to 1000psi Adjustable Range, 3/4" NPT, Hand Screw Adjustment

Save $58.01
NachiSKU: R-T06-1-E20
4-6 Weeks
Price:
$218.99 $277.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Greenwood, Indiana
Connection Size 3/4" NPT
Adjustment Type Hand Screw Adjustment
Flow Rating 45
Pressure Rating 3045
Pressure Range 0 to 1000psi

Description

Nachi Inline Balanced Piston Relief Valve, 45 GPM Rated, 3045psi Rated, Direct-Acting, 0 to 1000psi Adjustable Range, Hand Screw Adjustment.

The Nachi balanced piston inline relif valve is ideal for optimal pressure control in a hydraulic circuit for use as a safety valve. A Vent port enables remote control of pressure and use of an unloading circuit, and flows are available up to 100GPM
