Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 5-7 Days |
| Factory Stock | 9 |
| Factory Location | Louisville, Kentucky |
| Solid Model | |
| Service Manual | Click here to download |
| Port Size | 3/8" PTF |
| Pressure Rating | 300 |
| Operating Temp Range | -30 to 150 F |
| Gauge Connection | With Gauge |
| Body Material | Zinc |
| Seal Material | Nitrile rubber |
| Relief Option | Relieving |
| Outlet Pressure Range | 5 to 60psi |
| Bonnet | Acetal |
| Flow Scfm | 70 |
| Materials Of Construction | Zinc Body, Acetal Bonnet, Nitrile Elastomers, Acetal Bottom Plug, Polypropylene and TPV Valve |
| Regulator Series | R72G |
| Regulator Type | Excelon |
| Country of Manufacture | United Kingdom |
| Height | 2.25 |
| Length | 4.01 |
| Width | 1.5 |
| Weight | 1.36 |
Description

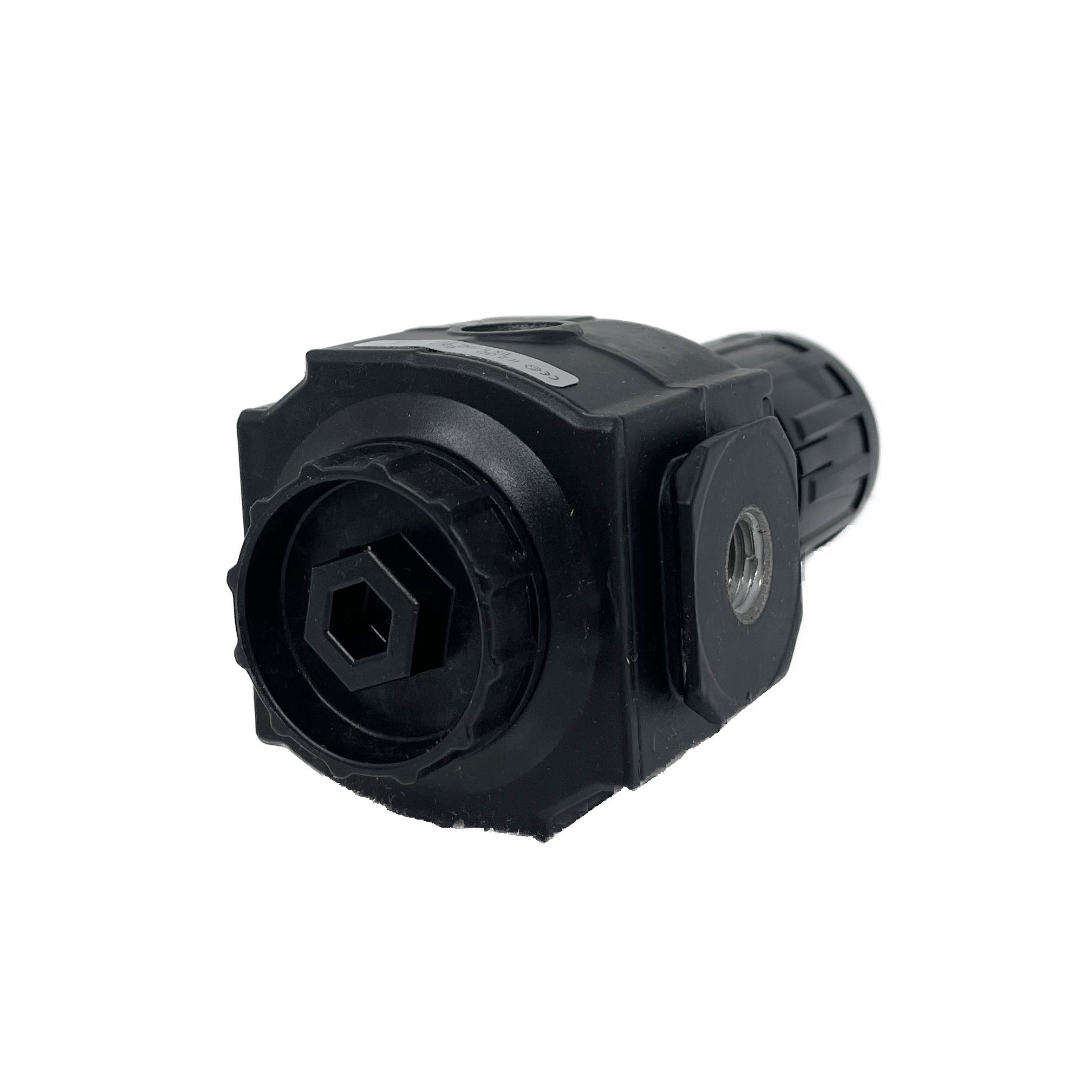

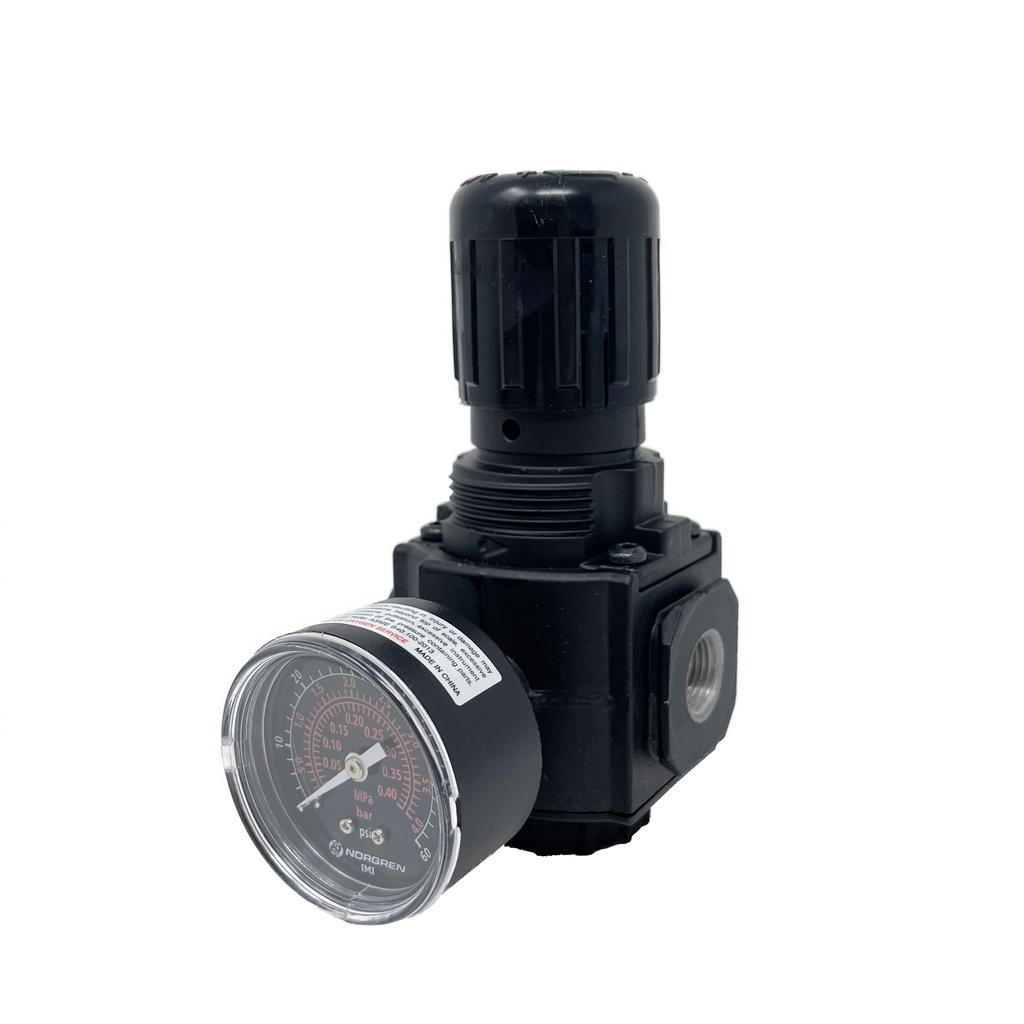

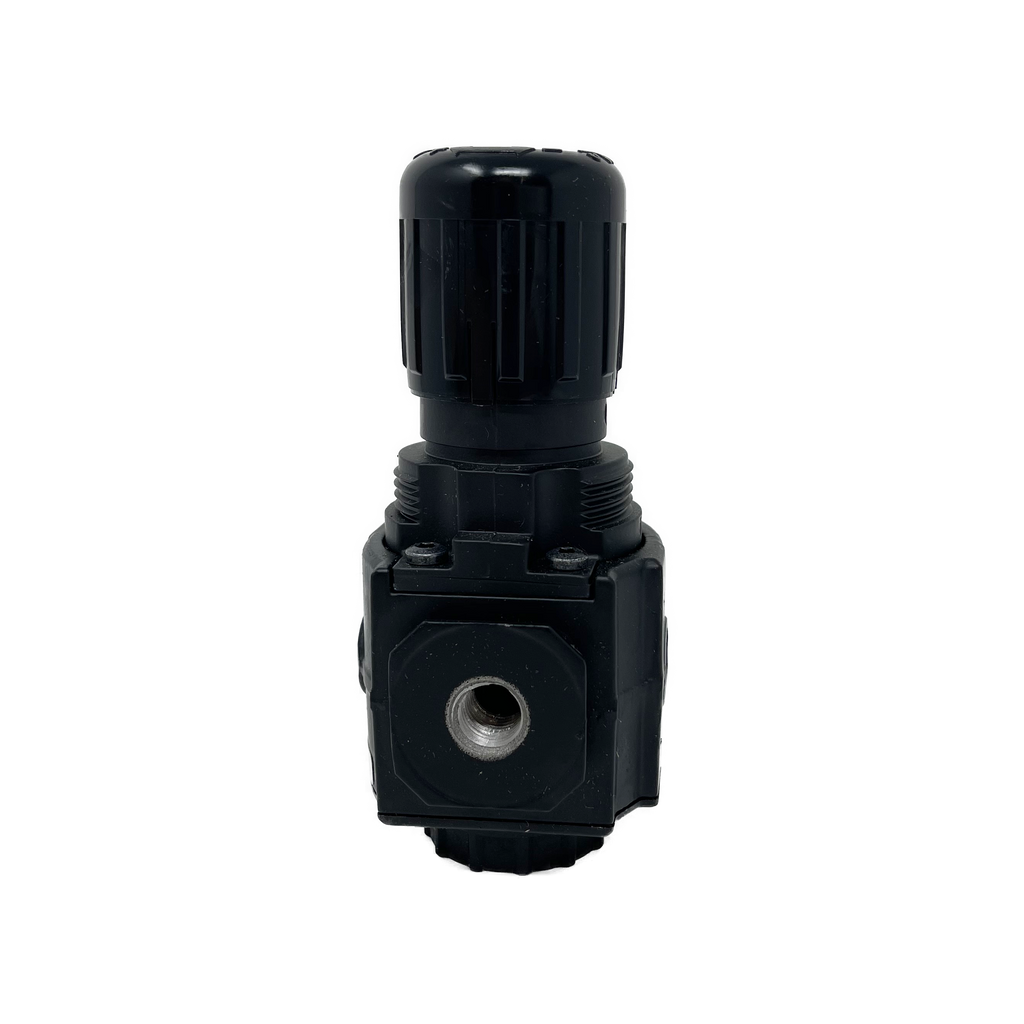

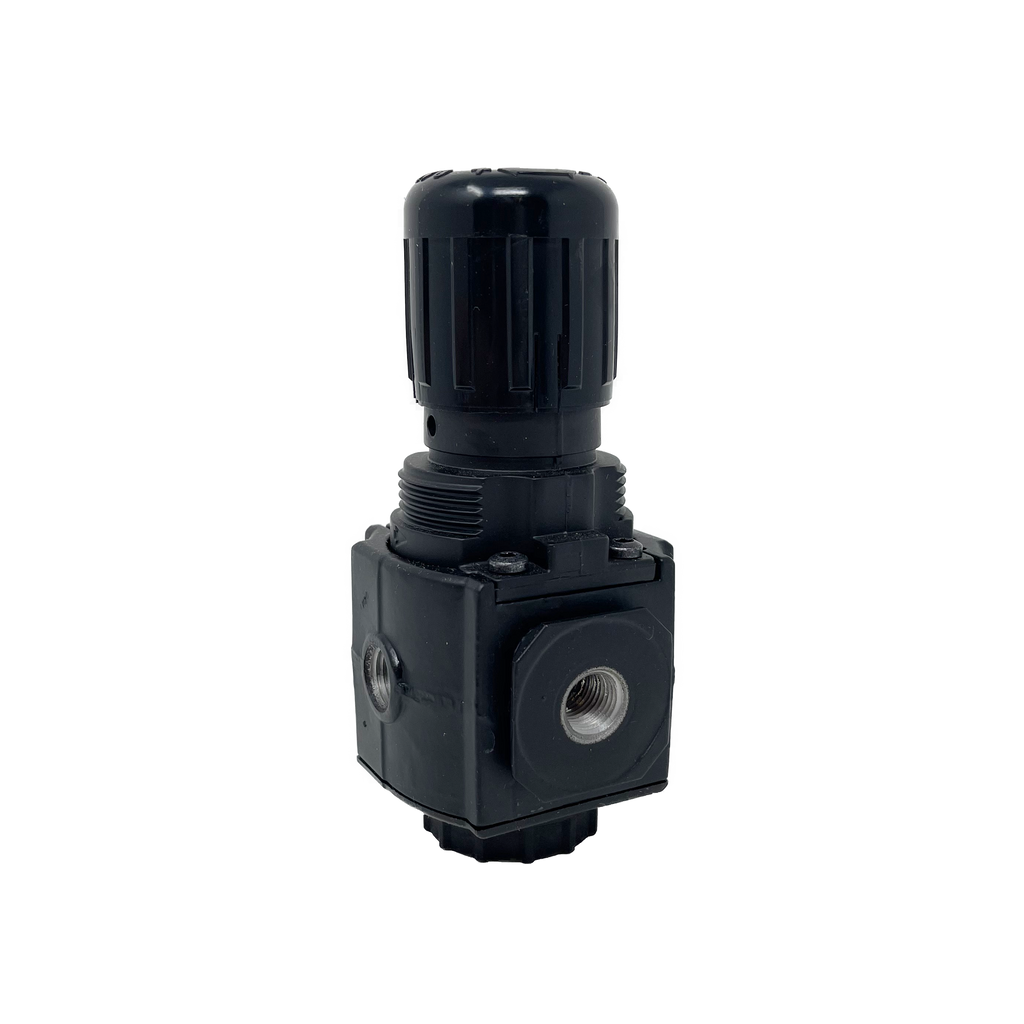

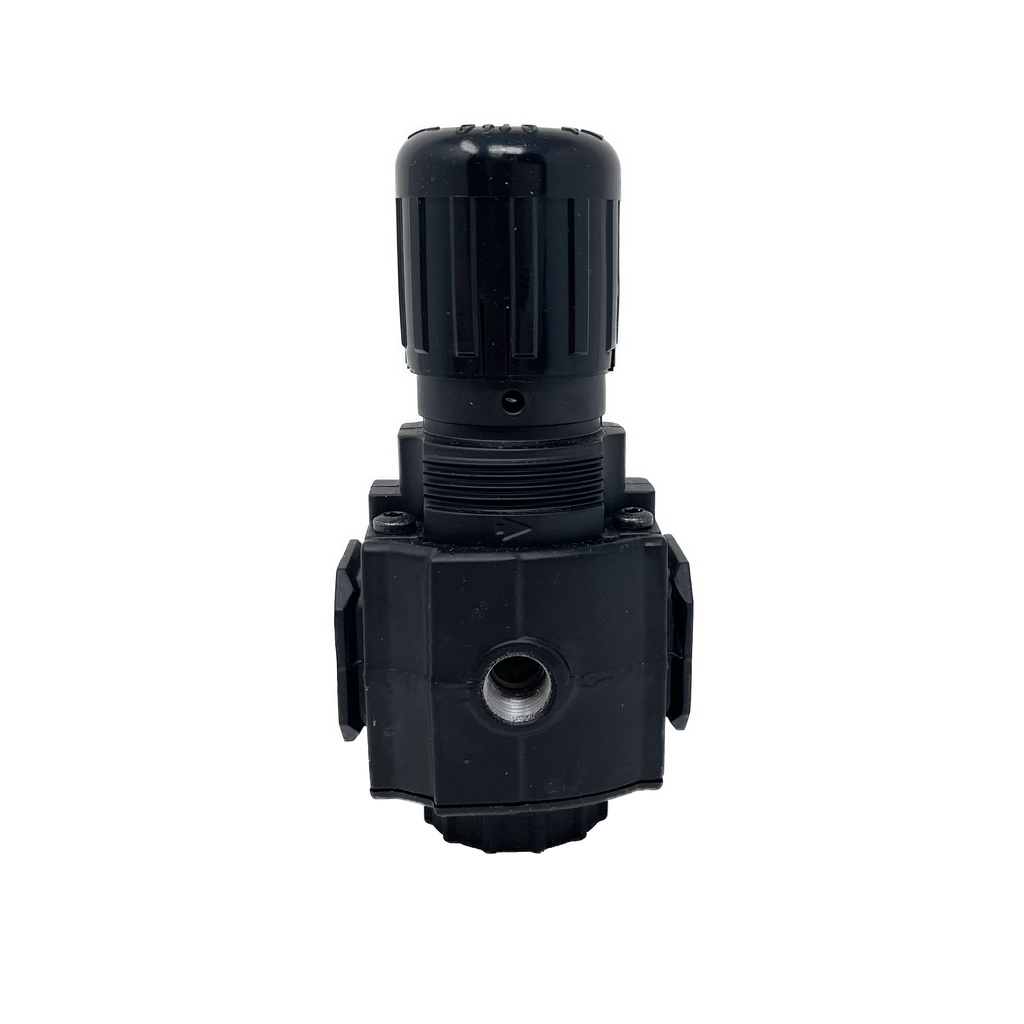

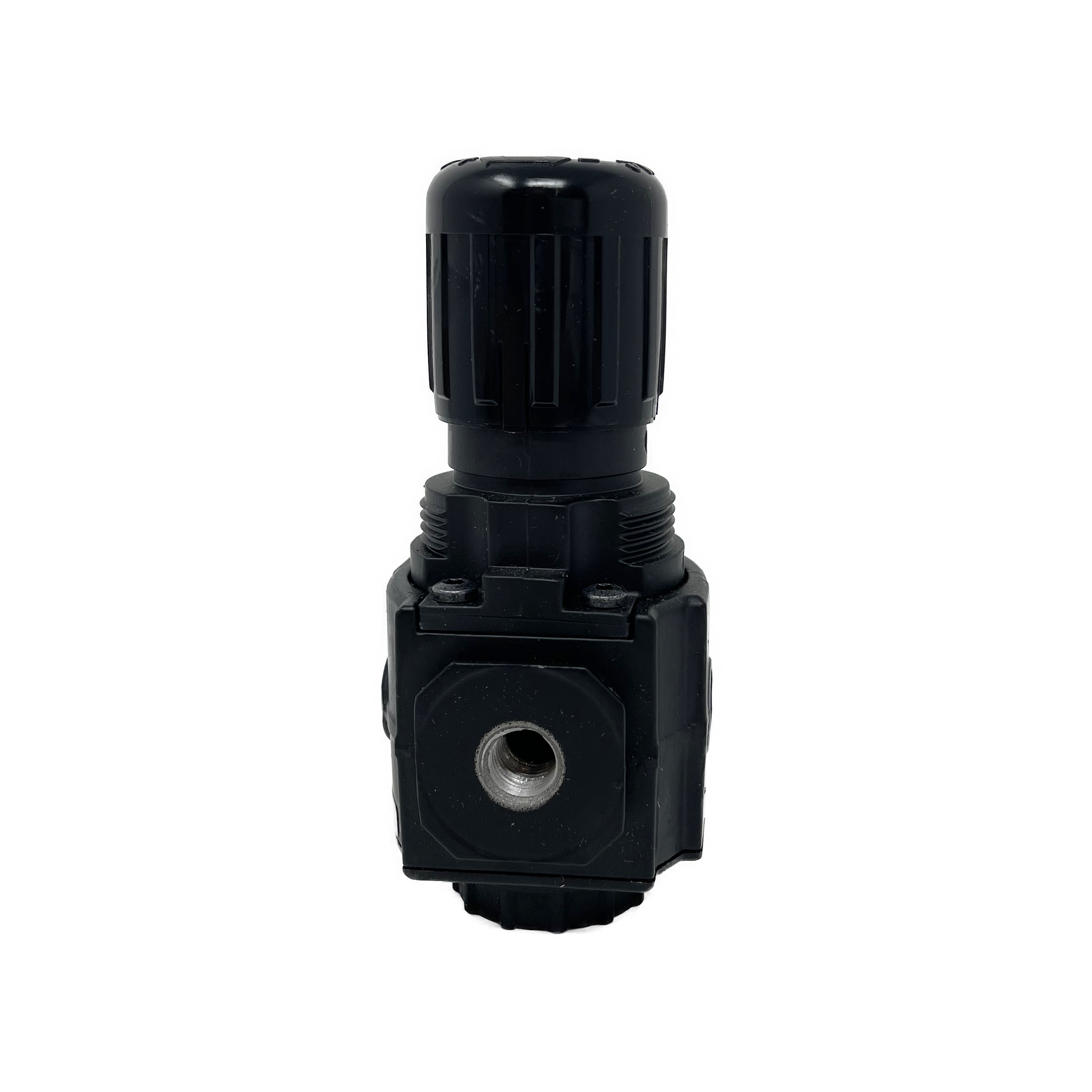

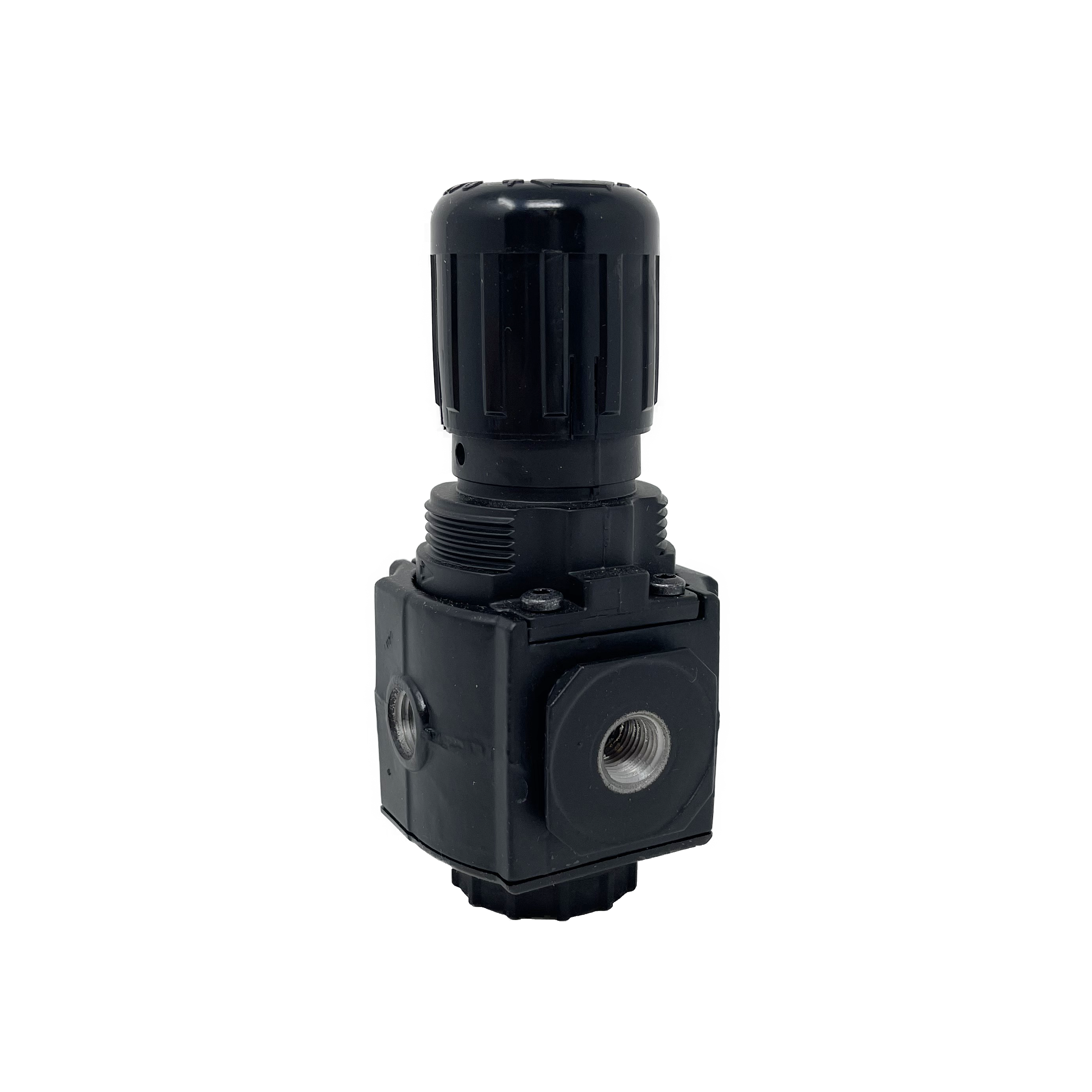

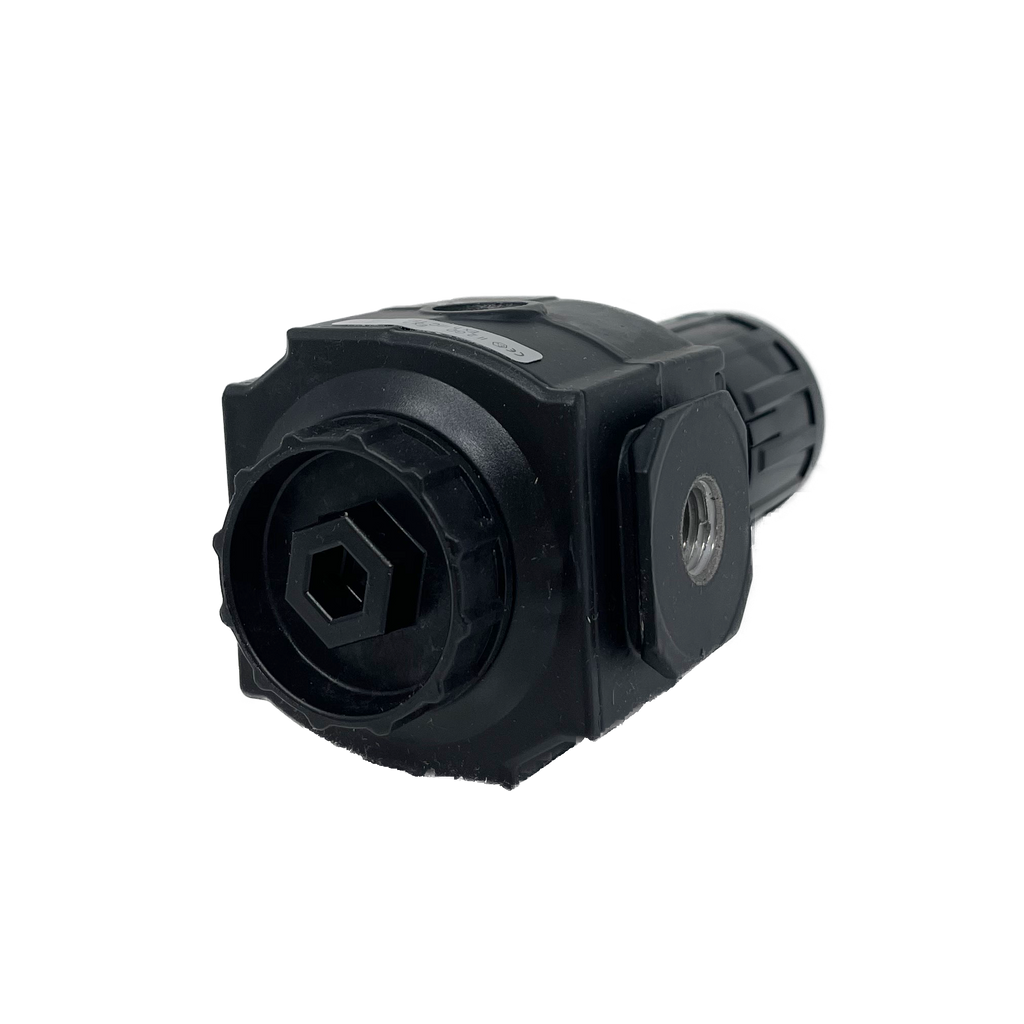

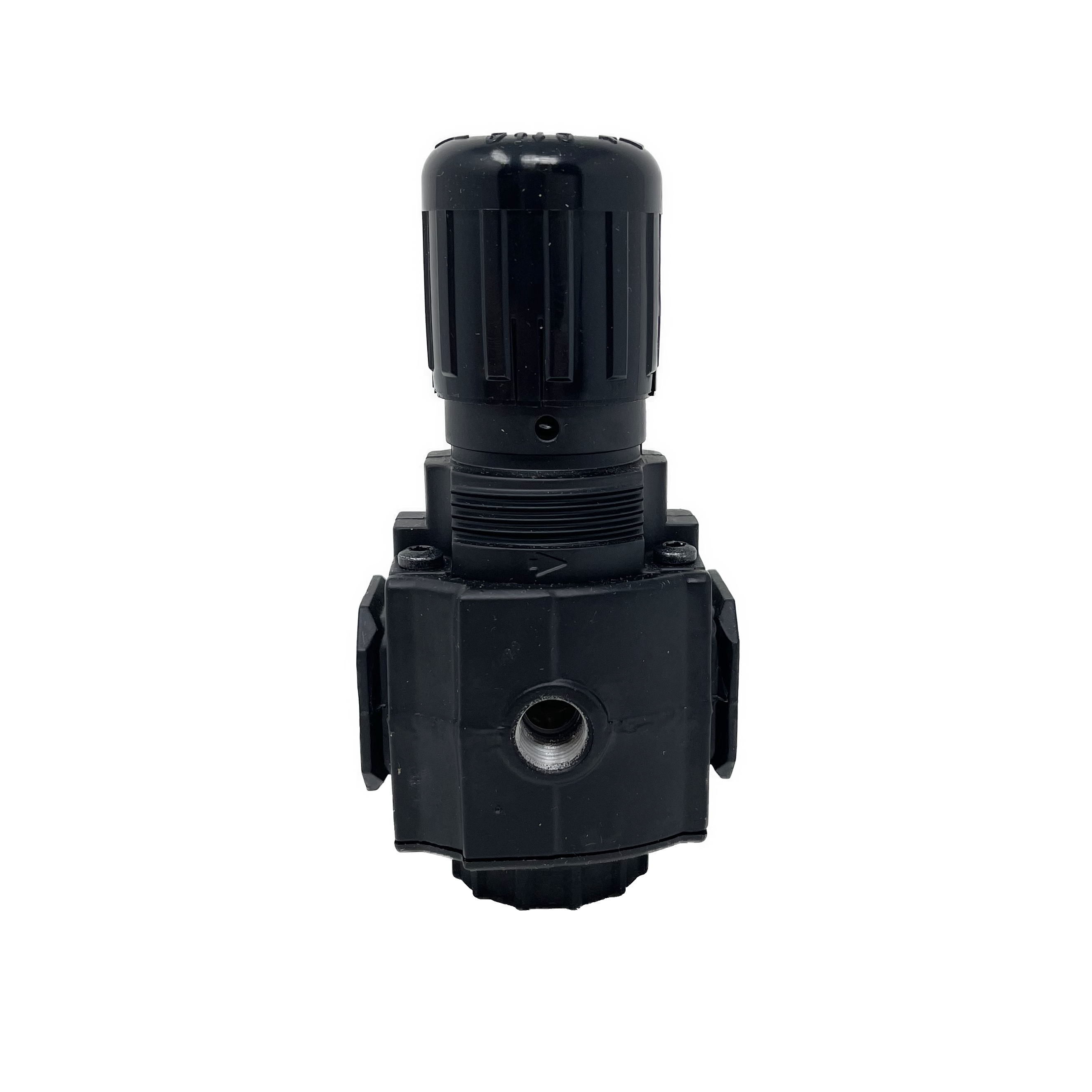

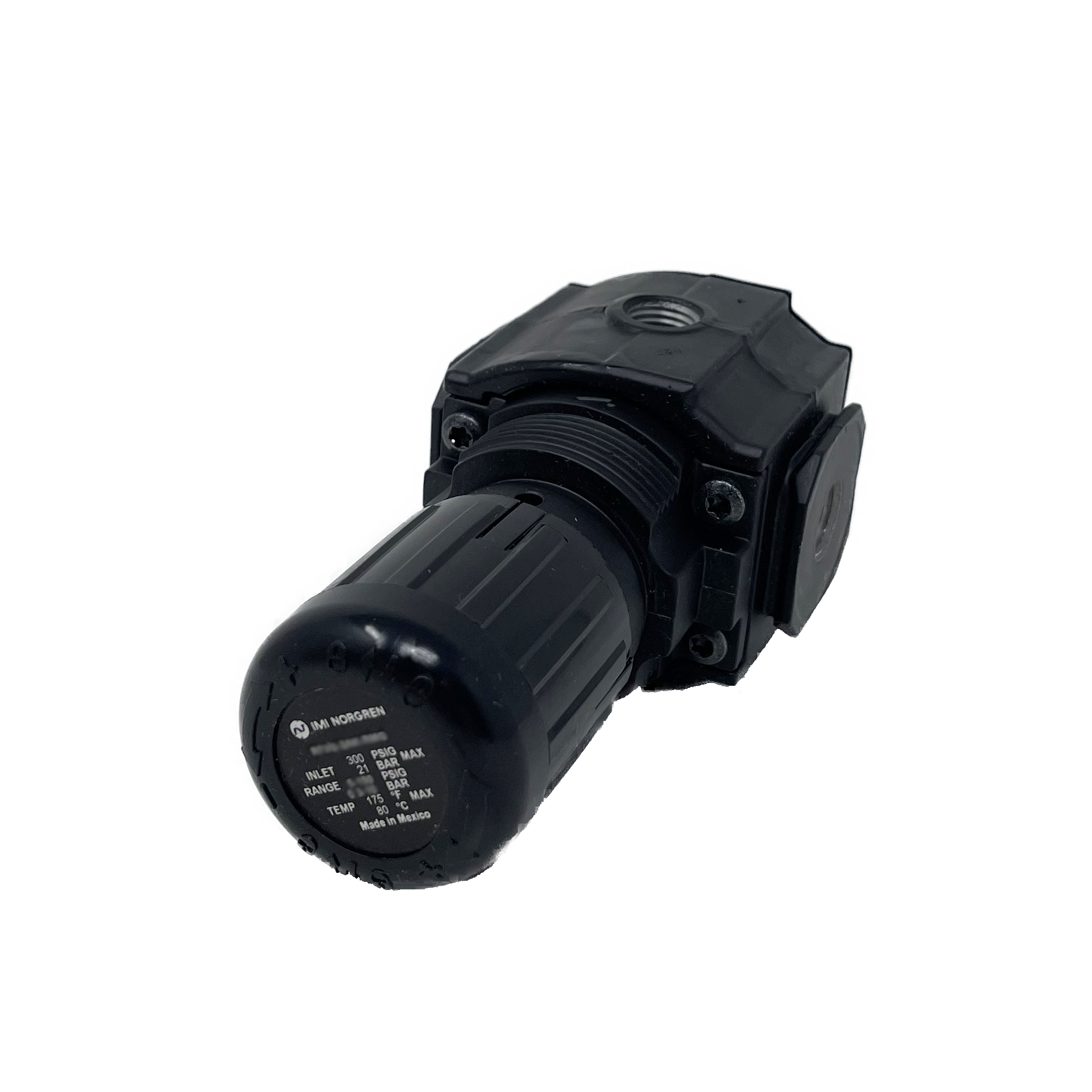

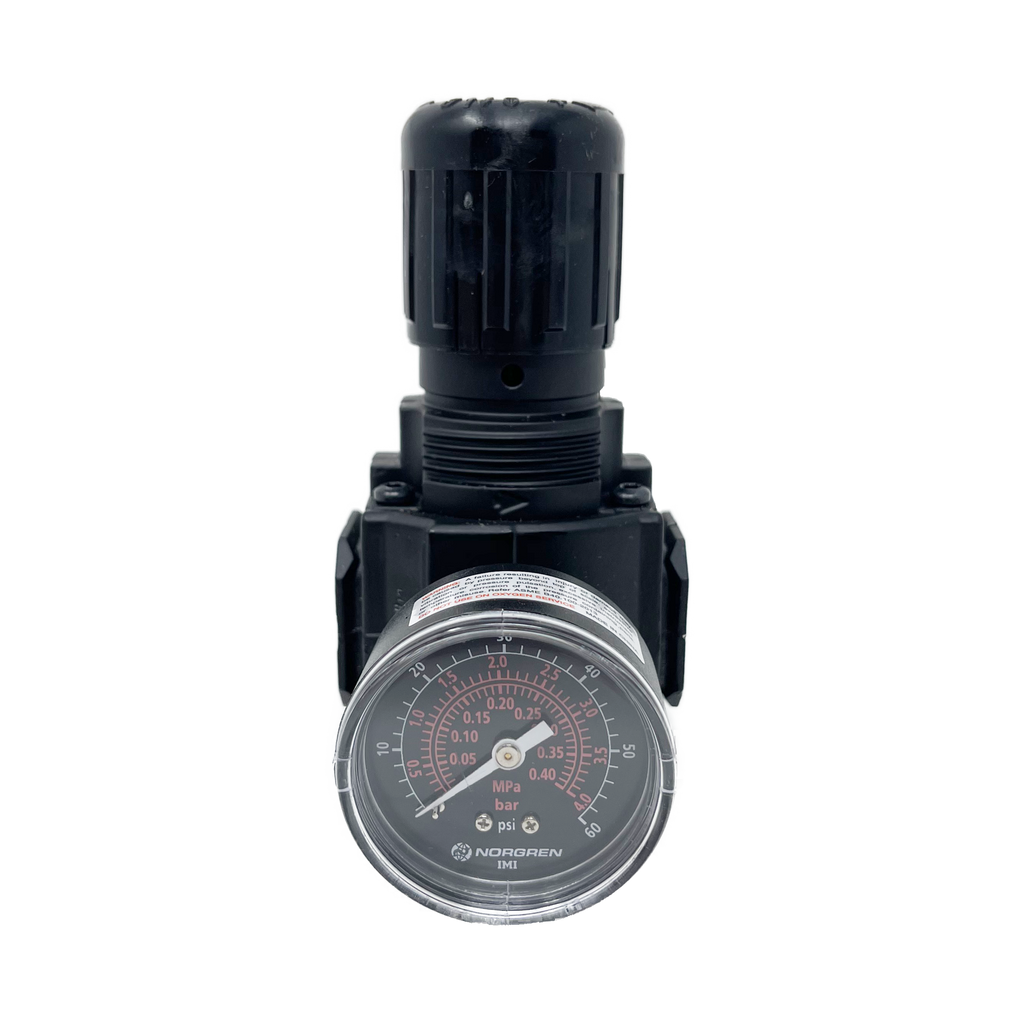

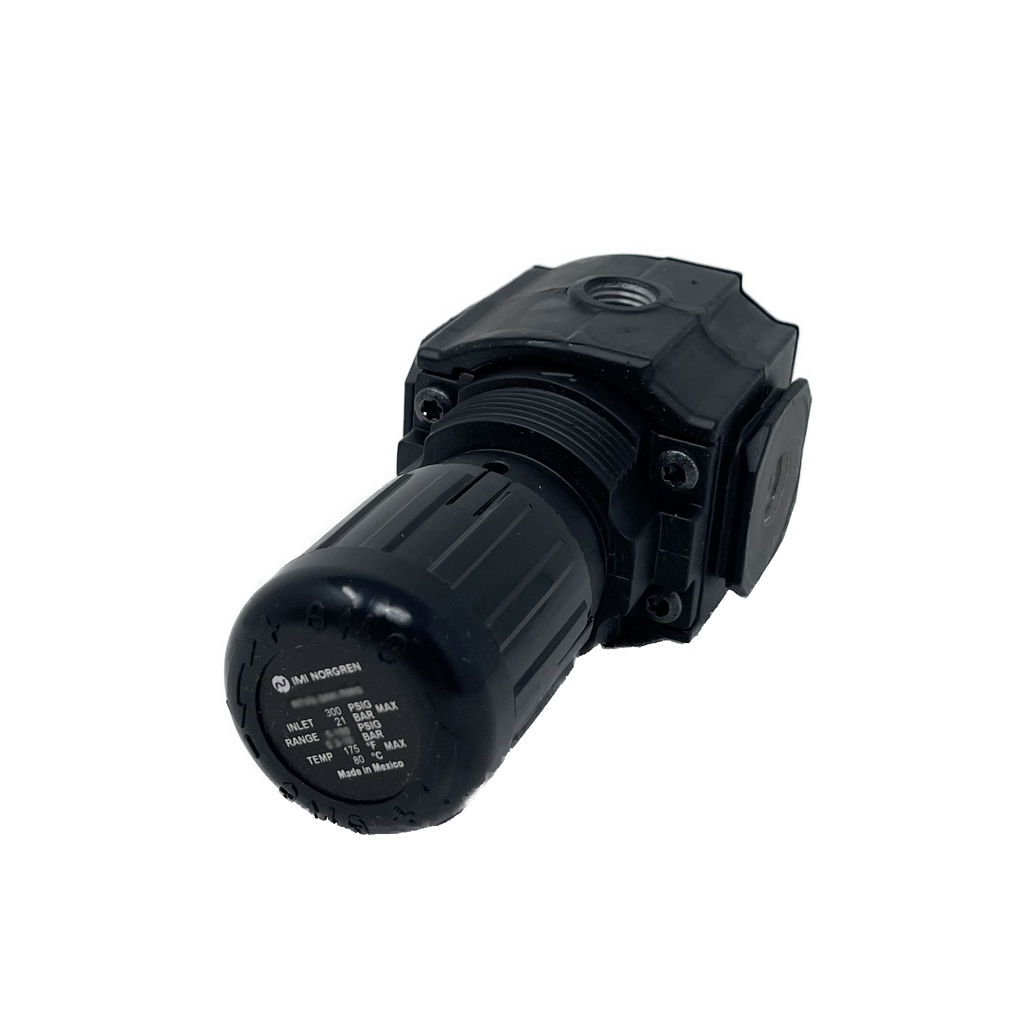

Norgren's R72G, R73G, and R74G Pressure Regulators are part of the Excelon Modular System, allowing for inline or modular installation of air preparation components. Balanced valve design. Standard relieving models. Push to lock adjusting knob with tamper evident accessory. Excelon design allows in-line or modular installation
| Product SKU | Port Size & Type | Flow SCFM | Relief Option | Gauge Option | Outlet Pressure Range | Lead Time | Price |
|---|---|---|---|---|---|---|---|
| R72G-2AK-NMG | 1/4" PTF | 70 | Non-Relieving | With Gauge | 5 to 150psi | 25 Days | $127.99 |
| R72G-2AK-NMN | 1/4" PTF | 70 | Non-Relieving | No Gauge | 5 to 150psi | 35 Days | $100.99 |
| R72G-2AK-RFG | 1/4" PTF | 70 | Relieving | With Gauge | 5 to 60psi | Same Day | $115.99 |
| R72G-2AK-RFN | 1/4" PTF | 70 | Relieving | No Gauge | 5 to 60psi | Same Day | $88.99 |
| R72G-2AK-RMG | 1/4" PTF | 70 | Relieving | With Gauge | 5 to 150psi | Same Day | $88.99 |
| R72G-2AK-RMN | 1/4" PTF | 70 | Relieving | No Gauge | 5 to 150psi | Same Day | $60.99 |
| R72G-3AK-RFG | 3/8" PTF | 70 | Relieving | With Gauge | 5 to 60psi | 5-7 Days | $119.99 |
| R72G-3AK-RFN | 3/8" PTF | 70 | Relieving | No Gauge | 5 to 60psi | 5-7 Days | $91.99 |
| R72G-3AK-RMG | 3/8" PTF | 70 | Relieving | With Gauge | 5 to 150psi | Same Day | $92.99 |
| R72G-3AK-RMN | 3/8" PTF | 70 | Relieving | No Gauge | 5 to 150psi | Same Day | $64.99 |
| R73G-2AT-RMG | 1/4" PTF | 70 | Relieving | With Gauge | 5 to 150psi | 5-7 Days | $136.99 |
