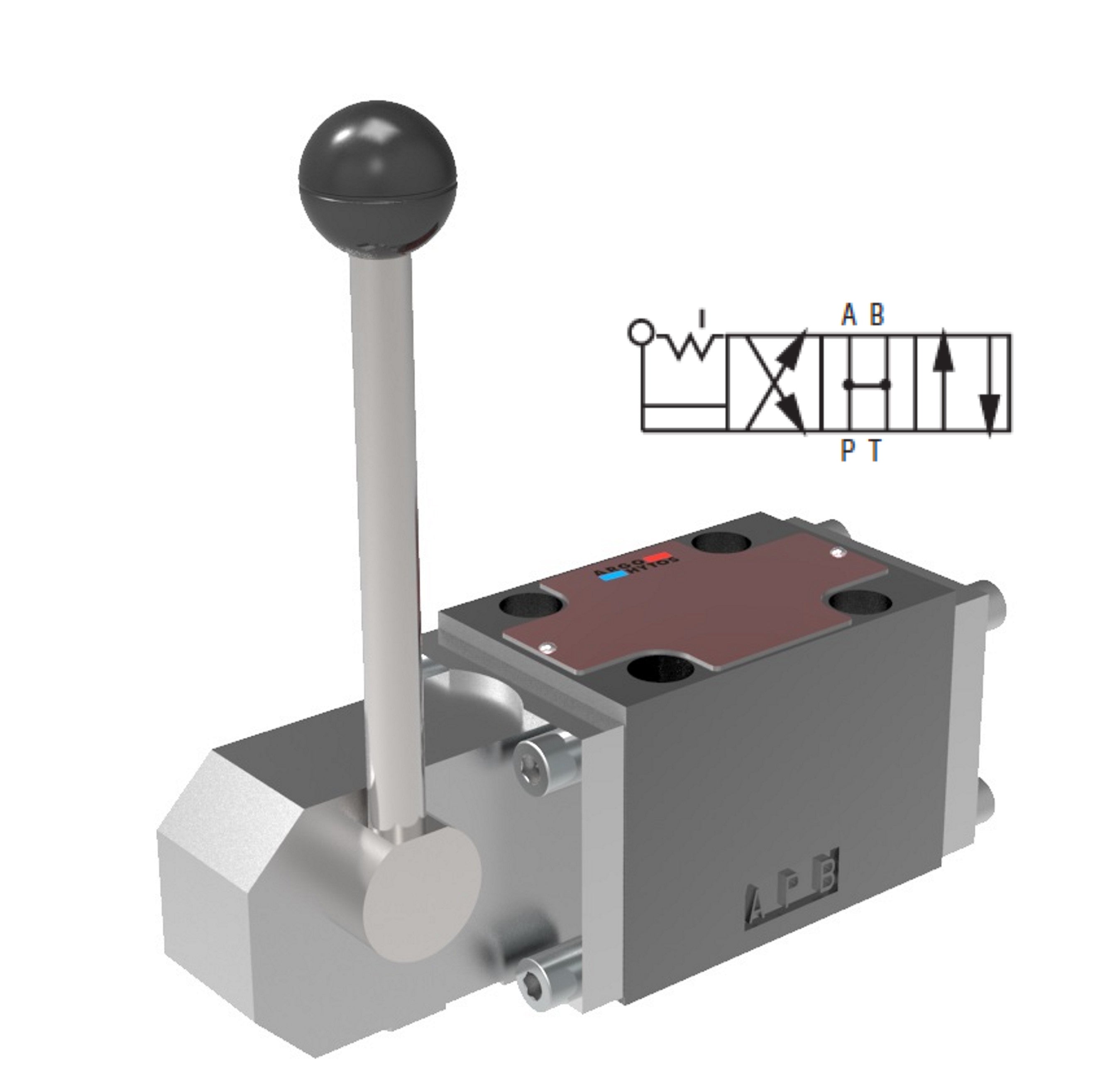

RPR3-063H15/A1 : Argo 4-Way DCV, Manually Operated, 21 GPM, 5100psi Rated, P, T, A, B Open in Neutral, Detented
Roll over image to zoom in Click on image to zoom
RPR3-063H15/A1 : Argo 4-Way DCV, Manually Operated, 21 GPM, 5100psi Rated, P, T, A, B Open in Neutral, Detented

RPR3-063H15/A1 : Argo 4-Way DCV, Manually Operated, 21 GPM, 5100psi Rated, P, T, A, B Open in Neutral, Detented

Save $27.58
Argo-HytosSKU: 15698000
3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
0
Price:
$278.99 $306.57

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Spool Configuration P, T, A, B Open in Neutral
Positions 3-Position
Way 4-Way

Description

The Argo-Hytos direct-acting, manually operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The manual lever and actuation element can be rotated in 90-degree increments for flexible installation. A wide range of spool options, as well as spring-centered or detented options, are available fo rall spool types.
