Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 1-3 Days |
Factory Location | Alpena, Michigan |
Material | Steel |
Style | 2-Bolt |
Mounting Flange | SAE A |
Electric Motor Frame Size | NEMA 56C, 143TC/145TC, 182UC/184UC |
Body Length | 3.5" |
Description

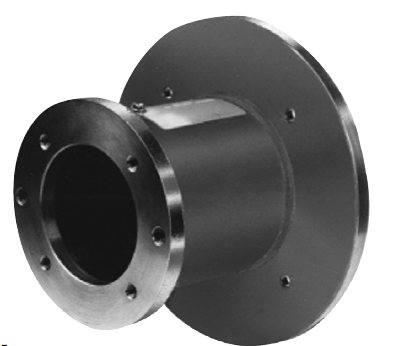

MAGNALOY 056 STEEL MOUNT SAE A 2-BOLT 3.5". Magnaloy's Welded Steel Mounts are available for special mounting requirements where the standard aluminum mount is not available or where a steel mount is required. These mounts are manufactured with the same quality and precision of the standard aluminum mounts and are guaranteed to meet Magnaloy minimum quality. Magnaloy Welded Steel Mounts are available for horizontal, vertical and engine applications in a nearly limitless choice of lengths in 0.25 inch increments. Mounting Kits are included as with aluminum mounts. These mounts are available for metric motor and metric pump dimensions in addition to NEMA motors and SAE pumps listed, consult factory for special requirements. The length determined will be the minimum length recommended, additional length can be added depending upon coupling selection, consult OneHydraulics for further assistance.
