SCP-A3/OOX-A : Argo Cavity Plug, C-8-3, 3-Way, Flow from 2 to 1, Port 3 Blocked
Roll over image to zoom in Click on image to zoom
SCP-A3/OOX-A : Argo Cavity Plug, C-8-3, 3-Way, Flow from 2 to 1, Port 3 Blocked

SCP-A3/OOX-A : Argo Cavity Plug, C-8-3, 3-Way, Flow from 2 to 1, Port 3 Blocked

Save $2.38
Argo-HytosSKU: 29645500
Same Day
1
0
Price:
$28.99 $31.37

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Operation Flow from 2 to 1, Port 3 Blocked
Valve Type Cartridge Cavity Plug
Cartridge Cavity C-8-3
Way 3-Way
Height 1.06
Length 1.91
Width 1.06
Weight 1

Description

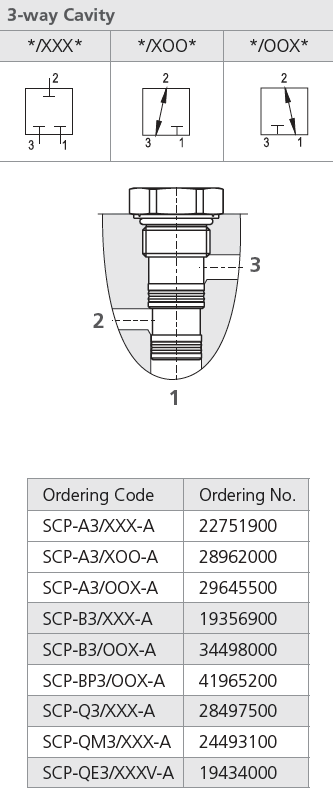

The Argo Hytos 3-Way OOX Hydraulic Directional Control Valve Cartridge Cavity Plug is a key component for maintaining hydraulic systems when a cartridge valve is removed. This plug has three ports where port 1 is blocked and ports 2 and 3 are connected, allowing for uninterrupted system operation during maintenance.

Compatible with common cavities like C-8-3 and C-10-3, this plug seals all cavity openings and features an axial bore for optional radial port connections. It offers the same sealing performance as the valves and is zinc-coated to ensure 240 hours of corrosion protection, according to ISO 9227. This plug is ideal for flushing, component replacement, or modifying circuit functionality, ensuring reliable system integrity.
