SCP-A3/XOO-A : Argo Cavity Plug, C-8-3, 3-Way Flow from 3 to 2, Port 1 Blocked

Save $2.38
Argo-HytosSKU: 28962000
6-8 Weeks
0
Price:
$28.99 $31.37

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Stock 0
Factory Location Bowling Green, Ohio

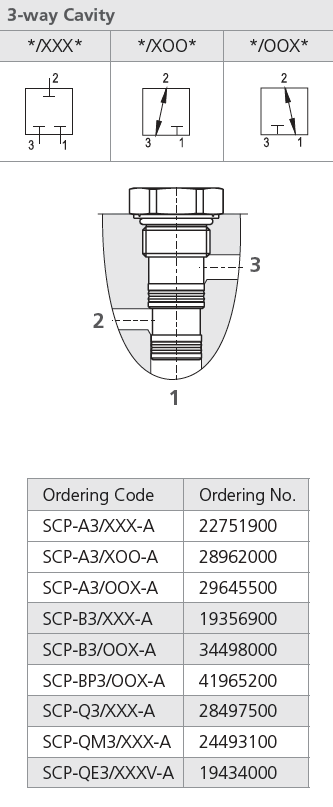

Valve Operation Flow from 3 to 2, Port 1 Blocked
Valve Type Cartridge Cavity Plug
Cartridge Cavity C-8-3
Way 3-Way
Height 1.06
Length 1.91
Width 1.06
Weight 1

Description

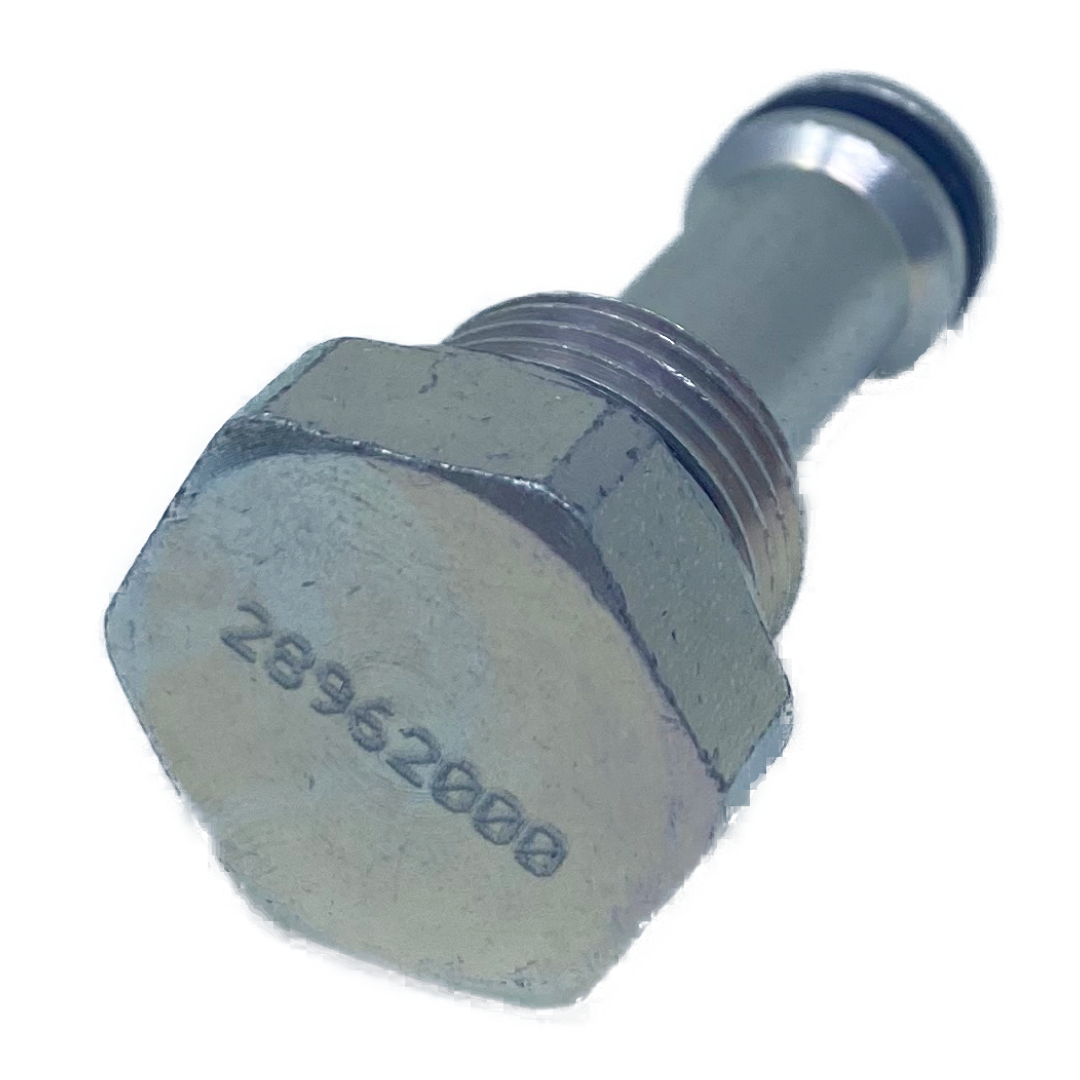

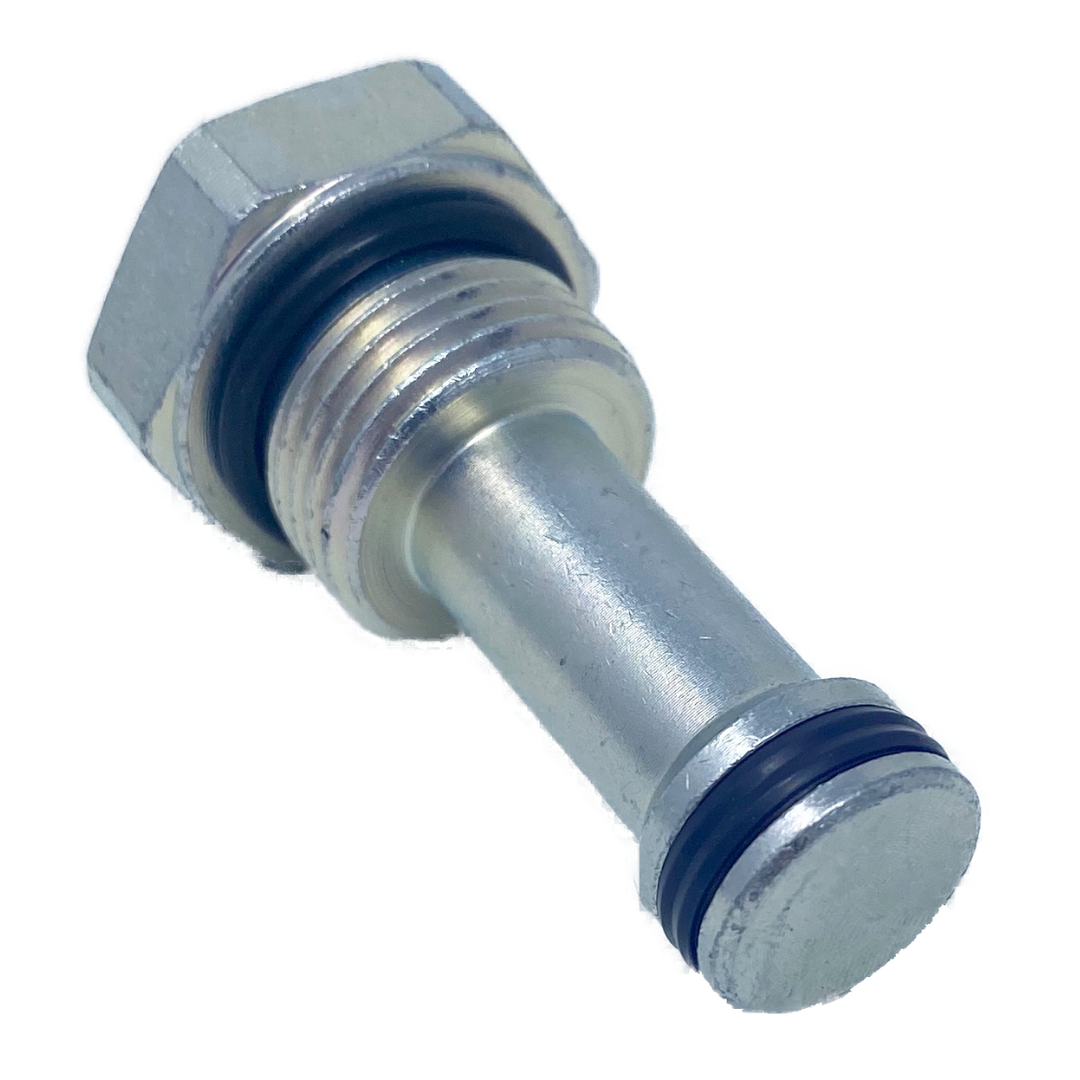

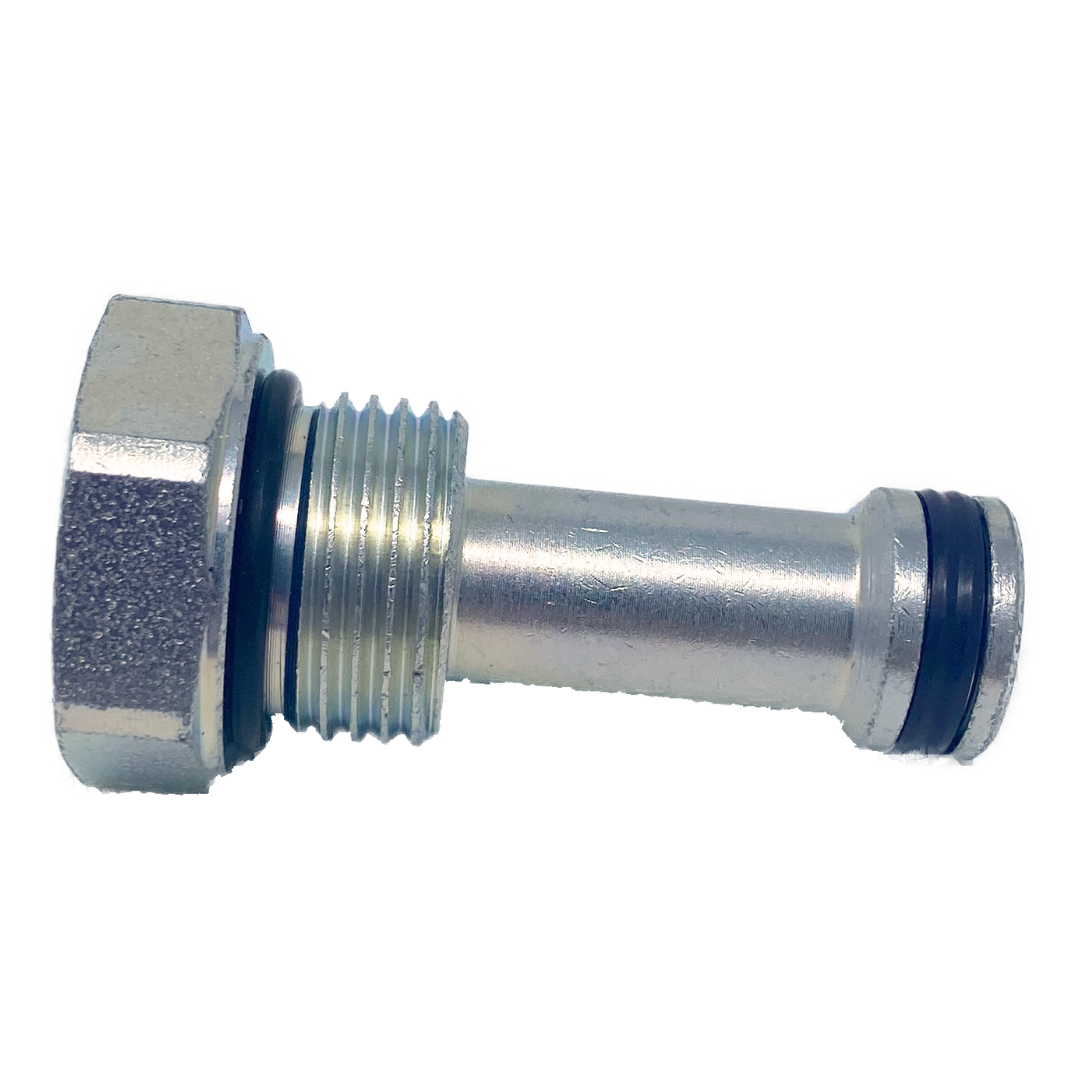

The Argo Hytos 3-Way OOX Hydraulic Directional Control Valve Cartridge Cavity Plug is a key component for maintaining hydraulic systems when a cartridge valve is removed. This plug has three ports where port 1 is blocked and ports 2 and 3 are connected, allowing for uninterrupted system operation during maintenance.

Compatible with common cavities like C-8-3 and C-10-3, this plug seals all cavity openings and features an axial bore for optional radial port connections. It offers the same sealing performance as the valves and is zinc-coated to ensure 240 hours of corrosion protection, according to ISO 9227. This plug is ideal for flushing, component replacement, or modifying circuit functionality, ensuring reliable system integrity.
