SCP-A3/XXX-A : Argo Cavity Plug, C-8-3, 3-Way, All Ports Blocked

Save $2.38
Argo-HytosSKU: 22751900
Same Day
1
56
Price:
$28.99 $31.37

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 56
Factory Location Bowling Green, Ohio
Valve Operation All Ports Blocked
Valve Type Cartridge Cavity Plug
Cartridge Cavity C-8-3
Way 3-Way
Height 1.06
Length 1.91
Width 1.06
Weight 1

Description

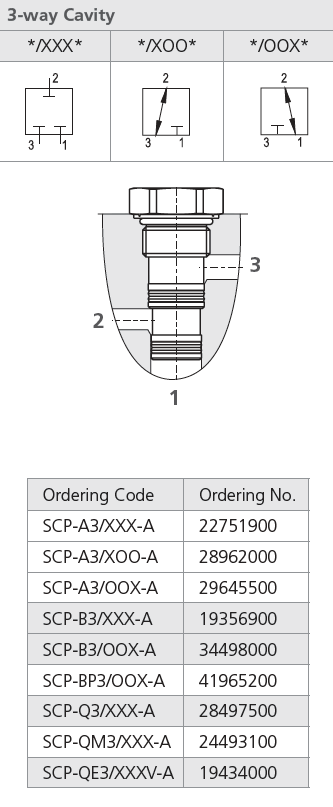

The Argo Hytos 3-Way OOX Hydraulic Directional Control Valve Cartridge Cavity Plug is a key component for maintaining hydraulic systems when a cartridge valve is removed. This plug has three ports where port 1 is blocked and ports 2 and 3 are connected, allowing for uninterrupted system operation during maintenance.

Compatible with common cavities like C-8-3 and C-10-3, this plug seals all cavity openings and features an axial bore for optional radial port connections. It offers the same sealing performance as the valves and is zinc-coated to ensure 240 hours of corrosion protection, according to ISO 9227. This plug is ideal for flushing, component replacement, or modifying circuit functionality, ensuring reliable system integrity.
