Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Ventura, California |
| Fitting Shape | Straight |
| Material | 316 Stainless Steel |
| Series | SFA |
| Country of Manufacture | South Korea |
| Side 1 Gender | Male |
| Side 1 Size | 3/8" (-6) |
| Side 1 Type | Tube Stub |
| Side 2 Gender | Female |
| Side 2 Size | 1/2-14 (-8N) |
| Side 2 Type | NPT |
Description

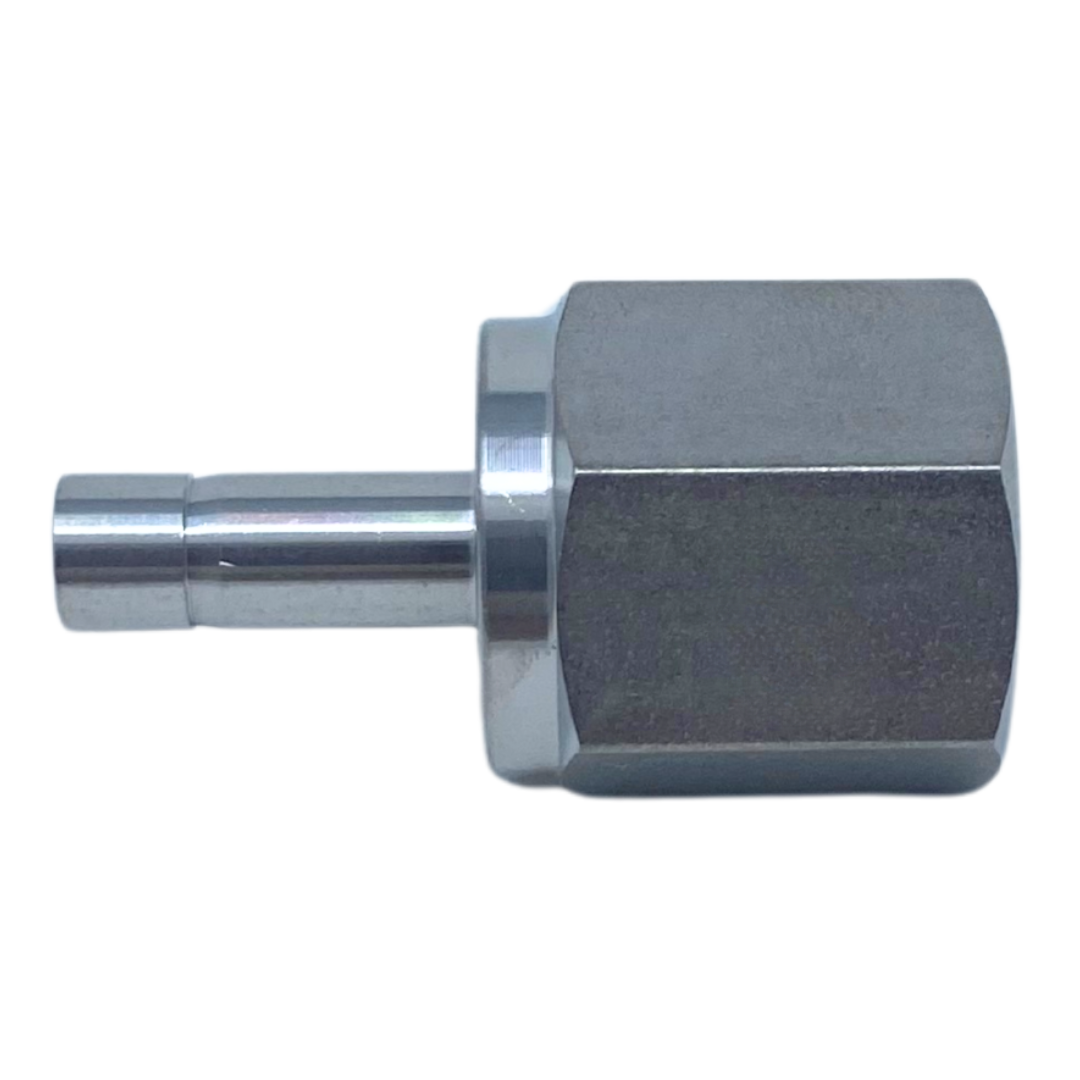

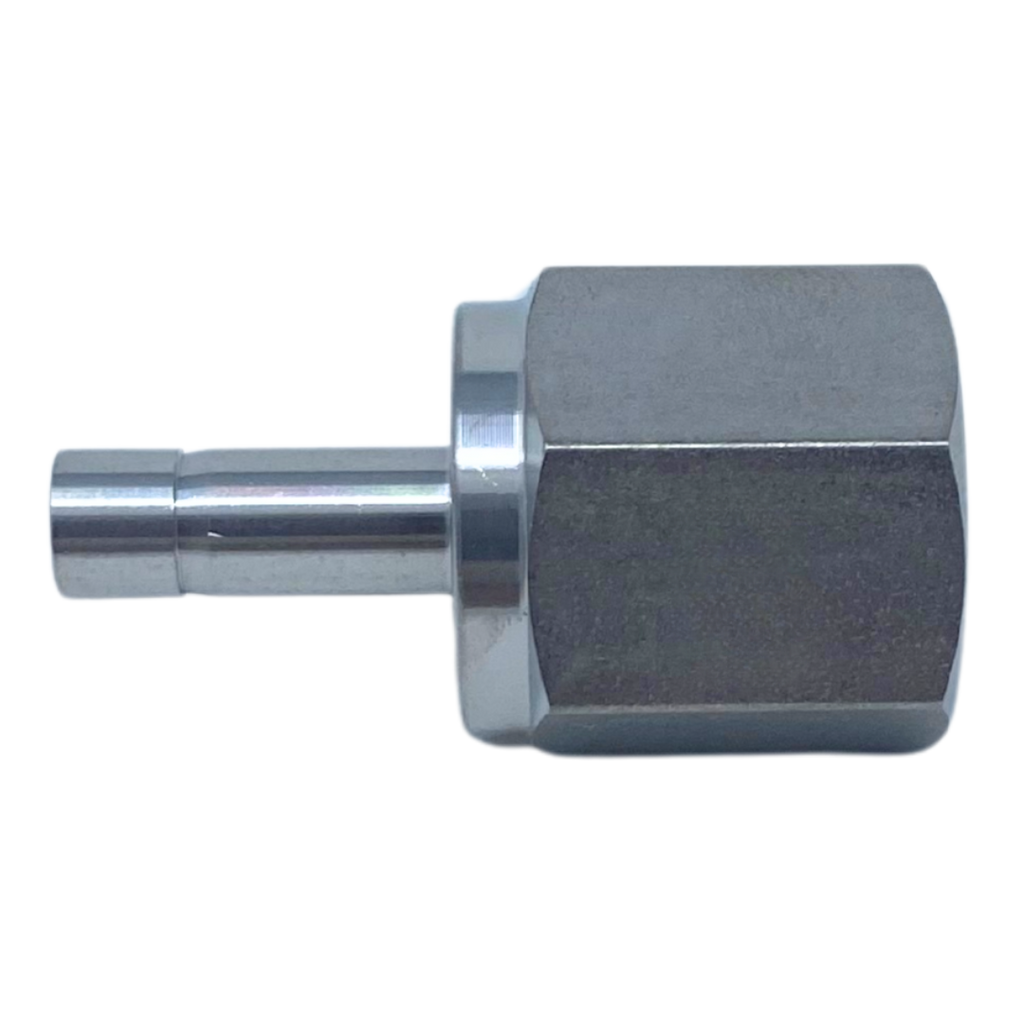

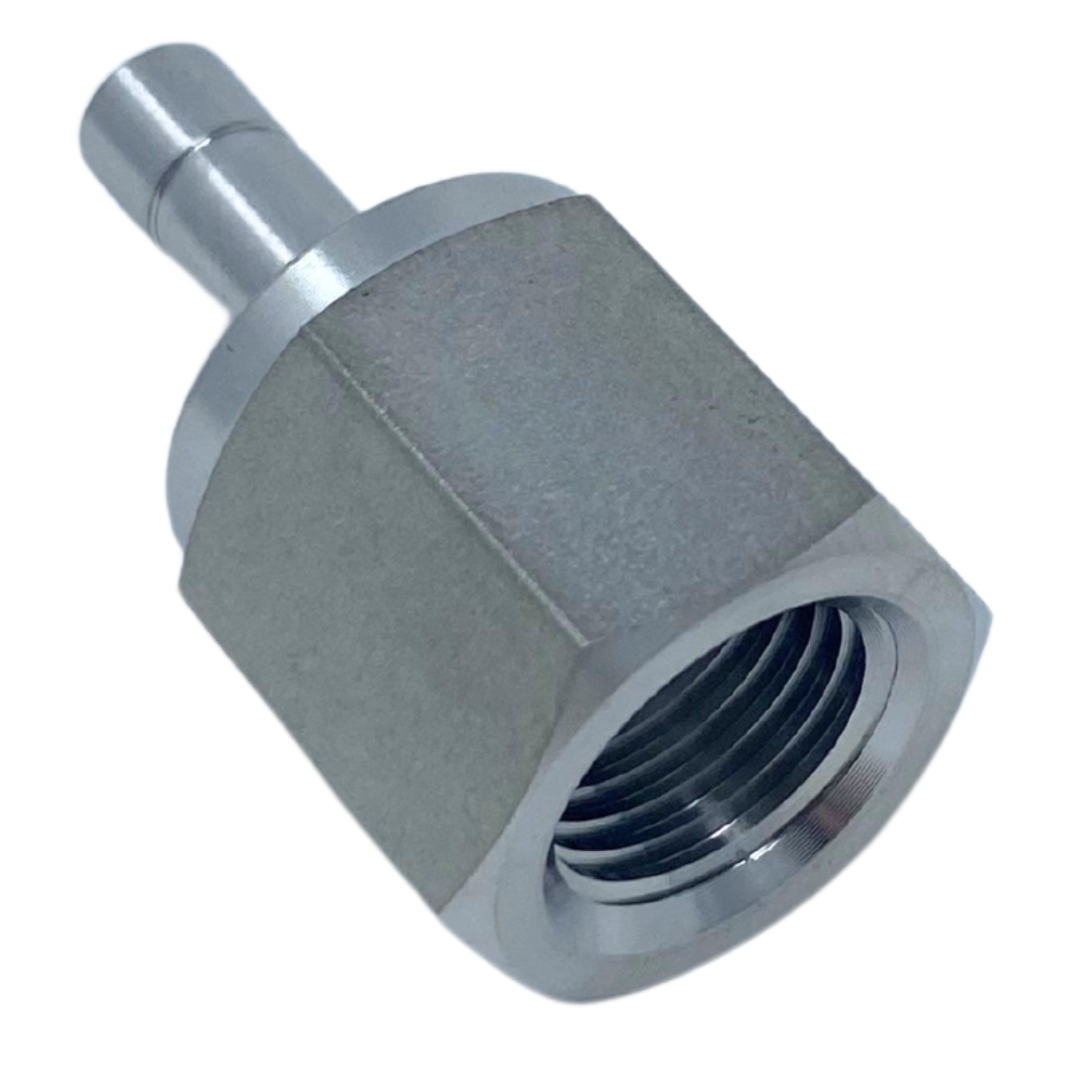

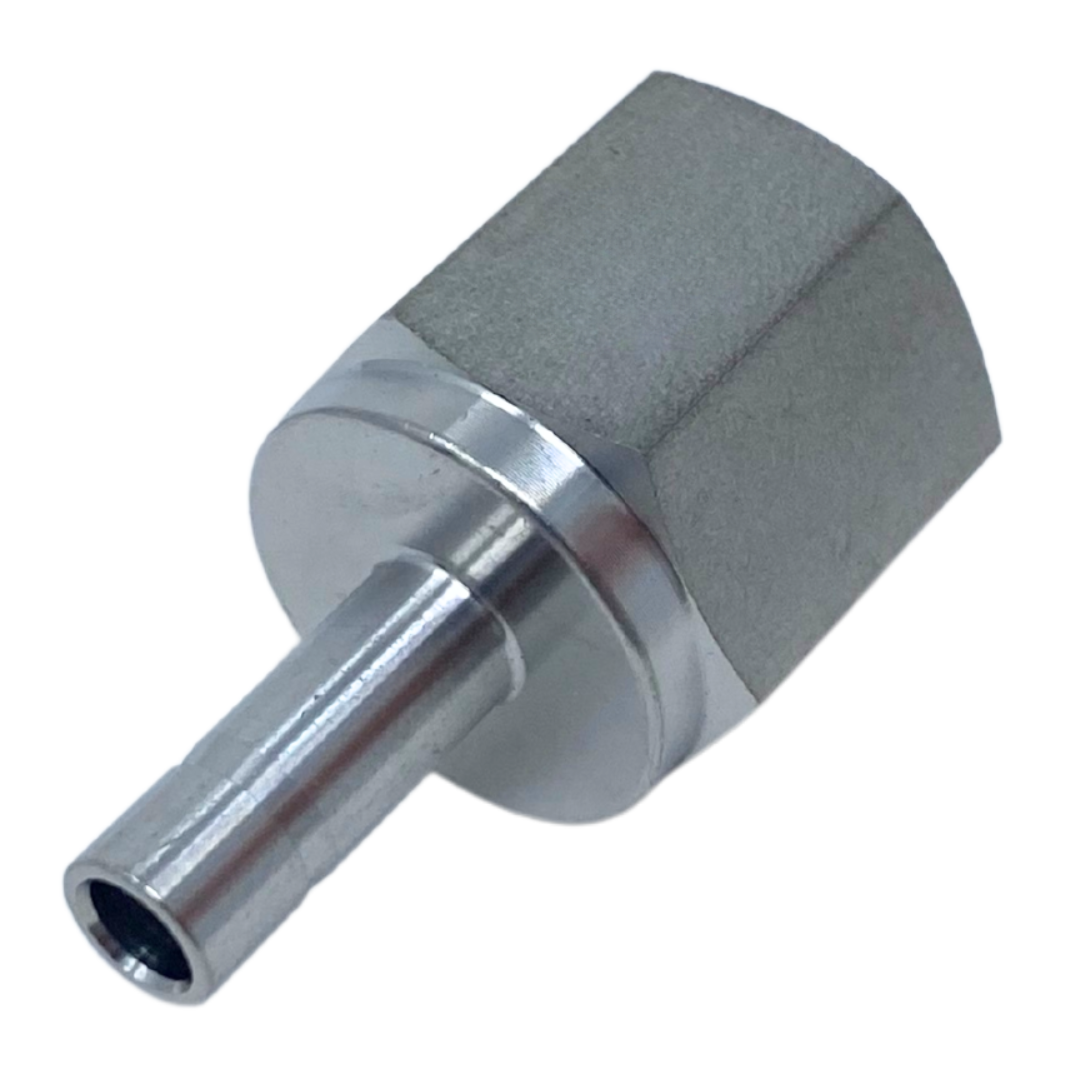

Series SFA Straight Male Tube Stub x Female NPT Adapters in 316 stainless steel (316SS) are high-quality fittings designed to connect a straight male tube stub to a female NPT (National Pipe Thread) threaded connection in hydraulic and pneumatic systems. Made from corrosion-resistant 316SS, these adapters are ideal for use in harsh environments such as chemical processing, marine, and food industries. The male tube stub side connects to a short section of straight tubing, typically made from stainless steel, which is the preferred material for hydraulic systems due to its strength and resistance to corrosion. The tubing is securely fastened to the adapter using a compression fitting, ensuring a leak-free connection. The female NPT side of the adapter features tapered threads that create a strong, tight seal when connected to other NPT-compatible components. NPT fittings are known for their ability to handle high-pressure applications, providing reliable and efficient connections in fluid systems.
