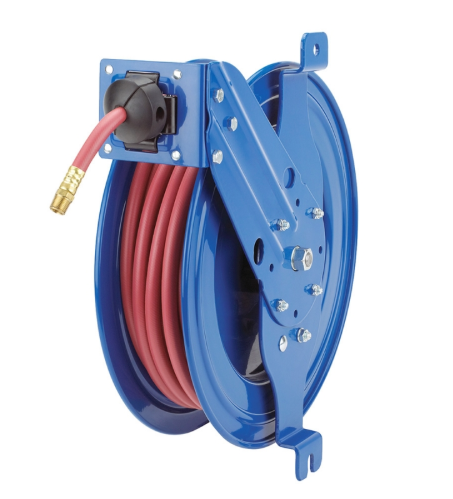

SG17-H125 : Coxreels SG17-H125 Side mount reel with guide arm 1/4"x25' 5000PSI grease and heavy hydraulics applications
Roll over image to zoom in Click on image to zoom
SG17-H125 : Coxreels SG17-H125 Side mount reel with guide arm 1/4"x25' 5000PSI grease and heavy hydraulics applications

SG17-H125 : Coxreels SG17-H125 Side mount reel with guide arm 1/4"x25' 5000PSI grease and heavy hydraulics applications

COXReelsSKU: SG17-H125
4-6 Weeks
Price:
$645.99

Product Details

Usually Ships Within 4-6 Weeks
Factory Location Tempe, Arizona
Material Steel
Pressure Rating 5000
Inside Diameter 0.25 (1/4")
Hose Outside Diameter 0.5625 (9/16")
Cable Length NO HOSE, designed for 25 ft
Height 19.5
Length 17
Width 7.25
Weight 45

Description

Coxreels SG and SGW Series expand the capabilities of the Side Mount spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SG Series (for air/water, oil and grease) and SGW Series (for oxy-acetylene and T Grade gas welding hose) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard _-inch wrench.
