Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Ventura, California |
| Fitting Shape | Straight |
| Material | 316 Stainless Steel |
| Series | SGMC |
| Country of Manufacture | South Korea |
| Side 1 Gender | Female |
| Side 1 Size | 16mm (-16M) |
| Side 1 Type | Tube |
| Side 2 Gender | Male |
| Side 2 Size | 1/2-14 (-8G) |
| Side 2 Type | BSPP |
Description

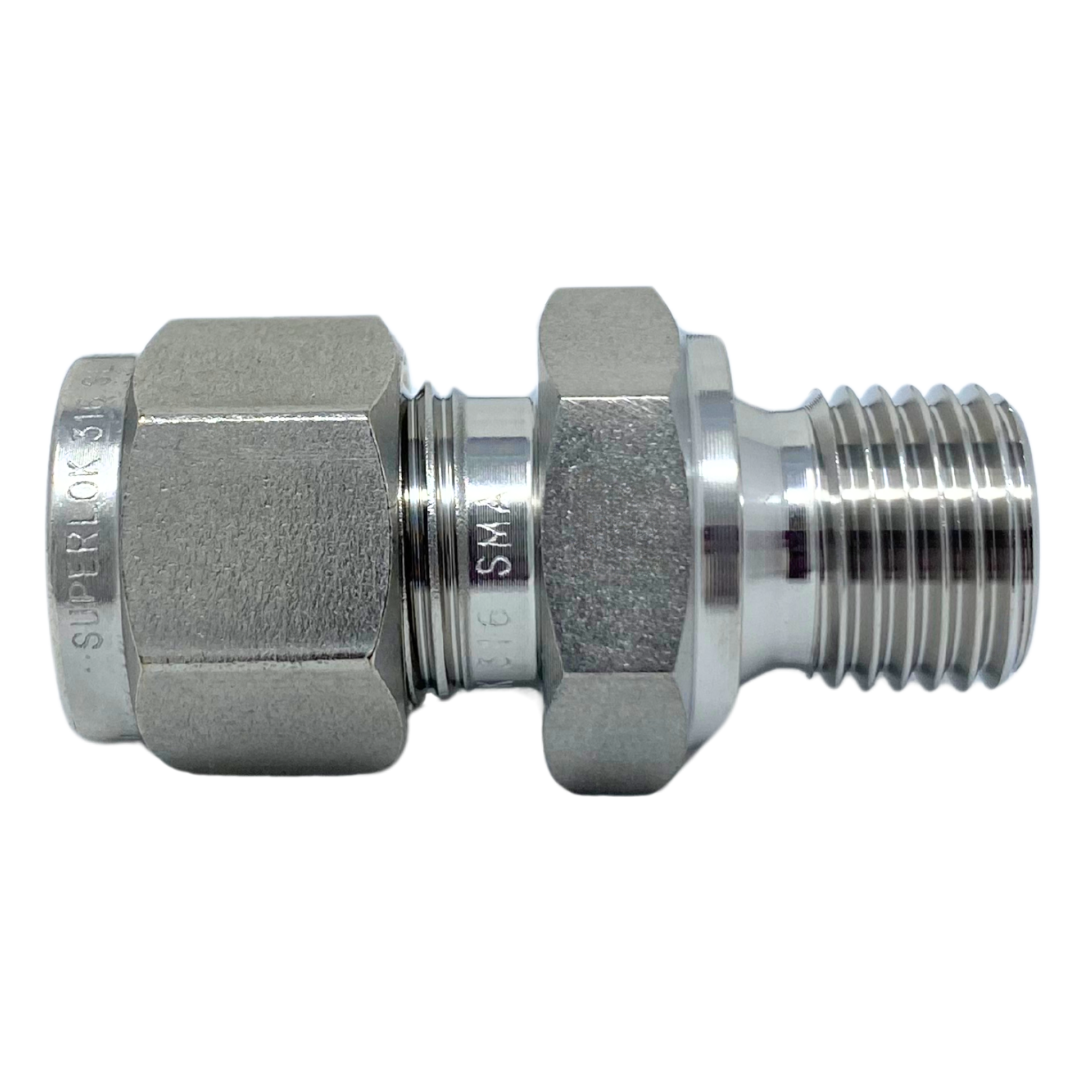

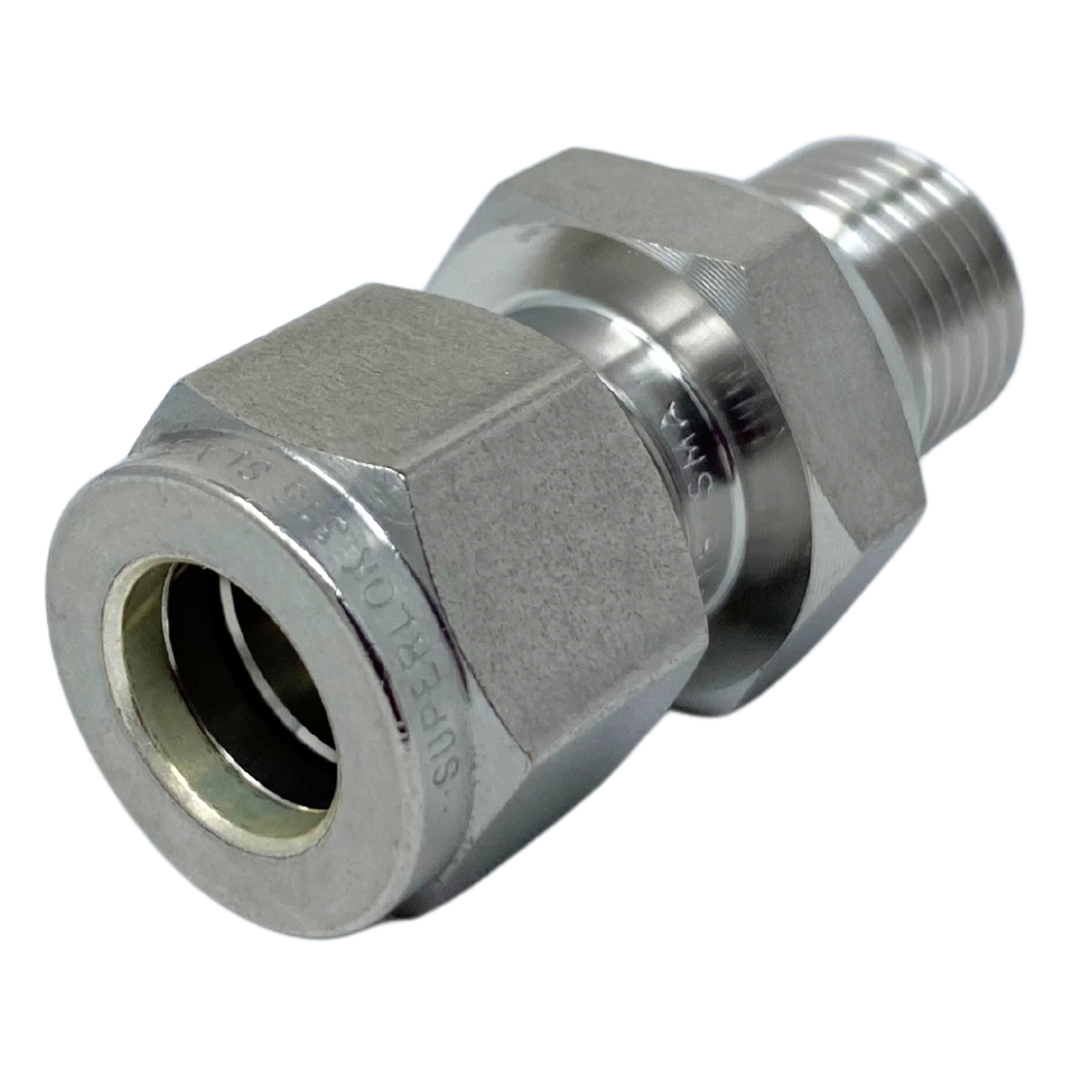

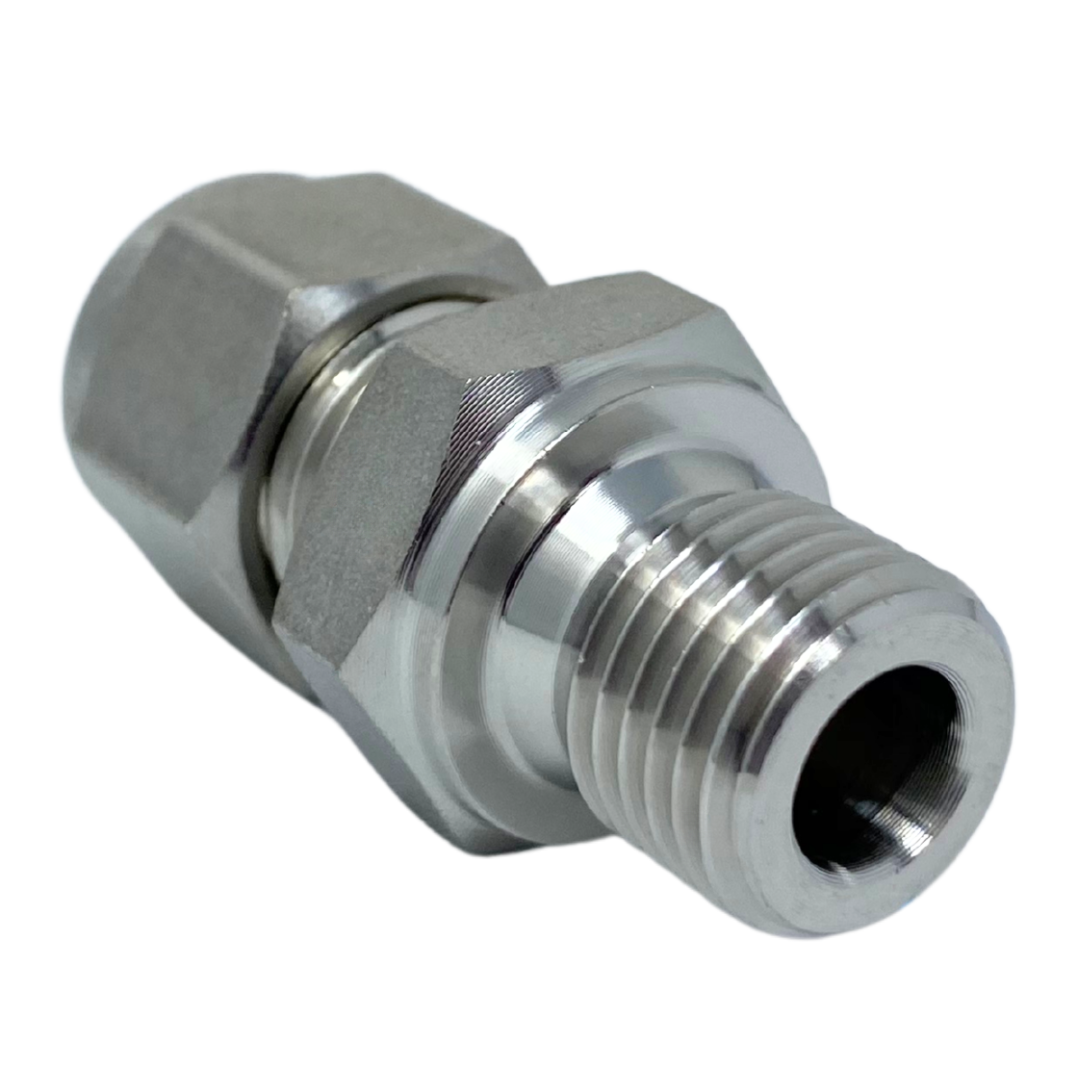

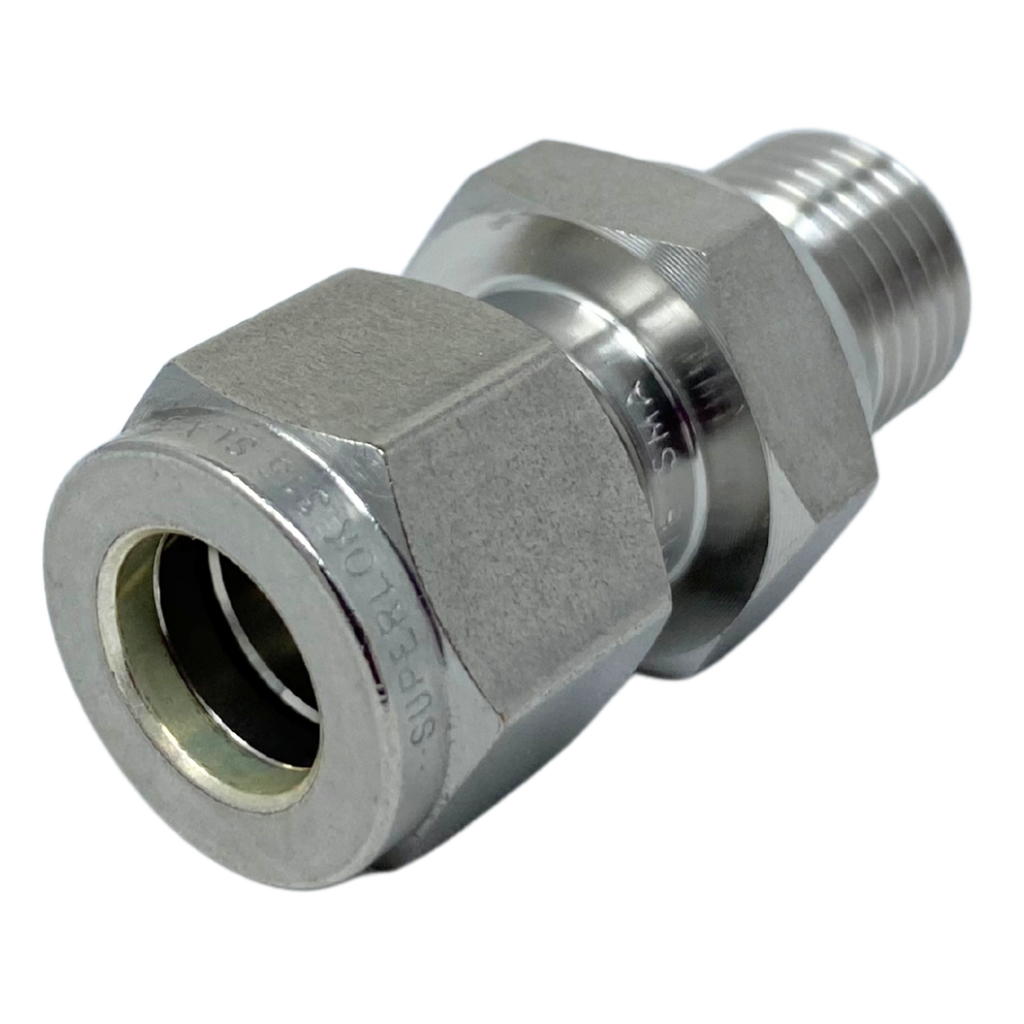

Our Series SGMC Straight Tube x Male BSPP Male Connector for Bonded Washer Seal Adapters, made from high-quality 316 stainless steel, are designed to provide secure and leak-free connections in hydraulic and fluid systems. These adapters feature a straight tube connection on one end and a male BSPP (British Standard Pipe Parallel) connection on the other, which uses parallel threads to create a tight seal. The addition of a bonded washer ensures an extra layer of security, providing a reliable, leak-tight connection by compressing the washer between the male BSPP threads and the mating surface. These adapters are ideal for applications in industries such as oil and gas, instrumentation, and fluid transfer, where precision and durability are critical. The 316 stainless steel construction offers excellent corrosion resistance, making these adapters a trusted choice for high-performance systems.
