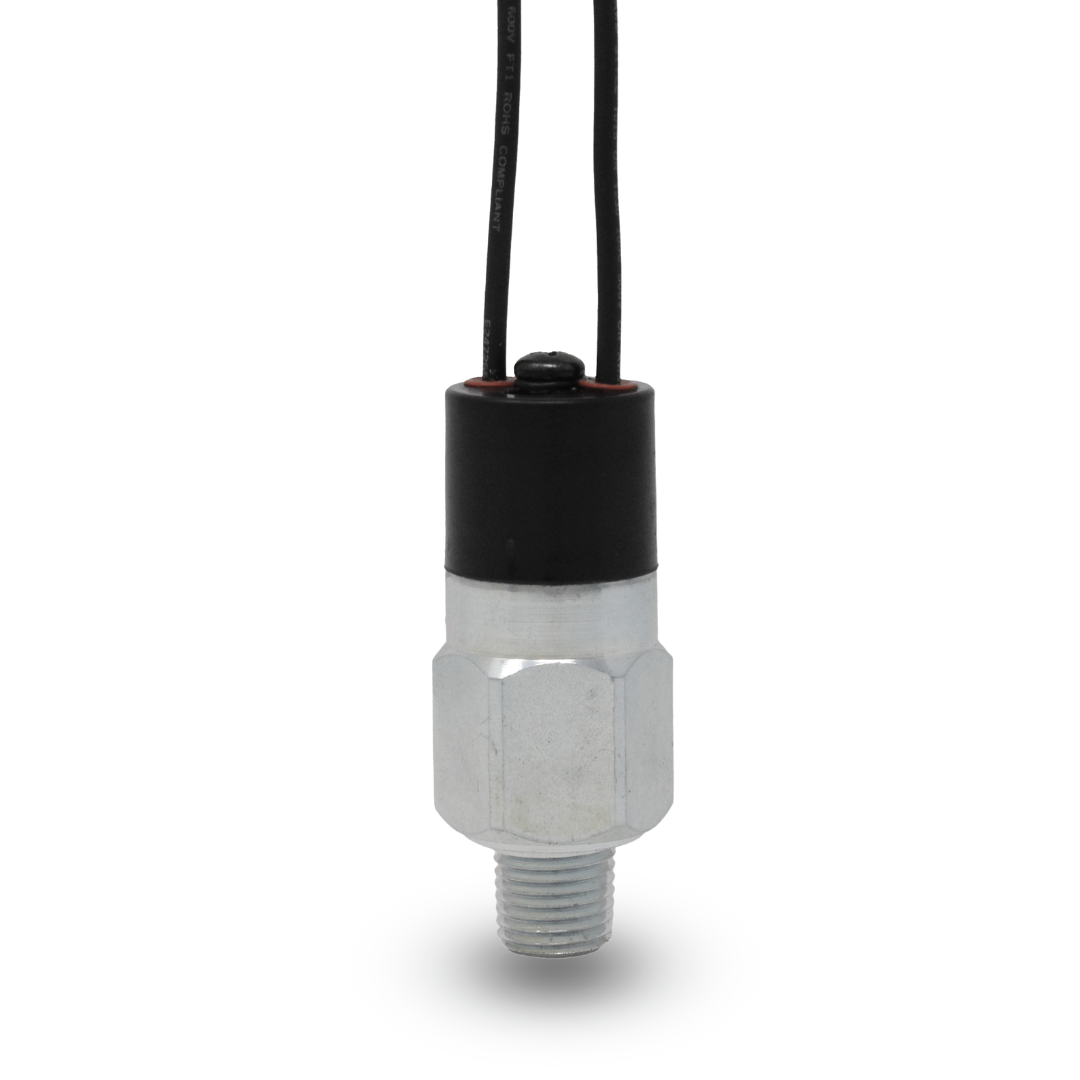

SKBA-2-4S-B-FL : Anfield Field Adjustable Compact Pressure Switch, SPST, Normally Closed, 20-120psi, 0.25 (1/4") 7/16-20 SAE ORB Male, Flying Lead
Roll over image to zoom in Click on image to zoom
SKBA-2-4S-B-FL : Anfield Field Adjustable Compact Pressure Switch, SPST, Normally Closed, 20-120psi, 0.25 (1/4") 7/16-20 SAE ORB Male, Flying Lead

SKBA-2-4S-B-FL : Anfield Field Adjustable Compact Pressure Switch, SPST, Normally Closed, 20-120psi, 0.25 (1/4") 7/16-20 SAE ORB Male, Flying Lead

Save $6.59
Anfield SensorsSKU: SKBA-2-4S-B-FL
4-5 Weeks
Price:
$25.99 $32.58

Product Details

Data Sheet Click here to download
Usually Ships Within 4-5 Weeks
Factory Location Newnan, Georgia
Material Zinc Plated Steel
Port Size 0.25 (1/4") 7/16-20 SAE ORB Male
Pressure Rating 9000
Operating Temp Range -40°F to 248°F
Seal Material Nitrile
Pressure Range 20-120psi
Solenoid Electrical Connection Flying Lead
Series SKBA
Country of Manufacture Canada
Height 0.945
Length 1.72
Width 0.945
Weight 0.16

Description

The Series SKBA (Field Adjustable) / SKBF (Factory Preset) Compact Pressure Switch is a miniature pressure switch designed for high-pressure applications in harsh environments, including mobile systems. Its diaphragm/piston combination ensures durability, while its well-sealed design provides ingress protection up to IP68 when paired with the flying lead option. Offering a variety of mechanical and electrical terminations, this switch is easy to integrate into systems for applications such as industrial tools, garbage trucks, and brake pressure switches. With a high mechanical life expectancy of 1 million cycles, a maximum overpressure rating of 9,000 PSI, and repeatability of plus or minus 3%, the SKBA/SKBF pressure switch delivers reliable, long-lasting performance in demanding conditions.
