Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 4-5 Weeks |
| Factory Location | Newnan, Georgia |
| Material | Zinc Plated Steel |
| Port Size | 0.25 (1/4") 7/16-20 SAE ORB Male |
| Pressure Rating | 9000 |
| Operating Temp Range | -40°F to 248°F |
| Seal Material | Nitrile |
| Pressure Range | 90-250psi |
| Solenoid Electrical Connection | Flying Lead |
| Series | SKBA |
| Country of Manufacture | Canada |
| Height | 0.945 |
| Length | 1.72 |
| Width | 0.945 |
| Weight | 0.16 |
Description

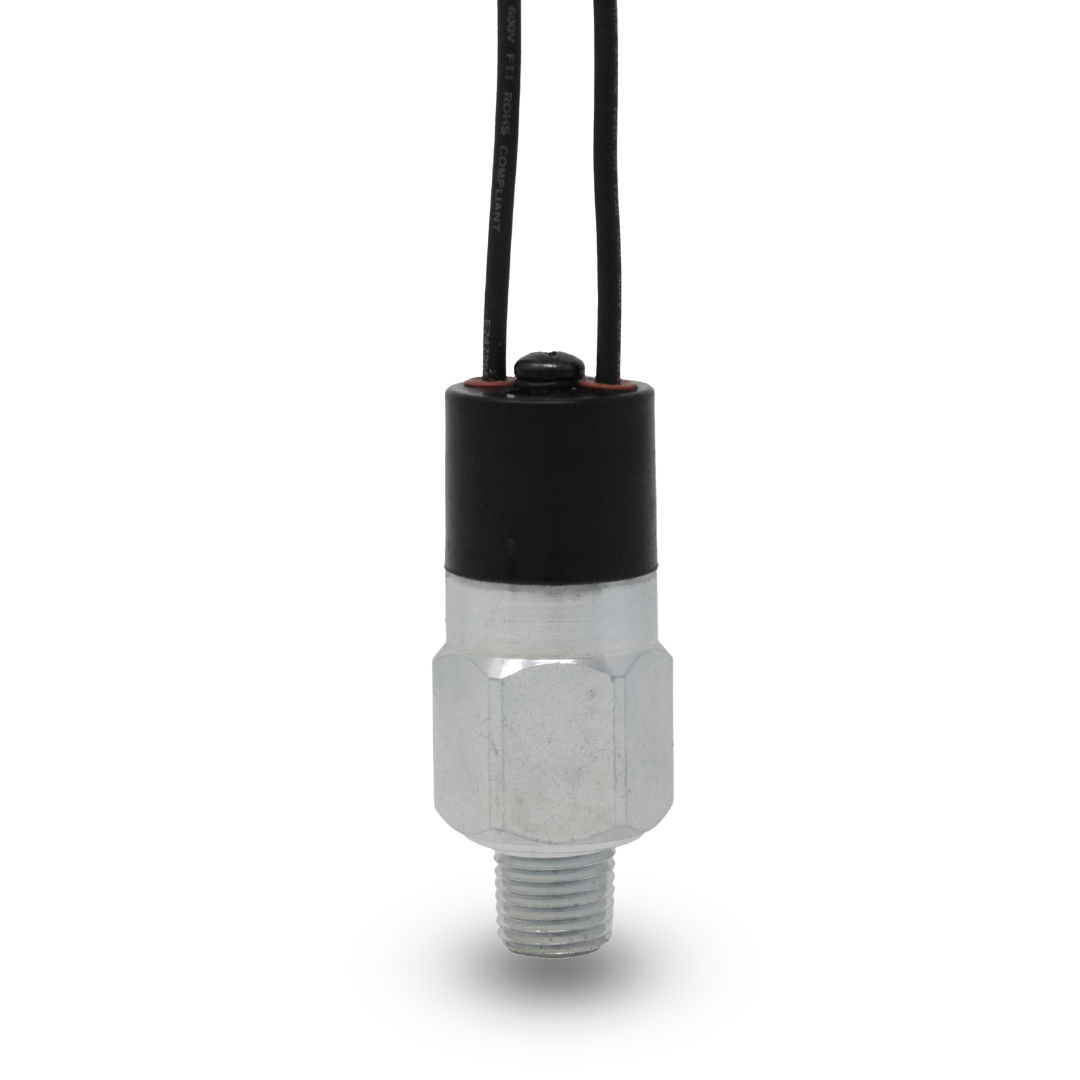

The Series SKBA (Field Adjustable) / SKBF (Factory Preset) Compact Pressure Switch is a miniature pressure switch designed for high-pressure applications in harsh environments, including mobile systems. Its diaphragm/piston combination ensures durability, while its well-sealed design provides ingress protection up to IP68 when paired with the flying lead option. Offering a variety of mechanical and electrical terminations, this switch is easy to integrate into systems for applications such as industrial tools, garbage trucks, and brake pressure switches. With a high mechanical life expectancy of 1 million cycles, a maximum overpressure rating of 9,000 PSI, and repeatability of plus or minus 3%, the SKBA/SKBF pressure switch delivers reliable, long-lasting performance in demanding conditions.
