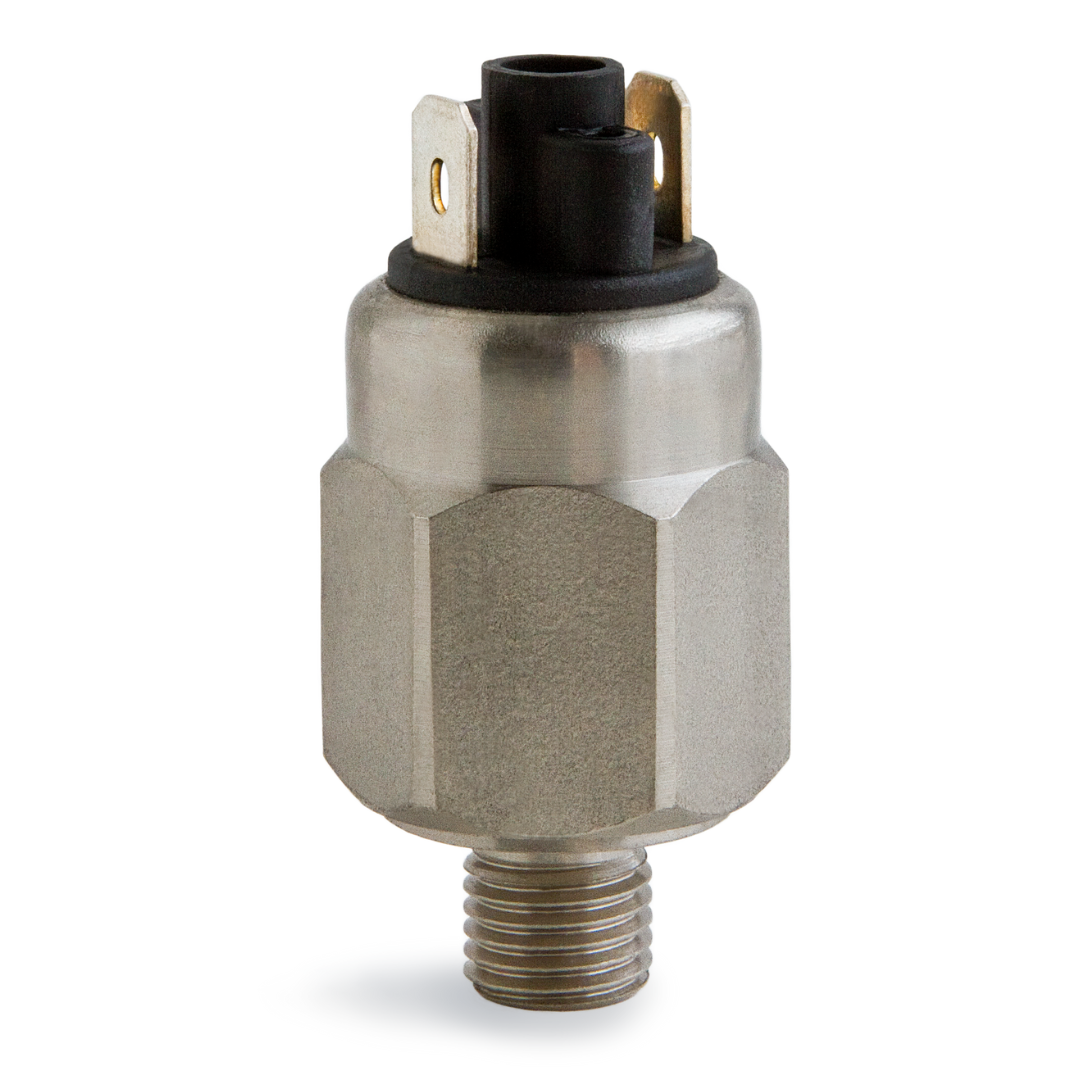

SKBA-5-4S-B-SP : Anfield Field Adjustable Compact Pressure Switch, SPST, Normally Closed, 700-1900psi, 0.25 (1/4") 7/16-20 SAE ORB Male, 1/4" Spade
Roll over image to zoom in Click on image to zoom
SKBA-5-4S-B-SP : Anfield Field Adjustable Compact Pressure Switch, SPST, Normally Closed, 700-1900psi, 0.25 (1/4") 7/16-20 SAE ORB Male, 1/4" Spade

SKBA-5-4S-B-SP : Anfield Field Adjustable Compact Pressure Switch, SPST, Normally Closed, 700-1900psi, 0.25 (1/4") 7/16-20 SAE ORB Male, 1/4" Spade

Save $6.22
Anfield SensorsSKU: SKBA-5-4S-B-SP
4-5 Weeks
Price:
$22.99 $29.21

Product Details

Data Sheet Click here to download
Usually Ships Within 4-5 Weeks
Factory Location Newnan, Georgia
Material Zinc Plated Steel
Port Size 0.25 (1/4") 7/16-20 SAE ORB Male
Pressure Rating 9000
Operating Temp Range -40°F to 248°F
Seal Material Nitrile
Pressure Range 700-1900psi
Solenoid Electrical Connection 1/4" Spade
Series SKBA
Country of Manufacture Canada
Height 0.945
Length 1.97
Width 0.945
Weight 0.16

Description

The Series SKBA (Field Adjustable) / SKBF (Factory Preset) Compact Pressure Switch is a miniature pressure switch designed for high-pressure applications in harsh environments, including mobile systems. Its diaphragm/piston combination ensures durability, while its well-sealed design provides ingress protection up to IP68 when paired with the flying lead option. Offering a variety of mechanical and electrical terminations, this switch is easy to integrate into systems for applications such as industrial tools, garbage trucks, and brake pressure switches. With a high mechanical life expectancy of 1 million cycles, a maximum overpressure rating of 9,000 PSI, and repeatability of plus or minus 3%, the SKBA/SKBF pressure switch delivers reliable, long-lasting performance in demanding conditions.
