Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 4-5 Weeks |
| Factory Location | Newnan, Georgia |
| Material | Zinc Plated Steel |
| Port Size | 0.25 (1/4") NPT Male |
| Pressure Rating | 9000 |
| Operating Temp Range | -20°F to 180°F |
| Seal Material | Nitrile |
| Pressure Range | 30-120psi |
| Solenoid Electrical Connection | DIN 43650A |
| Series | SMA |
| Country of Manufacture | Canada |
| Height | 1.97 |
| Length | 3.66 |
| Width | 1.97 |
| Weight | 0.5 |
Description

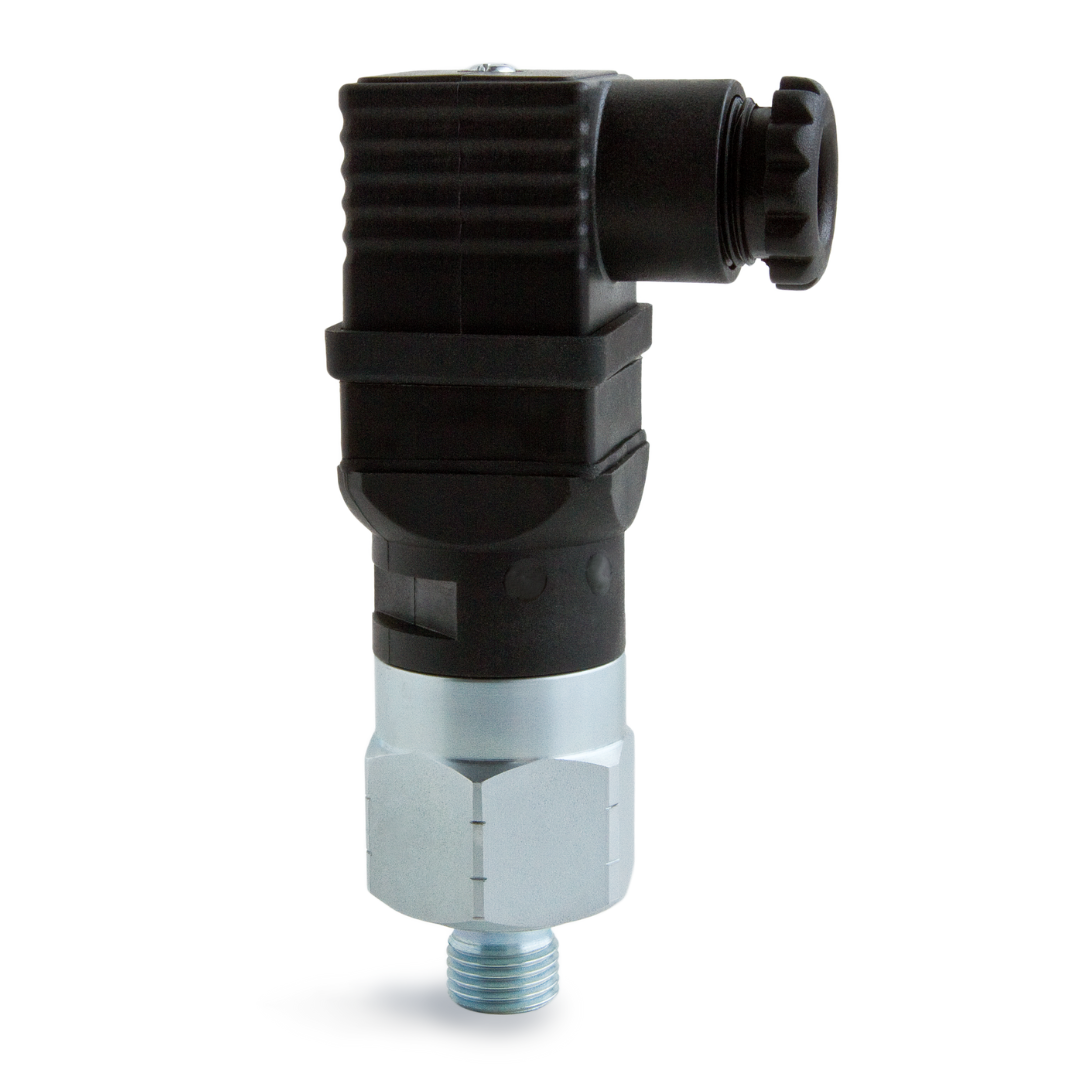

The Series SMA (Field Adjustable) / SMF (Factory Preset) High Pressure Switch is designed for hydraulic and pneumatic systems, providing reliable control in demanding applications. Utilizing a robust piston/diaphragm mechanism, this switch delivers exceptional accuracy and high proof pressures with zero leakage, ensuring longevity and durability. It features a snap-action micro switch, with options for factory preset or field adjustment, and comes with various protection ratings, including IP67 for harsh environments. Approved by UL and CE, this high-pressure switch is ideal for applications such as hydraulic system control, material handling, lubrication systems, and garbage compactors. Its versatility includes a wide temperature range and multiple diaphragm materials, making it a dependable choice for various industrial needs. With a maximum overpressure of 9,000 PSI and a repeatability of plus or minus 2 percent, the SMA/SMF switch is a top-tier solution for precise pressure management.
