Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 4-5 Weeks |
| Factory Location | Newnan, Georgia |
| Material | Brass |
| Port Size | 0.125 (1/8") NPT Male |
| Pressure Rating | 350 |
| Operating Temp Range | -20°F to 180°F |
| Seal Material | Nitrile |
| Pressure Range | 3-7psi |
| Solenoid Electrical Connection | DIN 43650A |
| Series | SPA |
| Country of Manufacture | Canada |
| Height | 1.97 |
| Length | 3.27 |
| Width | 1.97 |
| Weight | 0.26 |
Description

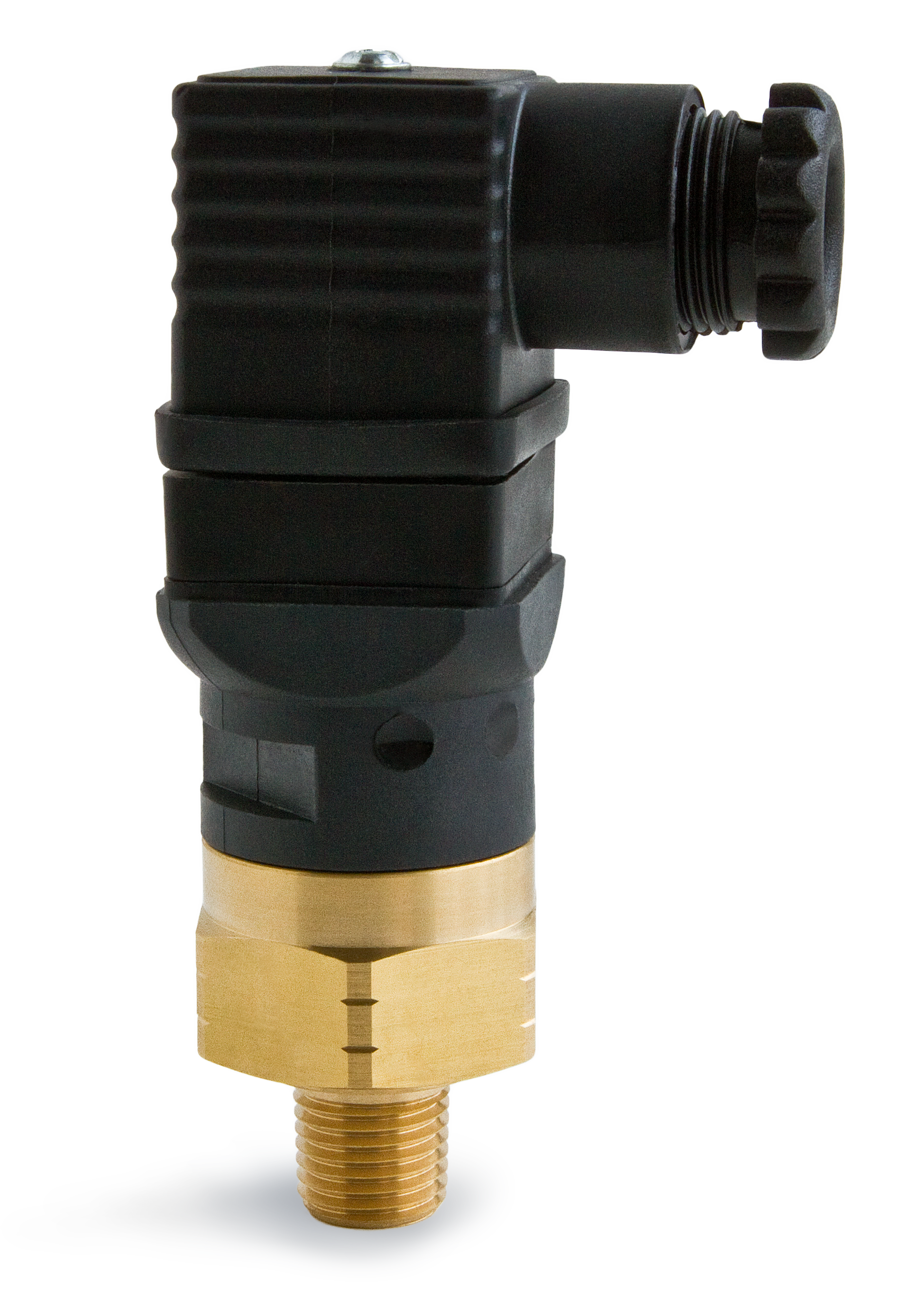

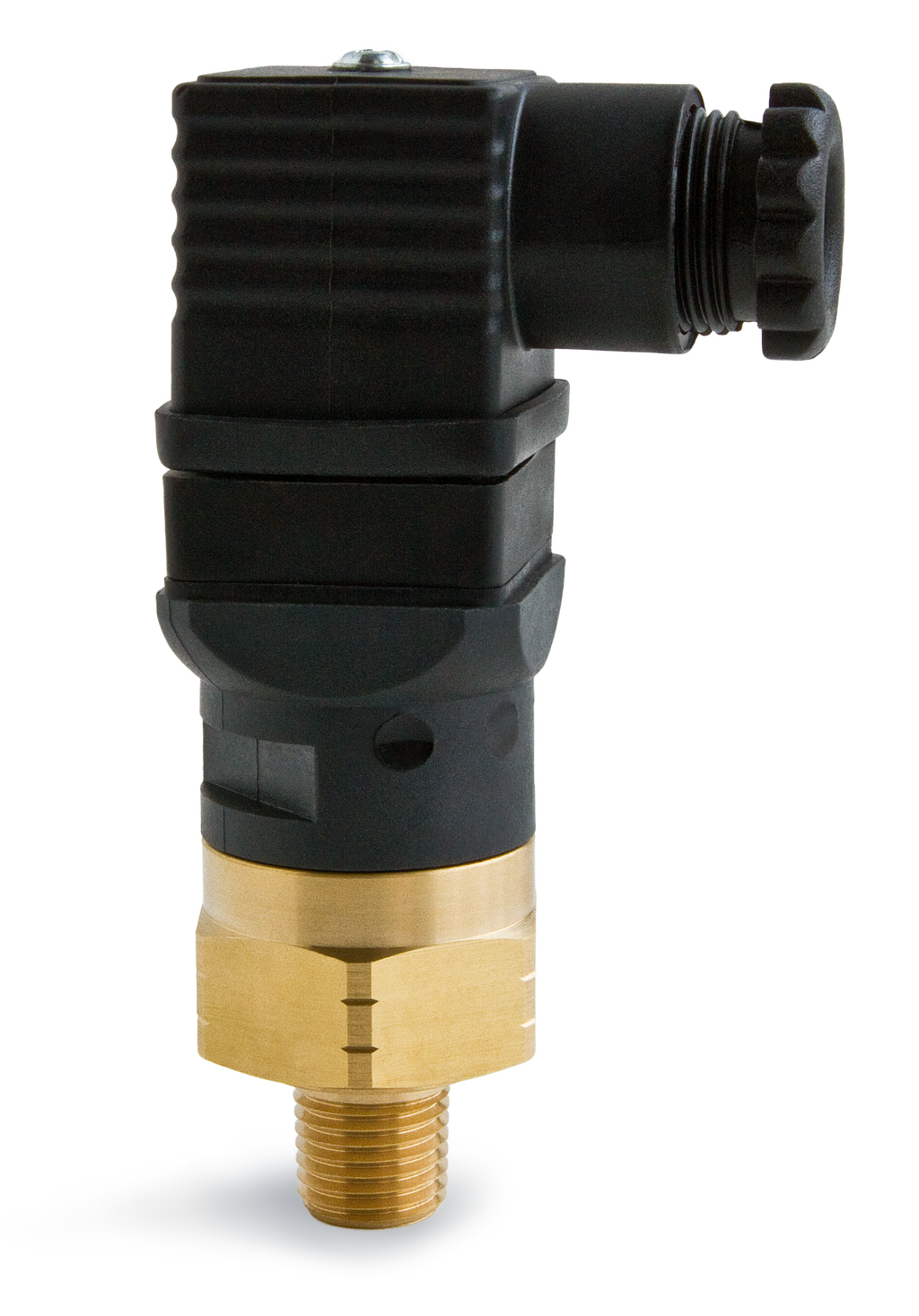

The Series SPA (Field Adjustable) / SPF (Factory Preset) Low Pressure Snap Action Switch is a compact, cost-effective pressure switch designed for low-pressure hydraulic, pneumatic, and water applications. Featuring a high-quality snap-action micro switch, it is field adjustable with an Allen screw and offers optional IP67-rated flying lead options for increased protection in harsh environments. With a wide temperature range, durable materials including lead-free brass and stainless steel, and a mechanical life expectancy of 1 million cycles, this switch is ideal for applications such as pneumatic system control, low-pressure filter monitoring, car washes, and gate control. Its robust design ensures reliable performance and long-lasting service, with a repeatability of plus or minus 2% and a maximum overpressure rating of 350 PSI.
