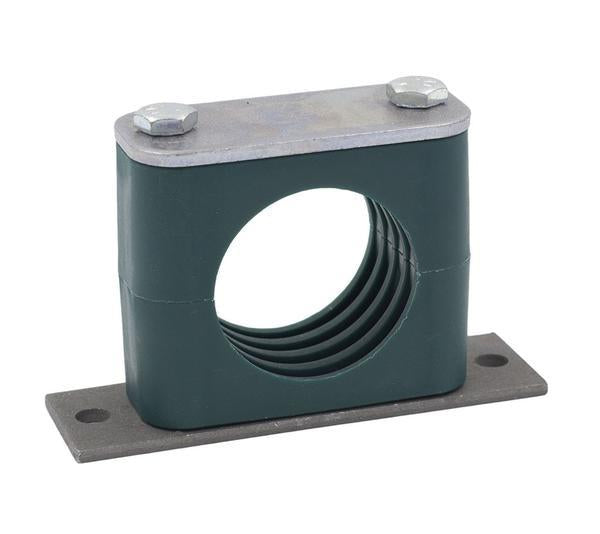

SPV-648.3-PP-DP-AS-U-W10 : Stauff Clamp, Elongated Weld Plate, 1.9" (48.3mm) OD, for 1.5" Pipe, Green PP Insert, Profiled Interior, Carbon Steel
Roll over image to zoom in Click on image to zoom
SPV-648.3-PP-DP-AS-U-W10 : Stauff Clamp, Elongated Weld Plate, 1.9" (48.3mm) OD, for 1.5" Pipe, Green PP Insert, Profiled Interior, Carbon Steel

SPV-648.3-PP-DP-AS-U-W10 : Stauff Clamp, Elongated Weld Plate, 1.9" (48.3mm) OD, for 1.5" Pipe, Green PP Insert, Profiled Interior, Carbon Steel

StauffSKU: 6100083859
4-6 Weeks
Price:
$9.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Waldwick, New Jersey
Nominal Pipe Size 1.5 inch Pipe
Outside Diameter 1.9" (48.3mm)
Hardware Material Carbon Steel
Clamp Style Elongated Weld Plate Clamp
Clamp Type Pipe Clamp
Clamp Group Size Stauff Group 6 (DIN 6)
Country of Manufacture Germany
Height 2.6
Length 3.39
Width 1.18
Weight 0.47 lbs

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Pipe Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
6100094388 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SPV-110A-PP-DP-AS-U-W5 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $15.99
SPV-110A-PP-H-DP-AS-U-W10 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $1.99
SPV-110A-PP-H-DP-AS-U-W5 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $15.99
6100083777 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SPV-213.5-PP-DP-AS-U-W5 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $16.99
SPV-213.5-PP-H-DP-AS-U-W10 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $2.99
SPV-213.5-PP-H-DP-AS-U-W5 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $16.99
6100083782 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SPV-217.2-PP-DP-AS-U-W5 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $16.99
SPV-217.2-PP-H-DP-AS-U-W10 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $2.99
SPV-217.2-PP-H-DP-AS-U-W5 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $16.99
6100083800 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100101138 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $27.99
6100182109 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SPV-321.3-PP-H-DP-AS-U-W5 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $17.99
6100083828 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100094410 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $34.99
SPV-426.9-PP-H-DP-AS-U-W10 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $10.99
SPV-426.9-PP-H-DP-AS-U-W5 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $22.99
6100083838 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $6.99
SPV-533.7-PP-H-DP-AS-U-W10 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
6100083847 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $6.99
SPV-542-PP-H-DP-AS-U-W10 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
6100083859 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $9.99
6100094426 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $45.99
6100083862 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $9.99
SPV-648.3-PP-H-DP-AS-U-W5 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $29.99
6100083866 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $17.99
6100083868 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 7 (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $82.99
6100094433 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $17.99
6100153258 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7 (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $82.99
6100094435 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $23.99
SPV-888.9-PP-DP-AS-U-W5 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $68.99
SPV-888.9-PP-H-DP-AS-U-W10 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $19.99
6100162886 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $111.99
