Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Waukesha, Wisconsin |
| Material | Zytel Case 316L SS Internals |
| Operating Temp Range | -40°F to 150°F |
| Gauge Face Size | 3.5" |
| Gauge Pressure Range | 0-15000psi |
| Gauge Style Selection | Center Back Mount |
| Gauge Connection | 1/4" NPT |
| Height | 2.4 |
| Length | 4.2 |
| Width | 4.2 |
| Weight | 2 |
Description

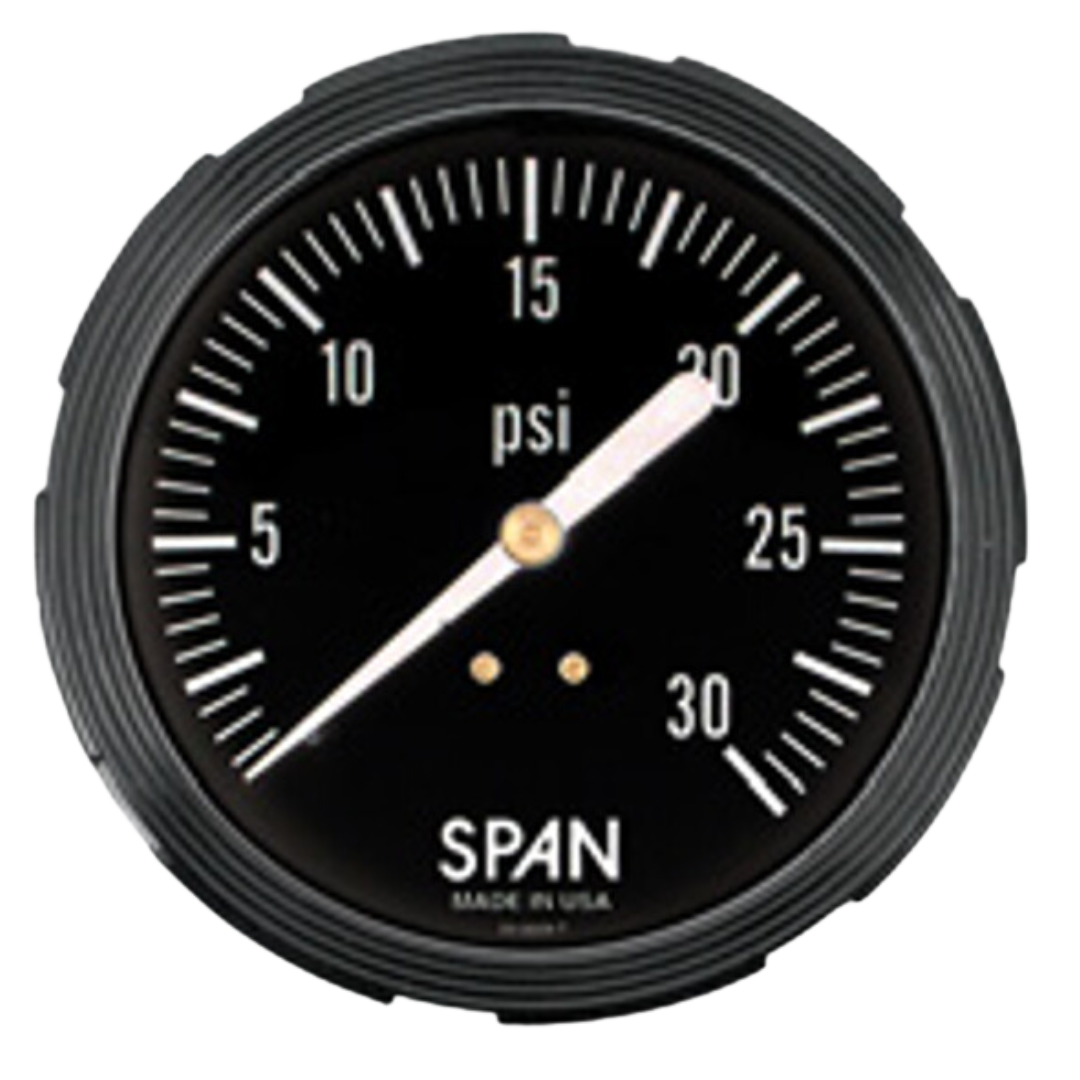

The SPAN Liquid Filled 3.5" Subsea Gauge is a high-performance pressure gauge engineered for rugged environments such as subsea, ROV, military, and marine applications. With a 3.5" face, this gauge uses a liquid-filled design to dampen pointer movement, ensuring accurate readings and extended durability in high-shock and vibration conditions. The Zytel case and ring offer excellent resistance to chemicals, weather, and corrosion, while the patented internal compensating diaphragm (ICD) compensates for temperature and external pressure fluctuations, making it ideal for deep-water applications. It features a white-on-black dial, stainless steel internals, and is temperature and pressure compensated. The gauge can be customized with options such as freeze-proof KEM-X Socket Savers and can be serialized and certified to NIST accuracy standards.
