Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Waukesha, Wisconsin |
| Material | Zytel Case 316L SS Internals |
| Operating Temp Range | -40°F to 150°F |
| Gauge Face Size | 4.5" |
| Gauge Pressure Range | 0-15000psi |
| Gauge Style Selection | Panel Mount U-Clamp |
| Gauge Connection | 1/4" NPT |
| Height | 2.6 |
| Length | 5.2 |
| Width | 5.2 |
| Weight | 2 |
Description

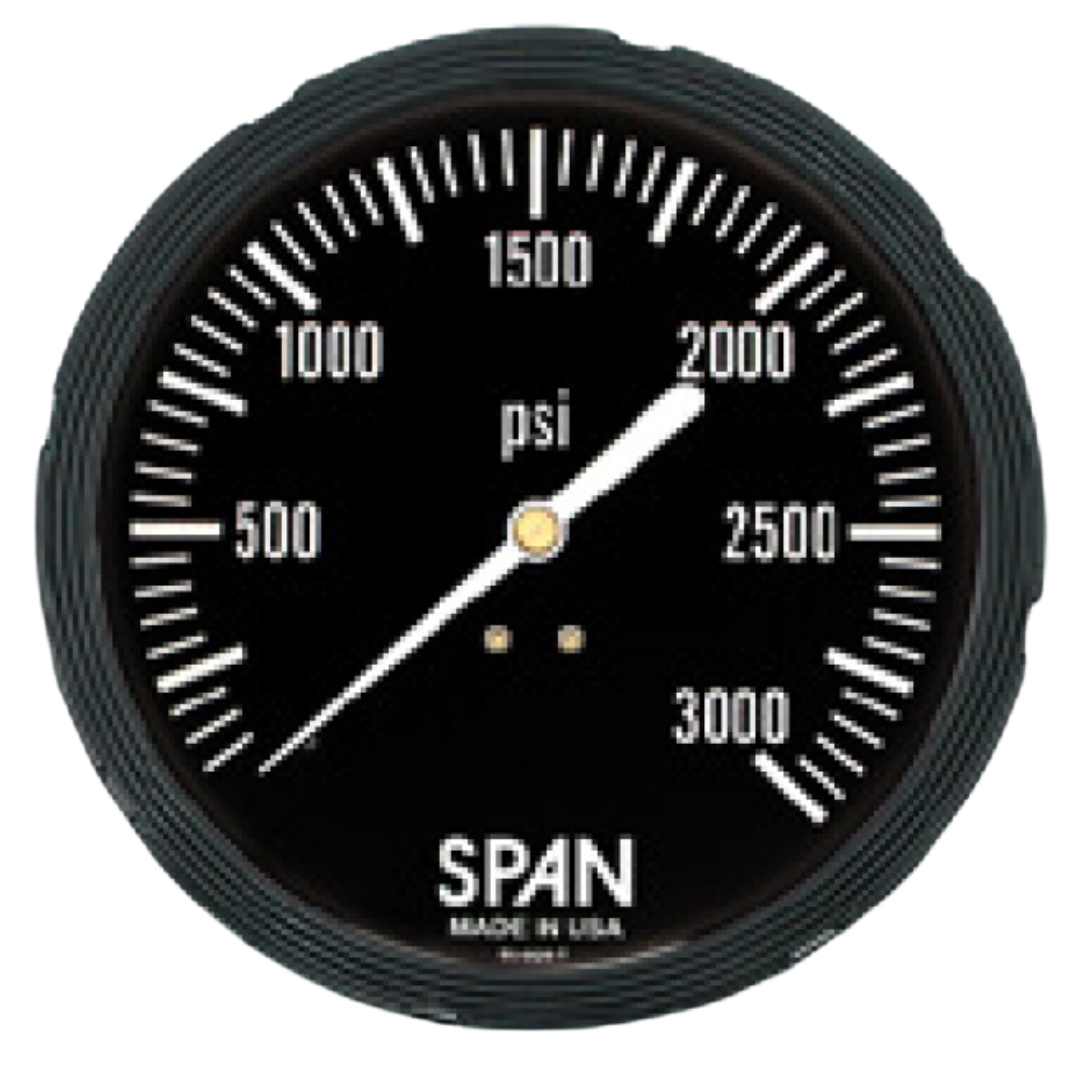

The SPAN Liquid Filled 4.5" Subsea Gauge is a robust, high-accuracy pressure gauge designed for demanding subsea, ROV, military, and marine applications. Featuring a 4.5" face, this gauge utilizes a liquid-filled system to reduce pointer movement, ensuring stable readings and enhanced durability in high-shock and vibration environments. Its Zytel case and ring offer excellent protection against chemicals, weather, and corrosion. The patented internal compensating diaphragm (ICD) maintains accuracy by compensating for temperature fluctuations and external pressure changes, making it essential for deep-water use. The gauge includes a white-on-black dial, stainless steel internals, and is fully temperature and pressure compensated. Optional features include a freeze-proof KEM-X Socket Saver and NIST traceable certifications, making this gauge a versatile and reliable choice for challenging environments.
