Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Waukesha, Wisconsin |
| Material | Zytel Case 316L SS Internals |
| Operating Temp Range | -40°F to 150°F |
| Gauge Face Size | 2.5" |
| Gauge Pressure Range | 0-1000psi |
| Gauge Style Selection | Stem Mount Bottom |
| Gauge Connection | 1/4" NPT |
| Height | 1.41 |
| Length | 4.5 |
| Width | 3.2 |
| Weight | 2 |
Description

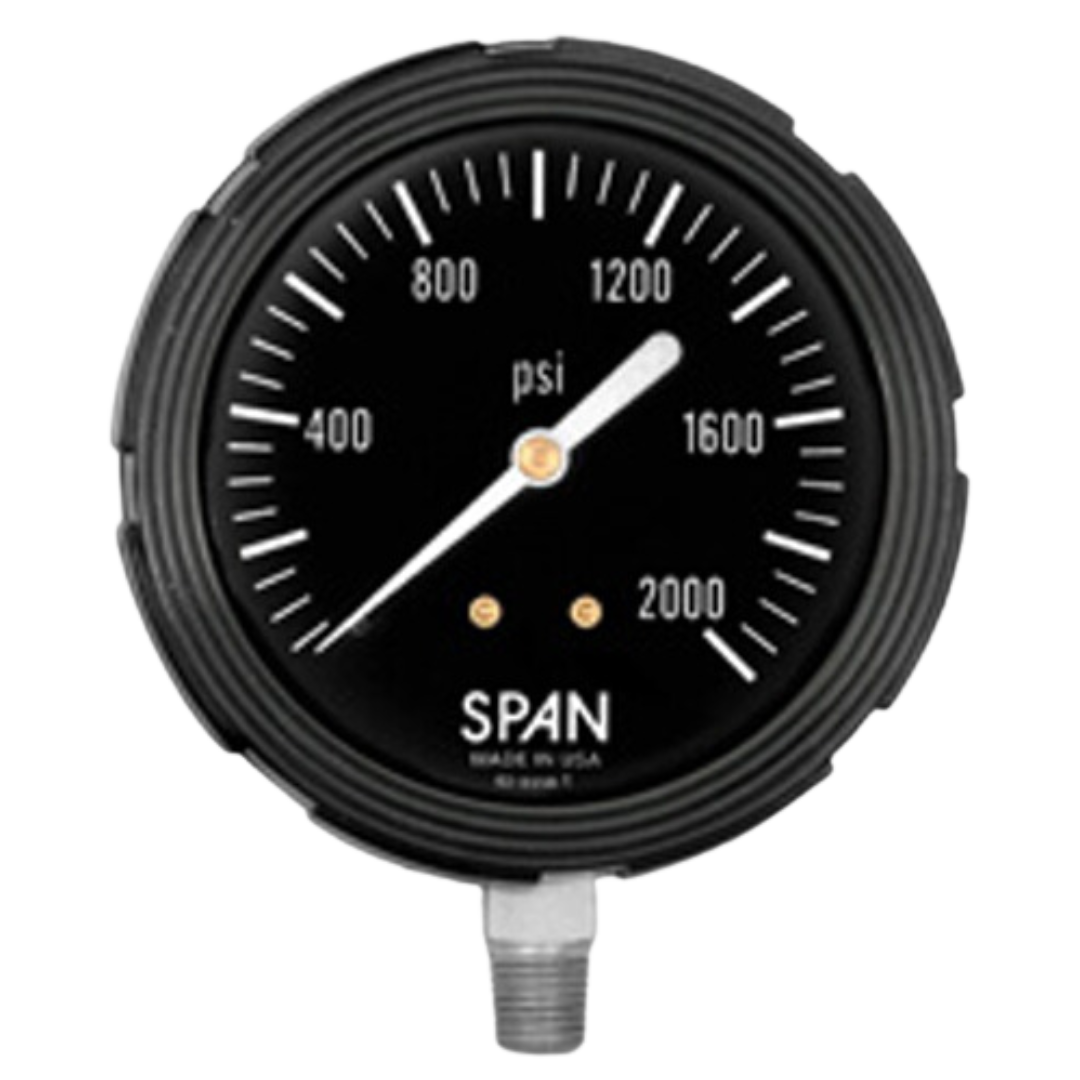

The SPAN Liquid Filled 2.5" Subsea Gauge is a high-performance pressure gauge designed for harsh environments, offering exceptional durability and accuracy in subsea, ROV, military, and marine applications. The gauge features a liquid-filled design that dampens pointer movement, reducing the effects of shock and vibration while improving reading stability. Its Zytel case and ring provide resistance to chemicals, weather, and corrosion, making it ideal for deep-water applications. Equipped with a patented internal compensating diaphragm (ICD), the gauge compensates for temperature fluctuations and external pressure, ensuring reliable performance even in extreme conditions. Available options include a freeze-proof KEM-X Socket Saver and traceable certification to NIST standards. This robust, versatile gauge is essential for any subsea or ROV equipment, offering both standard and customizable features.
