Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Shape | Kit |
| Country of Manufacture | Canada |
| Length | N/A |
| Side 1 Gender | N/A |
| Side 1 Size | N/A |
| Side 1 Type | N/A |
| Side 2 Gender | N/A |
| Side 2 Size | N/A |
| Side 2 Type | N/A |
| Side 3 Gender | N/A |
| Side 3 Type | N/A |
Description

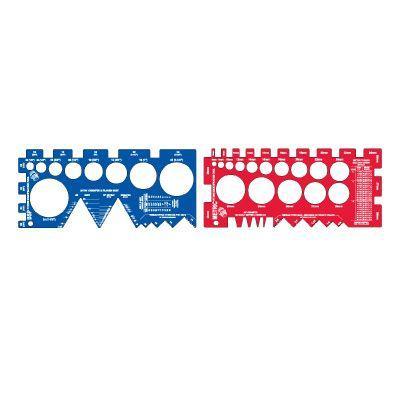

The BSPP & Metric Thread Gauge Kit is a convenient and affordable solution to identifying Metric and British threaded fittings in the field, shop, or store front. Featuring one British (BSPP, BSPT, JIS) tool and one Metric (MM, DIN, Kobelco, Komatsu) tool in a vinyl pouch, this tool allows you to identify internal threads, external threads, thread pitch, as well as chamfer and nose cone angles specific to JIS, BSPP, DIN, Komatsu, Kobelco, and 30/60 degree Metric. Custom branding available.
Sizes Covered
BSPP/BSPT/JIS Tool (x1):
02 (1/8") 1/8-28
04 (1/4") 1/4-19
06 (3/8") 3/8-19
08 (1/2") 1/2-14
10 (5/8)" 5/8-14
12 (3/4") 3/4-14
16 (1") 1-11
20 (1 1/4") 1 1/4-11
24 (1 1/2") 1 1/2-11
Metric/DIN Tube/Kobelco/Komatsu Tool (x1):
M6 x 0.75
M6 x 1.0
M8 x 0.75
M8 x 1.0 / LL04
M10 x 1.0 / LL06
M10 x 1.25
M12 x 1.0 / LL08
M12 x 1.5 / L06
M14 x 1.0 / LL10
M14 x 1.5 / L08 & S06
M16 x 1.0 / LL12
M16 x 1.5 / L10 & S08
M18 x 1.5 / L12 & S10
M20 x 1.5 / S12
M22 x 1.5 / L15 & S14
M24 x 1.5 / S16
M26 x 1.5 / L18
M27 x 2.0
M30 x 2.0 / L22 & S20
M33 x 2.0
M36 x 2.0 / L28 & S25
Thread Pitches Covered
MM Between Threads:
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
Threads Per Inch:
28 TPI
19 TPI
14 TPI
11 TPI
