Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Shape | Kit |
| Country of Manufacture | Canada |
| Length | N/A |
| Side 1 Gender | N/A |
| Side 1 Size | N/A |
| Side 1 Type | N/A |
| Side 2 Gender | N/A |
| Side 2 Size | N/A |
| Side 2 Type | N/A |
| Side 3 Gender | N/A |
| Side 3 Type | N/A |
Description

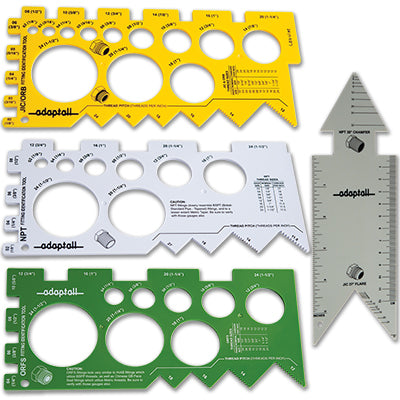

The JIC, NPT, ORB, & ORFS Thread Gauge Kit is a convenient and affordable solution to identifying domestic threaded fittings in the field, shop, or store front. Featuring 4 tools in a vinyl pouch, this tool allows you to identify internal threads, external threads, thread pitch, as well as chamfer and nose cone angles specific to JIC and NPT. Custom branding available.
Sizes Covered
JIC & ORB Tool (x1):
02 (1/8") 5/16-24
03 (3/16") 3/8-24
04 (1/4") 7/16-20
05 (5/16") 1/2-20
06 (3/8") 9/16-18
08 (1/2") 3/4-16
10 (5/8") 7/8-14
12 (3/4") 1 1/16-12
14 (7/8") 1 3/16-12
16 (1") 1 5/16-12
20 (1 1/4") 1 5/8-12
24 (1 1/2") 1 7/8-12
NPT Tool (x1):
02 (1/8") 1/8-27
04 (1/4") 1/4-18
06 (3/8") 3/8-18
08 (1/2") 1/2-14
12 (3/4") 3/4-14
16 (1") 1-11.5
20 (1 1/4") 1 1/4-11.5
24 (1 1/2") 1 1/2-11.5
ORFS Tool (x1):
04 (1/4") 9/16-18
06 (3/8") 11/16-16
08 (1/2") 13/16-16
10 (5/8") 1-14
12 (3/4") 1 3/16-12
16 (1") 1 7/16-12
20 (1 1/4") 1 11/16-12
24 (1 1/2") 2-12
JIC & NPT Angle Gauge & Ruler (x1)
Thread Pitches Covered (Threads Per Inch):
27 TPI
24 TPI
20 TPI
18 TPI
16 TPI
14 TPI
12 TPI
11.5 TPI
