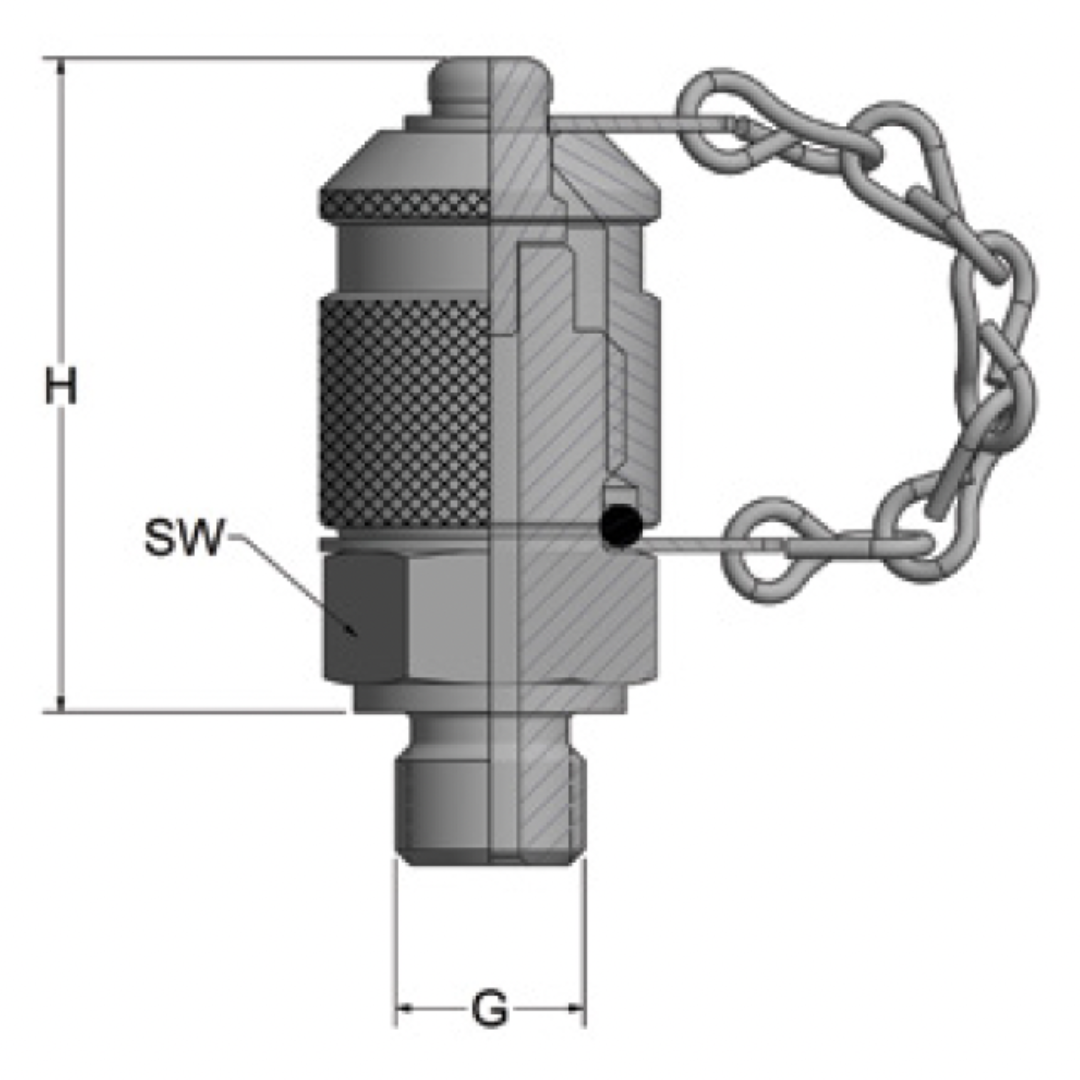

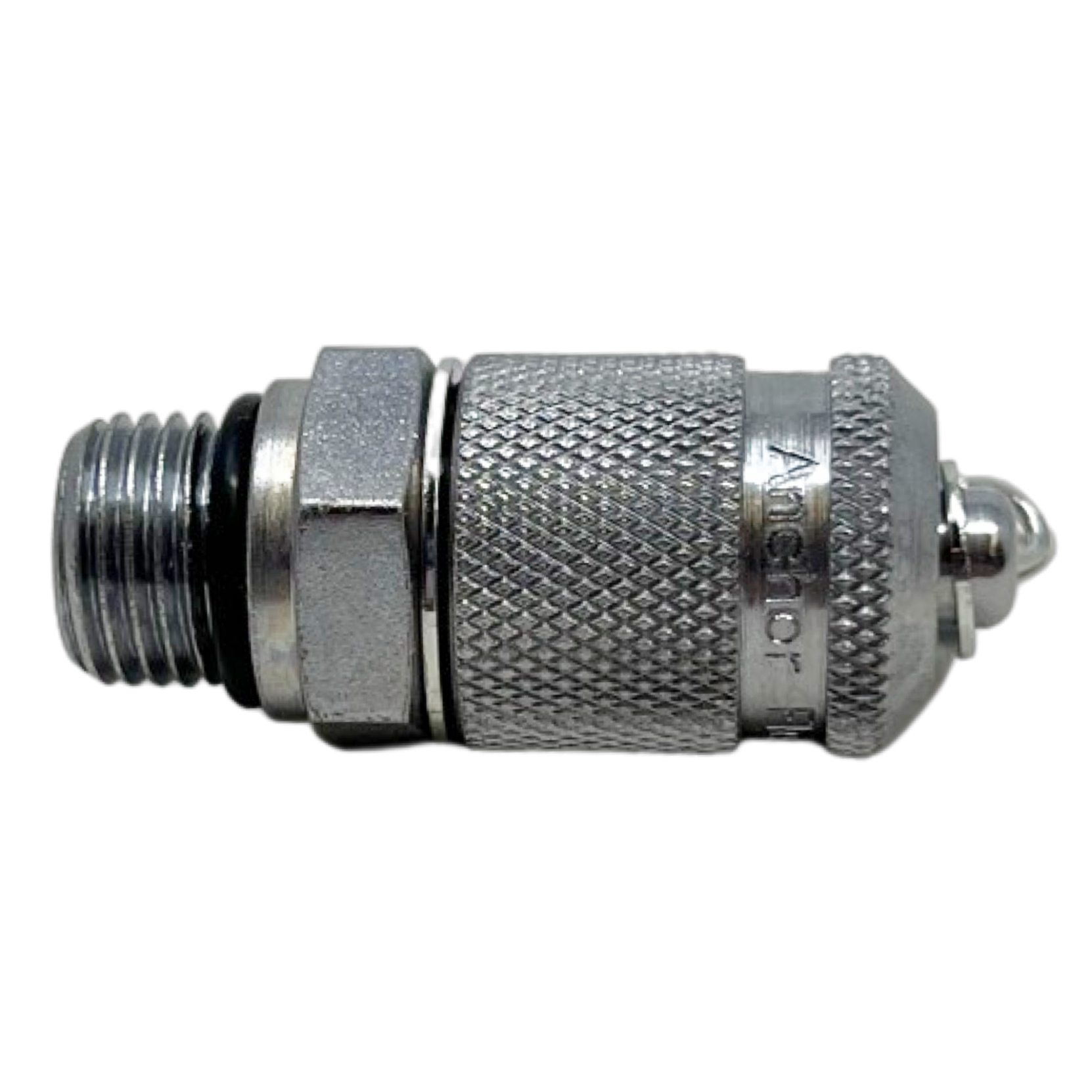

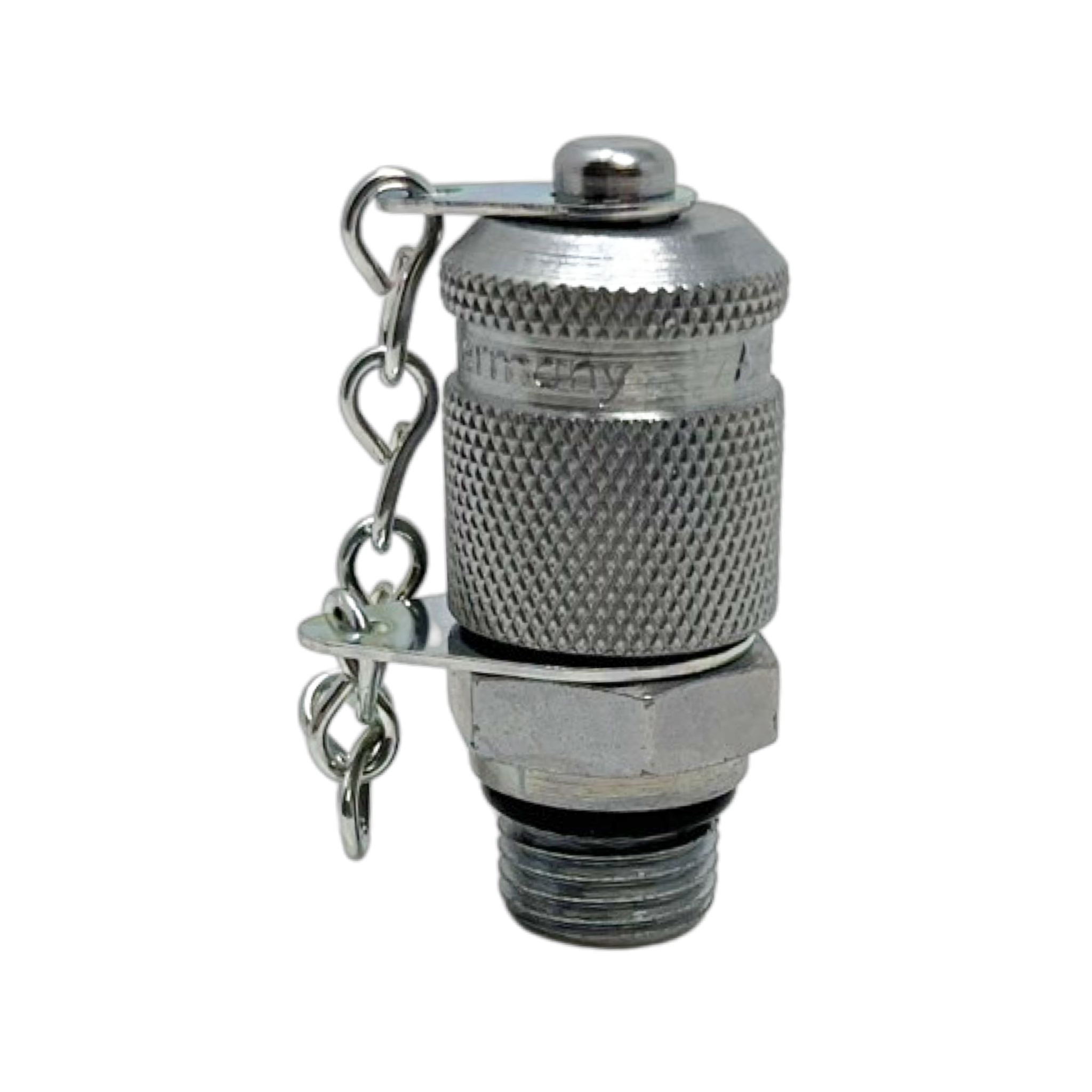

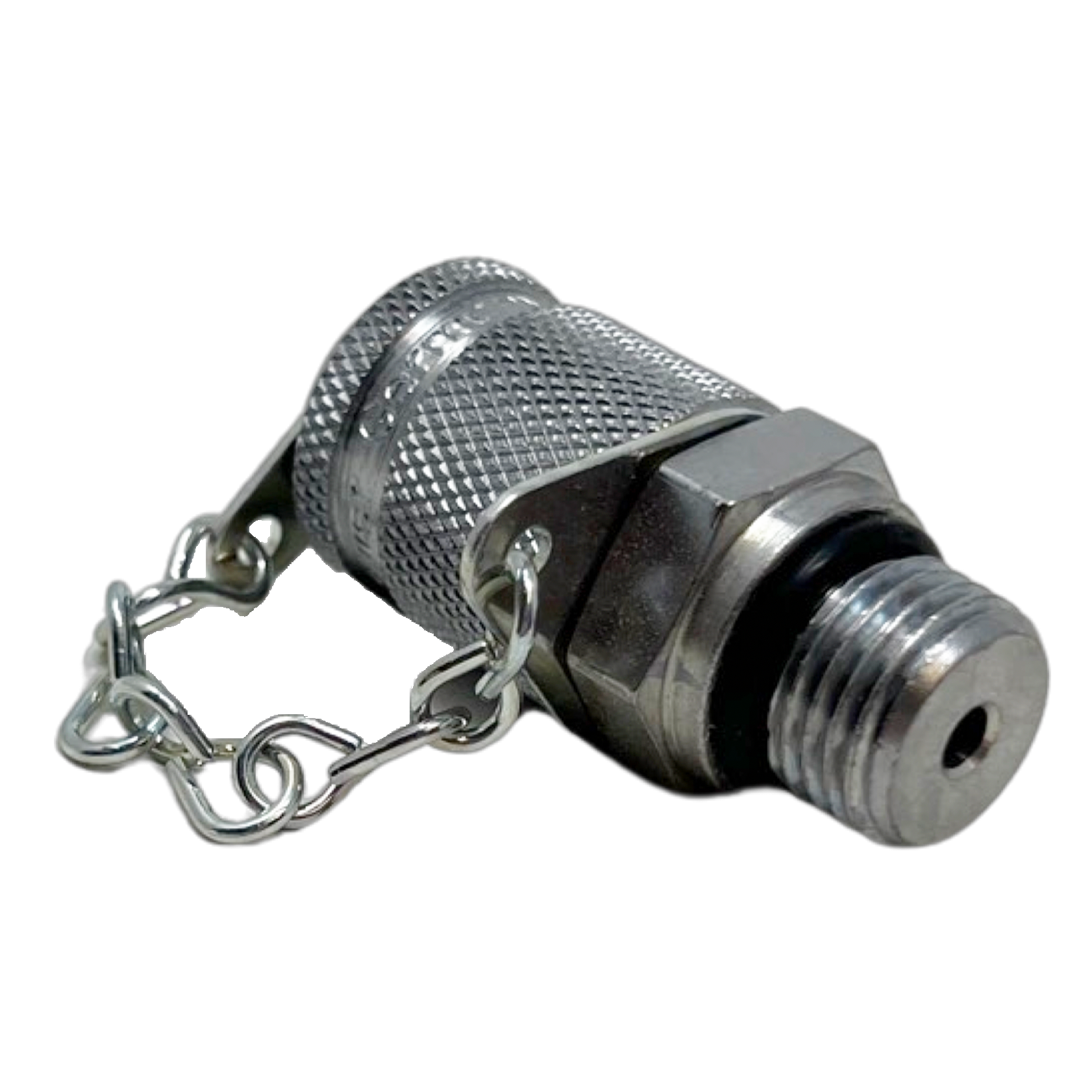

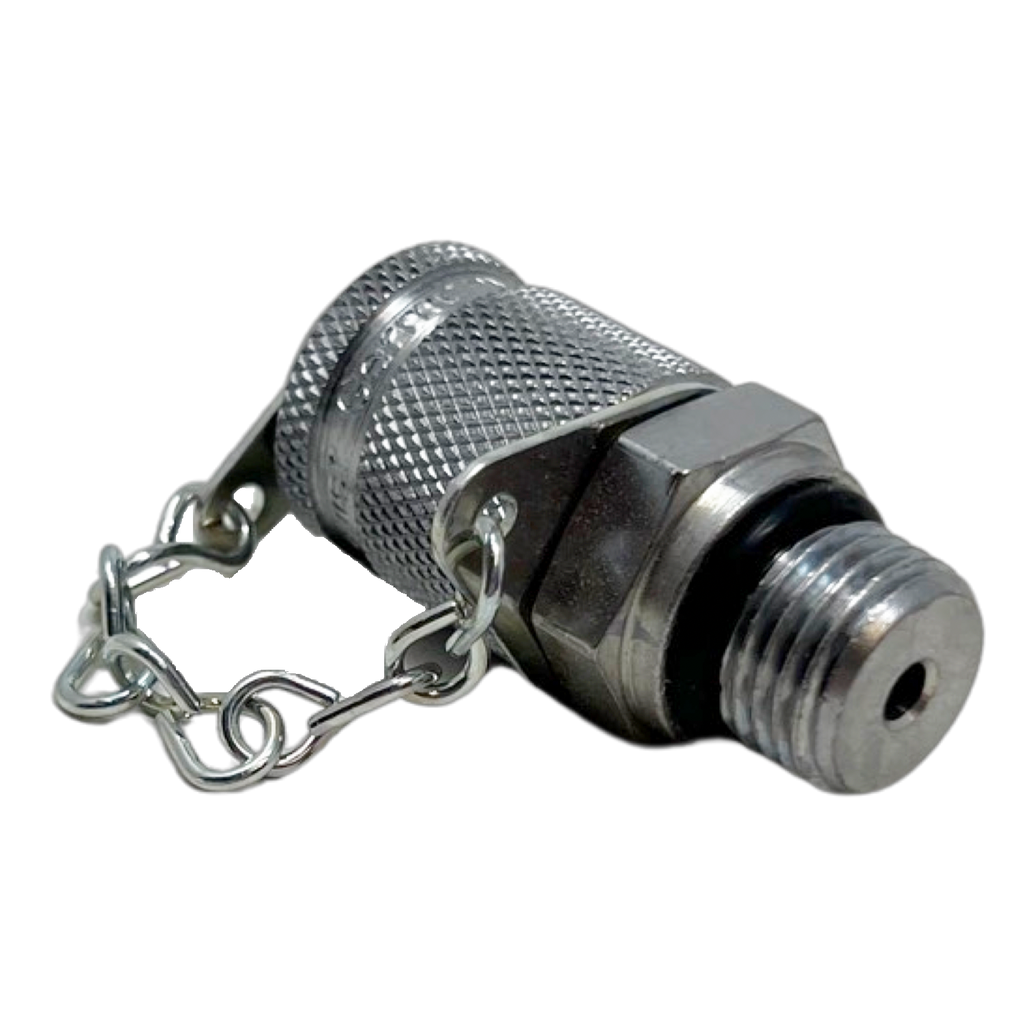

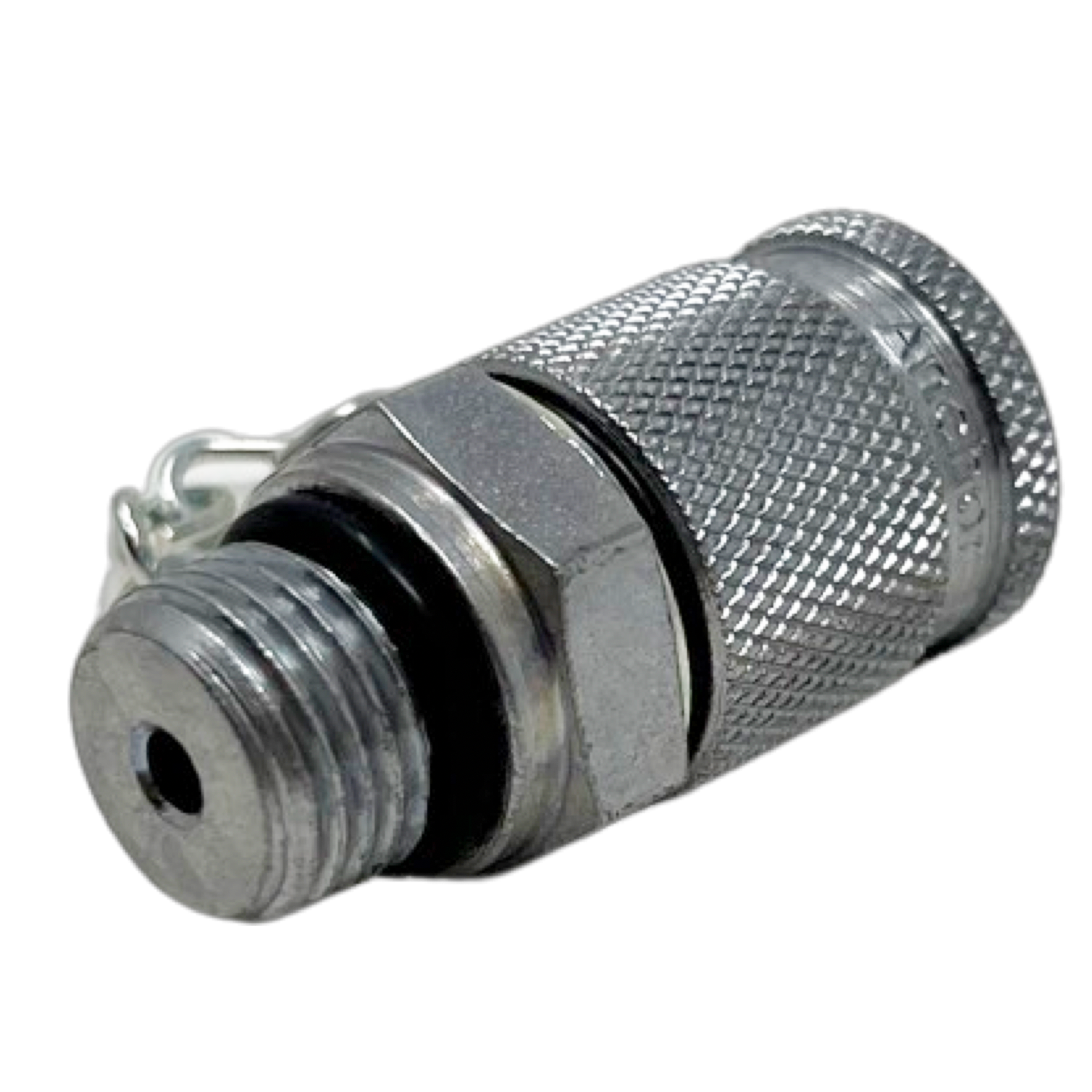

TPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon Steel
TPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon Steel
TPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon Steel
TPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon Steel
Roll over image to zoom in Click on image to zoom
TPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon SteelTPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon SteelTPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon SteelTPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon Steel

TPPM1620CBS#4 : Anchor Test Point, 9000psi Rated, 1/4" SAE ORB, Buna Seals, Zinc/Nickel Plated Carbon Steel

Save $1.11
Anchor Fluid PowerSKU: TPPM1620CBS#4
4-6 Weeks
Price:
$9.99 $11.10

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Canton, Michigan
Material Carbon Steel
Port Size -4 (1/4") SAE
Seal Material Buna

Description

Anchor Fluid Power test point fittings allow for the safe and easy connection of gauges to monitor hydraulic system pressure. Gauges and hoses can be attached without tools and while the system is under pressure. Test point fittings can also be used for bleeding air from the system and taking fluid samples for analysis. An o-ring seals the protective metal cap to prevent contamination and loosening due to vibration.
