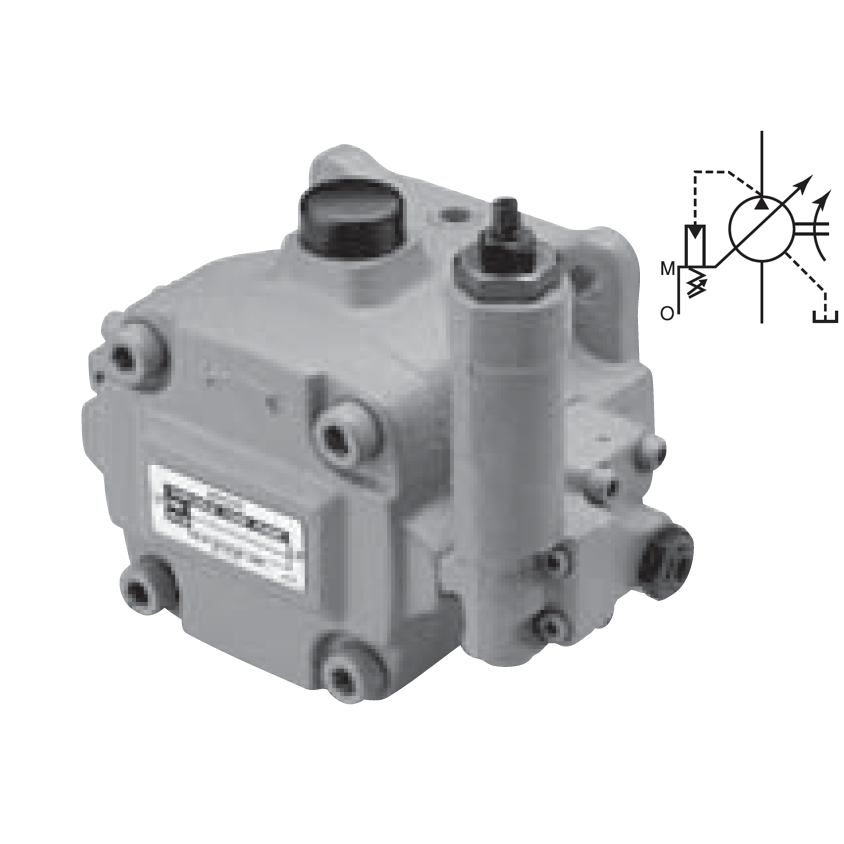

VDC-2B-1A3-E35 : Nachi Variable Vane Pump, SAE B 2-Bolt, 1" Bore x 3/16" Key, 29.49cc, 14.2GPM, 290 to 1000psi Range
Roll over image to zoom in Click on image to zoom
VDC-2B-1A3-E35 : Nachi Variable Vane Pump, SAE B 2-Bolt, 1" Bore x 3/16" Key, 29.49cc, 14.2GPM, 290 to 1000psi Range

VDC-2B-1A3-E35 : Nachi Variable Vane Pump, SAE B 2-Bolt, 1" Bore x 3/16" Key, 29.49cc, 14.2GPM, 290 to 1000psi Range

Save $330.01
NachiSKU: VDC-2B-1A3-E35
1-3 Days
3
Price:
$1,218.99 $1,549.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 3
Factory Location Greenwood, Indiana
Shaft Size 1" Bore x 3/16" Key
Shaft Type Keyed
Pressure Rating 2000
Rotation Clockwise
Displacement 30
Gpm At 1800 Rpm 14.2
Max Speed 1800
Inlet Port #16 SAE (1")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Pressure Range 290 to 1000psi
Drain Port #4 SAE (1/4")
Port Orientation Side Ported
Country of Manufacture Japan
Height 6.77
Length 10.61
Width 8.84
Weight 55

Description

The Nachi VDC vane pump offers highly efficient and stable high-pressure operation up to a peak pressure of 3000psi. Innovative pressure control and pressure balance mechanisms combine with an original 3-point ring support system to dramatically improve high-pressure performance of these pumps.
