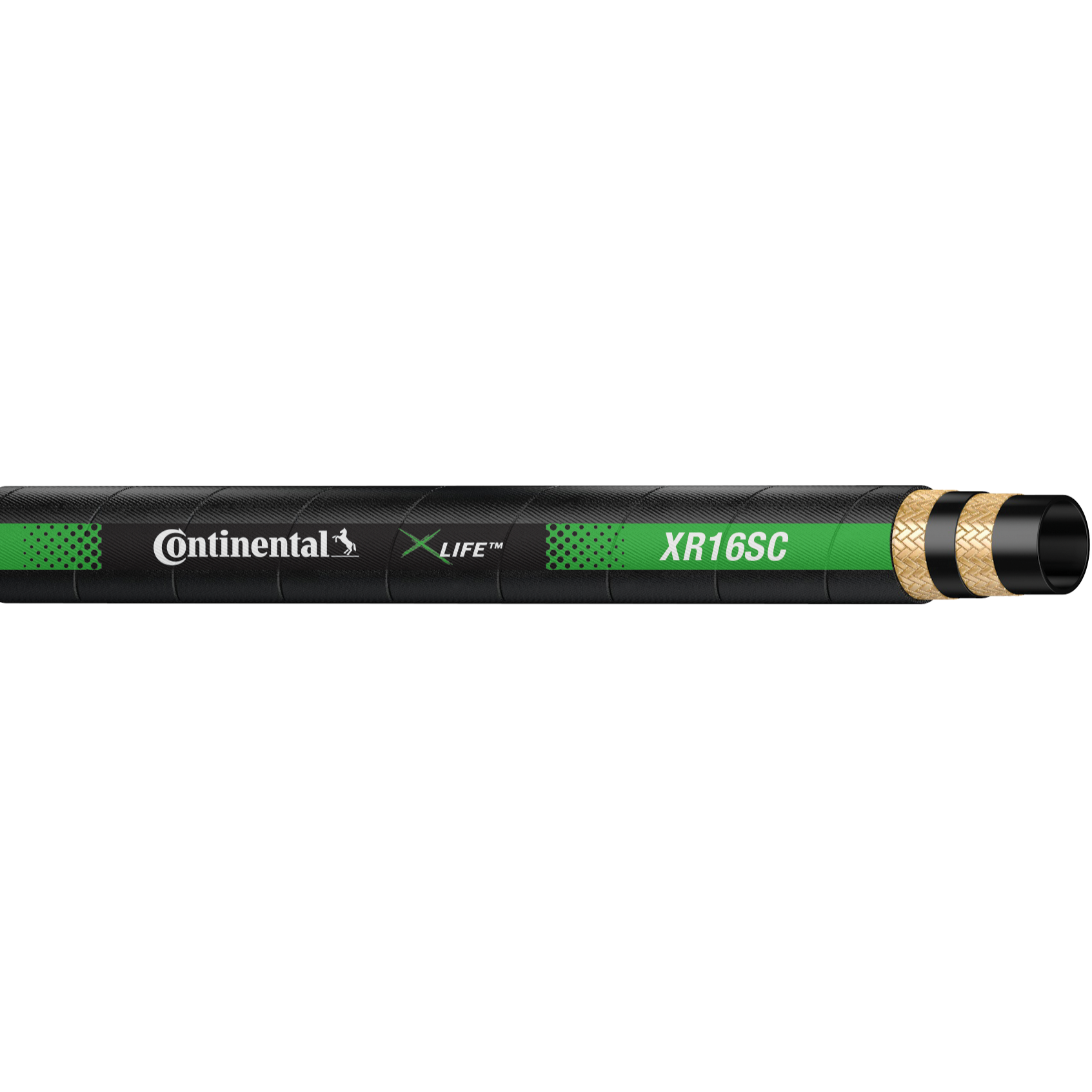

XR16SC-08 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.5 (1/2") ID, 5000 Rated, BY THE INCH
XR16SC-08 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.5 (1/2") ID, 5000 Rated, BY THE INCH
Roll over image to zoom in Click on image to zoom
XR16SC-08 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.5 (1/2") ID, 5000 Rated, BY THE INCHXR16SC-08 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.5 (1/2") ID, 5000 Rated, BY THE INCH

XR16SC-08 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.5 (1/2") ID, 5000 Rated, BY THE INCH

Save $0.29
ContiTech Continental HoseSKU: XR16SC-08
Same Day
13618
Price:
$0.51 $0.80

Product Details

Data Sheet Click here to download
Usually Ships Within Same Day
Factory Location Moberly, Missouri
Pressure Rating 5800
Inside Diameter 0.25 (1/4")
Burst Rating 23200
Bend Radius 2.0
Hose Style 2-Braid High Tensile Steel Wire
Series XR16SC
Outside Diameter 0.54
Operating Temp -40F to +212F
Approvals SAE 100R16, EN 857 2SC, SAE J1942 US Coast Guard
Country of Manufacture United States
Safety Note 4:1
