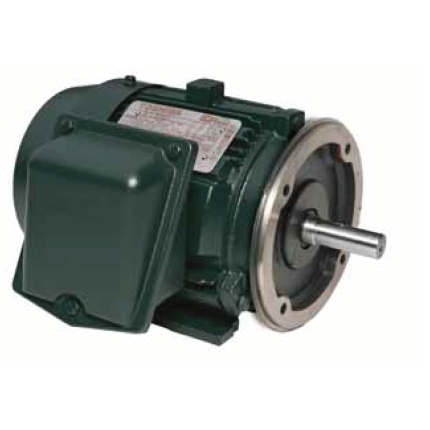

Y754SDSR44A-P : Toshiba EQP Global SD Motor, C-Face, 7.5HP, 1800RPM, 230/460V, 213TC Frame
Roll over image to zoom in Click on image to zoom
Y754SDSR44A-P : Toshiba EQP Global SD Motor, C-Face, 7.5HP, 1800RPM, 230/460V, 213TC Frame

Y754SDSR44A-P : Toshiba EQP Global SD Motor, C-Face, 7.5HP, 1800RPM, 230/460V, 213TC Frame

Save $318.01
ToshibaSKU: Y754SDSR44A-P
1-3 Days
511
Price:
$1,016.99 $1,335.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 511
Factory Location Houston, Texas
Horsepower 7.5
Rpm 1800
Motor Voltage 230/460
Electric Motor Frame Size 213TC
Electric Motor Type EQP GLOBAL SD C-FACE FOOTLESS
Fl Amps 19.6/9.8
Nominal Fl Efficiency 91.8
Height 13
Length 19.5
Width 13
Weight 190

Description

Toshiba’s general purpose, totally enclosed fan cooled, C-Face motor series is Toshiba’s next generation motor product line. The TEFC C-Face motor is available in footed and footless designs, and is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. These motors have a three year factory warranty.
