Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 182 Days |
| Factory Location | Louisville, Kentucky |
| Installation & Maintenance Manual | |
| Port Size | 3/8" PTF |
| Micron | 5-Micron |
| O Ring Seals | Nitrile rubber |
| Pressure Rating | 150 |
| Operating Temp Range | -30 to 122 F |
| Gauge Connection | With Gauge |
| Body Material | Aluminum |
| Relief Option | Relieving |
| Outlet Pressure Range | 4 to 145psi |
| Bonnet | Aluminum |
| Flow Scfm | 163 |
| Bowl Material | Polycarbonate with metal bowl guard |
| Drain Type | Manual Drain |
| Series | B74G |
| Country of Manufacture | United Kingdom |
| Weight | 1.76 |
Description
The Norgren filter regulator unit is our most popular single compressed air preparation unit. The filter regulator combines accurate pressure adjustment with bulk water (moisture) and particle removal (5 or 40 microns rating) in one unit. This benefits you by saving space and pneumatic connections for the same or improved performance.

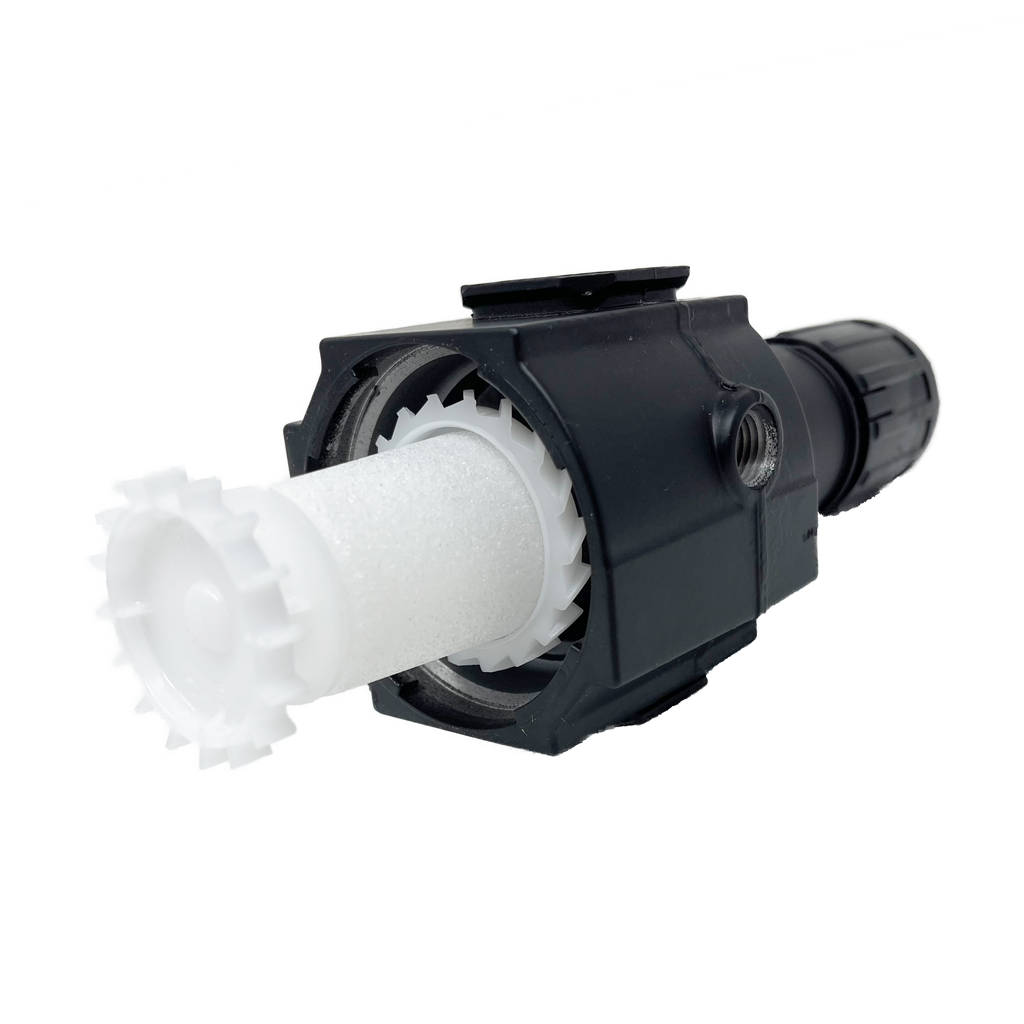

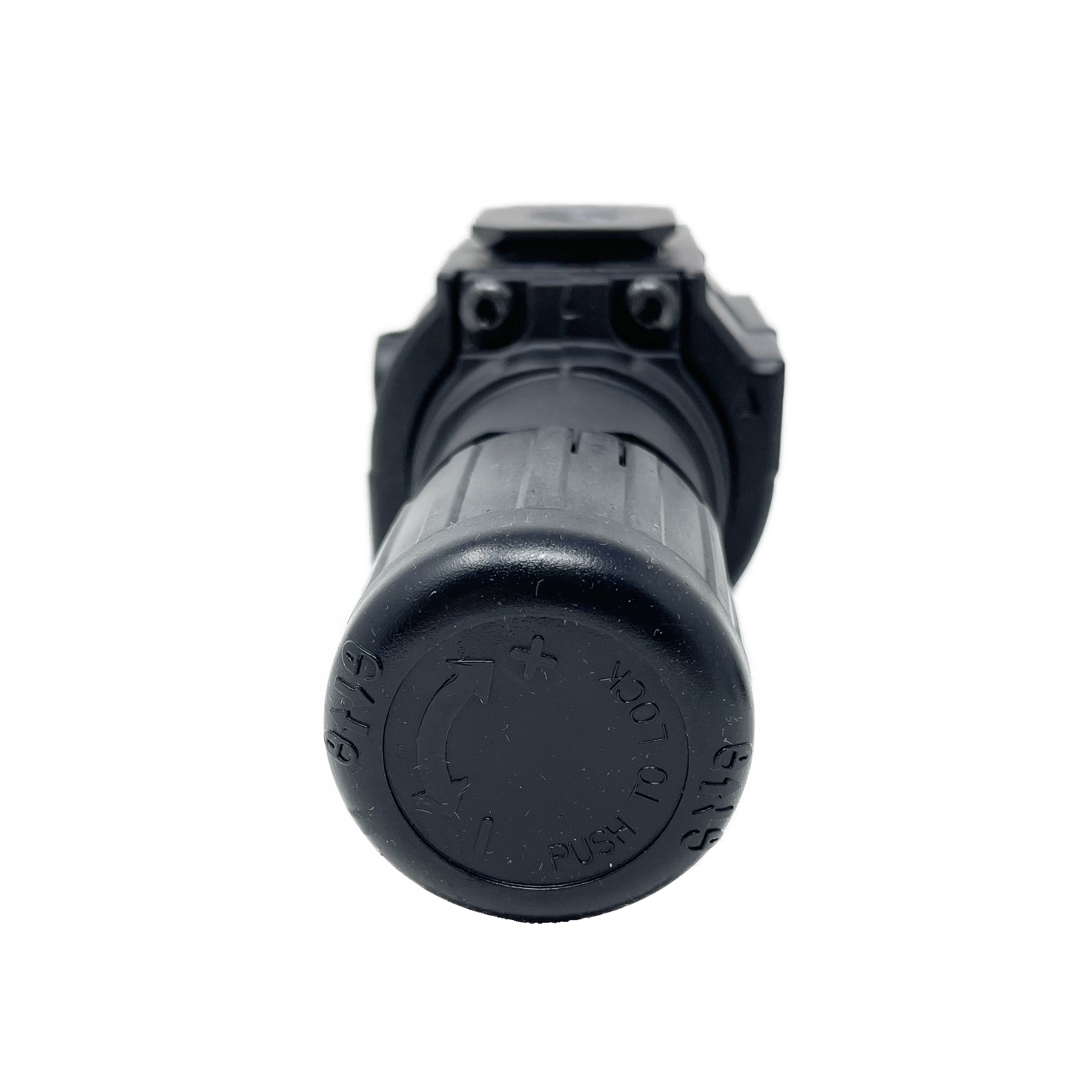

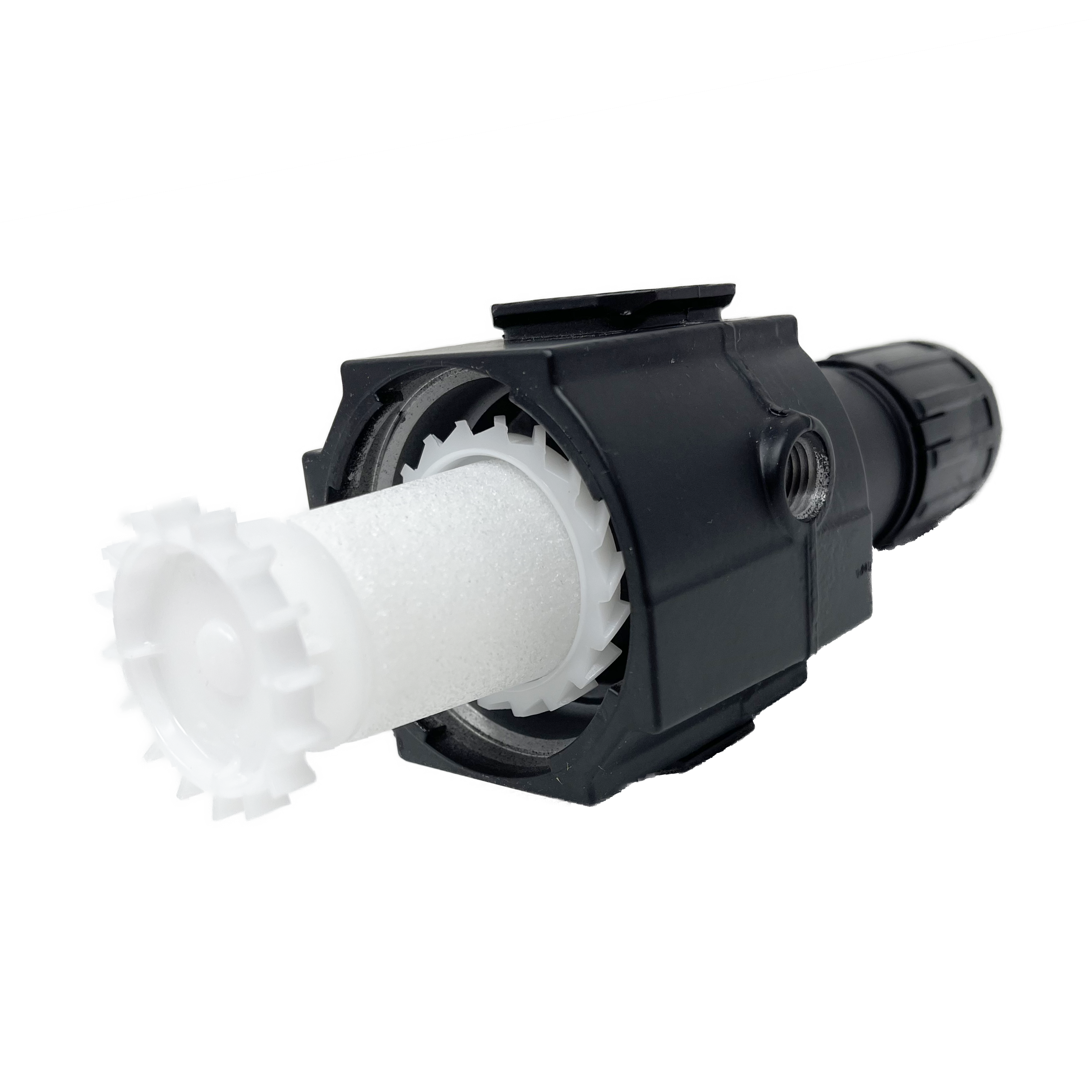

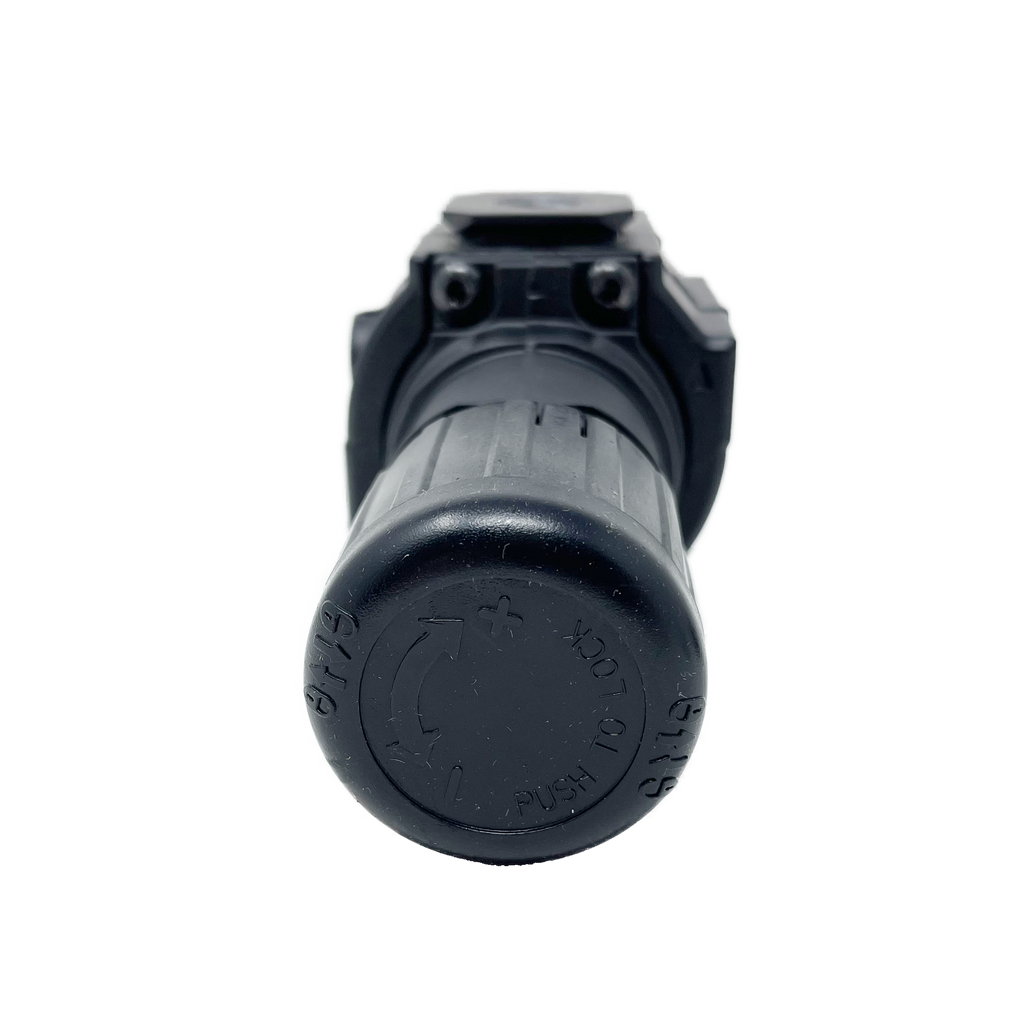

The Norgren Excelon Modular System allows for easy in-line installation with other Excelon products. These units offer high efficiency water and particle removal, a quick release bayonet bowl, a push to lock adjusting tamper-resistant knob, and an automatic or optional quarter-turn manual drain.
| Product SKU | Port Size & Type | Gauge Option | Relief Option | Drain Type | Outlet Pressure Range | Element Rating | Lead Time | Price |
|---|---|---|---|---|---|---|---|---|
| B74G-3AK-AD1-RMG | 3/8" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $360.99 |
| B74G-3AK-AD3-RMG | 3/8" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $360.99 |
| B74G-3AK-AD3-RMN | 3/8" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $331.99 |
| B74G-3AK-AP1-RMG | 3/8" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $355.99 |
| B74G-3AK-AP1-RMN | 3/8" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $325.99 |
| B74G-3AK-QD1-RMG | 3/8" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 24 Days | $287.99 |
| B74G-3AK-QD3-RMG | 3/8" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $287.99 |
| B74G-3AK-QD3-RMN | 3/8" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $258.99 |
| B74G-3AK-QP1-RMG | 3/8" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 182 Days | $282.99 |
| B74G-3AK-QP1-RMN | 3/8" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 25 Days | $252.99 |
| B74G-4AK-AD1-RMG | 1/2" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $360.99 |
| B74G-4AK-AD1-RMN | 1/2" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $331.99 |
| B74G-4AK-AD3-RMG | 1/2" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $360.99 |
| B74G-4AK-AD3-RMN | 1/2" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $331.99 |
| B74G-4AK-AP1-RMG | 1/2" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $355.99 |
| B74G-4AK-AP3-RMG | 1/2" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $355.99 |
| B74G-4AK-AP3-RMN | 1/2" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $325.99 |
| B74G-4AK-QD1-RMG | 1/2" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 5-7 Days | $287.99 |
| B74G-4AK-QD1-RMN | 1/2" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 5-7 Days | $258.99 |
| B74G-4AK-QD3-RMG | 1/2" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $287.99 |
| B74G-4AK-QD3-RMN | 1/2" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $258.99 |
| B74G-4AK-QP1-RMG | 1/2" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 5-7 Days | $282.99 |
| B74G-4AK-QP3-RMG | 1/2" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $282.99 |
| B74G-4AK-QP3-RMN | 1/2" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $252.99 |
| B74G-4AT-AD1-RSG | 1/2" PTF | With Gauge | Relieving | Automatic Drain | 10 to 246psi | 5-Micron | 25 Days | $399.99 |
| B74G-4AT-AD1-RSN | 1/2" PTF | No Gauge | Relieving | Automatic Drain | 10 to 246psi | 5-Micron | 5-7 Days | $369.99 |
| B74G-4AT-QD1-RSG | 1/2" PTF | With Gauge | Relieving | Manual Drain | 10 to 246psi | 5-Micron | 35 Days | $325.99 |
| B74G-4AT-QD1-RSN | 1/2" PTF | No Gauge | Relieving | Manual Drain | 10 to 246psi | 5-Micron | 5-7 Days | $296.99 |
| B74G-6AK-AD1-RMG | 3/4" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $360.99 |
| B74G-6AK-AD1-RMN | 3/4" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $331.99 |
| B74G-6AK-AD3-RMG | 3/4" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $360.99 |
| B74G-6AK-AD3-RMN | 3/4" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $331.99 |
| B74G-6AK-AP1-RMG | 3/4" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 5-Micron | 5-7 Days | $355.99 |
| B74G-6AK-AP3-RMG | 3/4" PTF | With Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $355.99 |
| B74G-6AK-AP3-RMN | 3/4" PTF | No Gauge | Relieving | Automatic Drain | 4 to 145psi | 40-Micron | 5-7 Days | $325.99 |
| B74G-6AK-QD1-RMG | 3/4" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 5-7 Days | $287.99 |
| B74G-6AK-QD1-RMN | 3/4" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 5-7 Days | $258.99 |
| B74G-6AK-QD3-RMG | 3/4" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $287.99 |
| B74G-6AK-QD3-RMN | 3/4" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 5-7 Days | $258.99 |
| B74G-6AK-QP1-RMG | 3/4" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 24 Days | $282.99 |
| B74G-6AK-QP1-RMN | 3/4" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 5-Micron | 24 Days | $252.99 |
| B74G-6AK-QP3-RMG | 3/4" PTF | With Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 24 Days | $282.99 |
| B74G-6AK-QP3-RMN | 3/4" PTF | No Gauge | Relieving | Manual Drain | 4 to 145psi | 40-Micron | 35 Days | $252.99 |
| B74G-6AT-AD1-RSG | 3/4" PTF | With Gauge | Relieving | Automatic Drain | 10 to 246psi | 5-Micron | 35 Days | $399.99 |
| B74G-6AT-QD1-RSN | 3/4" PTF | No Gauge | Relieving | Manual Drain | 10 to 246psi | 5-Micron | 35 Days | $296.99 |
