Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | Same Day |
| Factory Stock | 24 |
| Factory Location | Louisville, Kentucky |
| Installation & Maintenance Manual |
<p><a href="https://s3.amazonaws.com/onehydraulicsdata/DATASHEETS/L74IM.pdf" target="_blank">Click here to download </a></p> |
| Solid Model | |
| Service Manual | Click here to download |
| Port Size | 1/2" PTF |
| Pressure Rating | 150 |
| Operating Temp Range | -30 to 122 F |
| Body Material | Aluminum |
| Seal Material | Neoprene |
| Flow Scfm | 154 |
| Bowl Material | Polycarbonate with metal bowl guard |
| Materials Of Construction | Aluminum Body, Polycarbonate Transparent Bowl, Polycarbonate Transparent Bowl with Aluminum Guard, Transparent Nylon Liquid Level Indicator Lens, Transparen Nylon Sight-Feed Dome, Chloroprene and Nitrile Elastomers. |
| Service Parts | 4324-50 Wall Mounting Bracket, 4315-03 Pipe Adapters 1/2 inch, 4314-51 Quikclamp, 4314-52 Quikclamp and Wall Bracket Combo, 18-011-024 Quick Fill Nipple, 4382-700 Service Kit |
| Drain Type | Manual |
| Lubricator Series | L74M |
| Lubricator Type | Micro Fog |
| Lubricator Style | Excelon |
| Body Length | Transparent with guard |
| Country of Manufacture | United Kingdom |
| Height | 2.91 |
| Length | 8.8 |
| Width | 3.15 |
| Weight | 1.7 |
Description
Carl Norgren invented the compressed airline lubricator. Our range of Norgren lubricators provide accurate lubrication of downstream equipment, proven to extend the life of pneumatic equipment.
Norgren offers two types of lubricators - the oil-fog for those high demand applications and micro-fog for those long distance or intricate circuits. Any pneumatic actuator, valve or device downstream will generally benefit from correct lubrication offering longer life and reducing total cost of ownership.
| Product SKU | Port Size & Type | Lubricator Type | Bowl Material | Drain Type | Bowl Type | Lead Time | Price |
|---|---|---|---|---|---|---|---|
| L74M-3AP-QDN | 3/8" PTF | Micro Fog | Aluminum | Manual | Metal w/ liquid level indicator | 5-7 Days | $187.99 |
| L74M-3AP-QPN | 3/8" PTF | Micro Fog | Polycarbonate with metal bowl guard | Manual | Transparent with guard | Same Day | $182.99 |
| L74M-4AP-QAN | 1/2" PTF | Micro Fog | Aluminum | Manual | 1-qt metal w/liquid level indicator | 5-7 Days | $421.99 |
| L74M-4AP-QDN | 1/2" PTF | Micro Fog | Aluminum | Manual | Metal w/ liquid level indicator | Same Day | $187.99 |

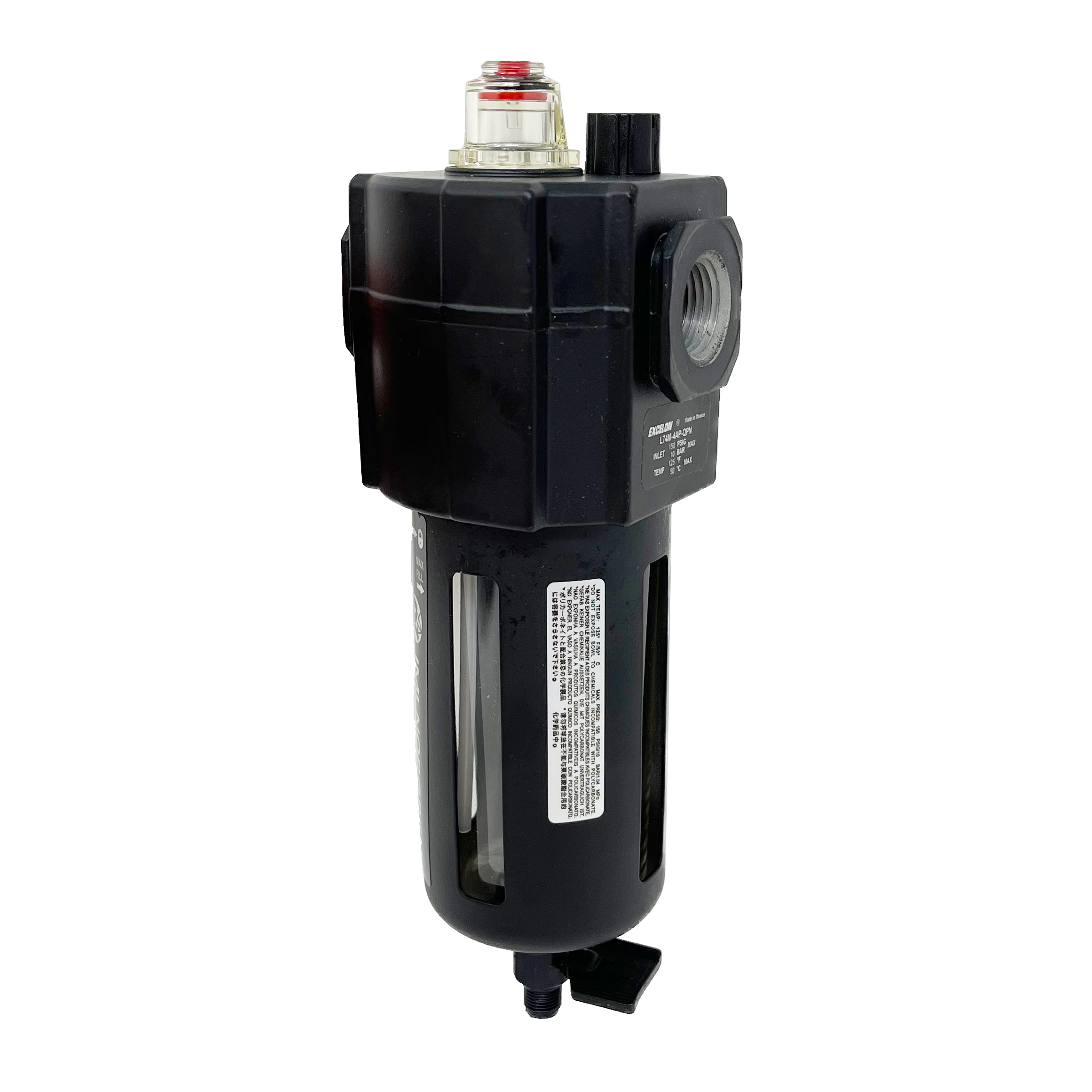

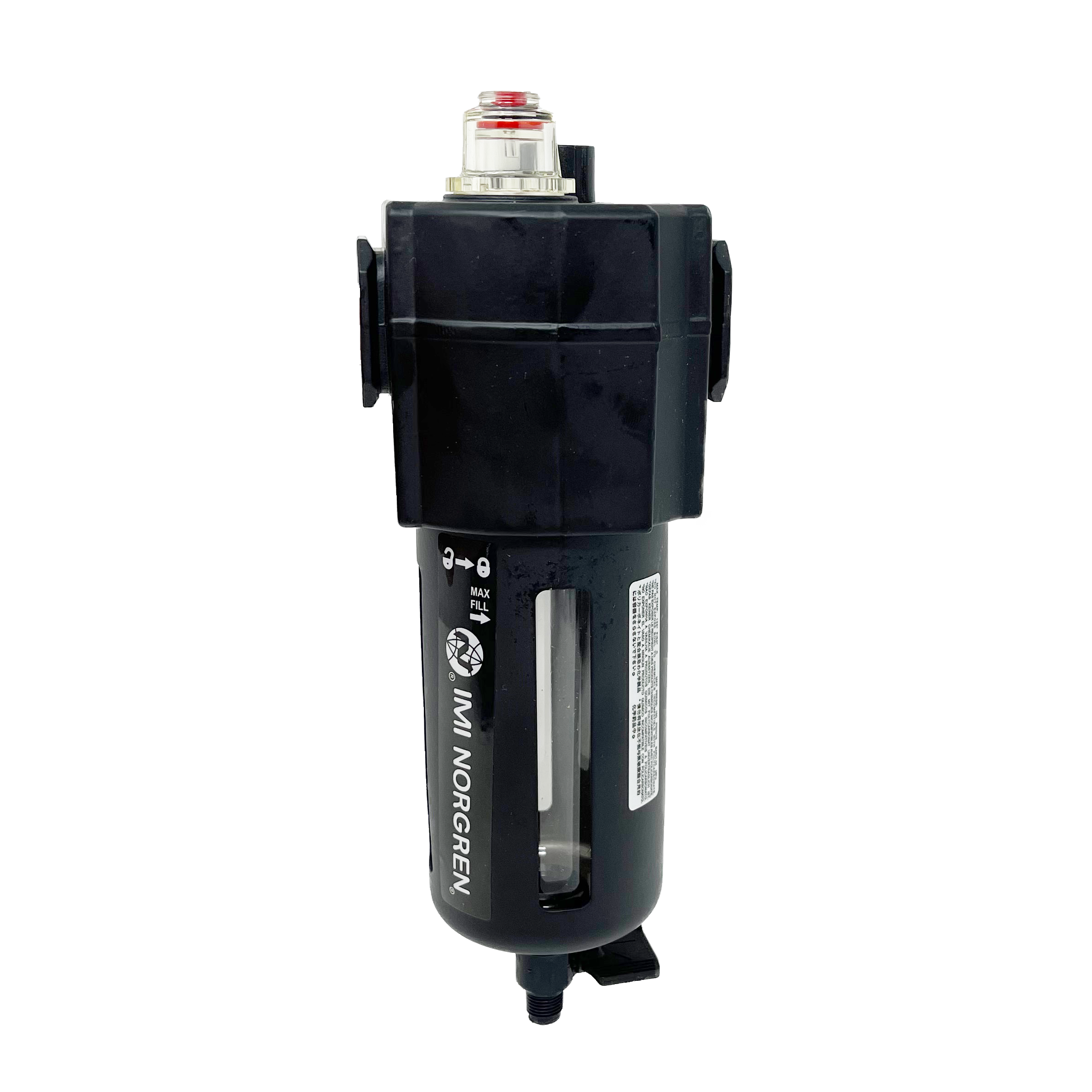

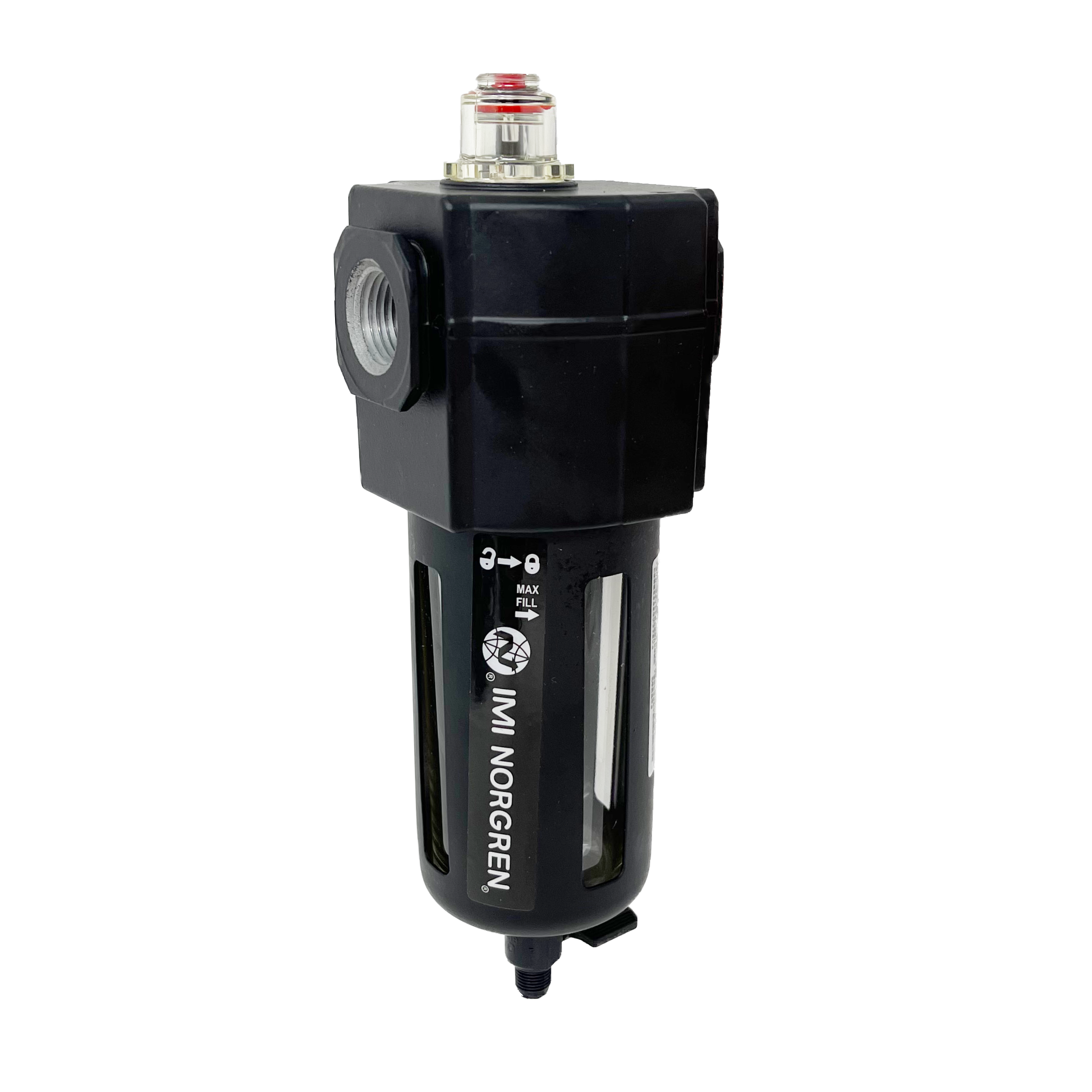

| L74M-4AP-QPN | 1/2" PTF | Micro Fog | Polycarbonate with metal bowl guard | Manual | Transparent with guard | Same Day | $182.99 |
| L74M-6AP-QDN | 3/4" PTF | Micro Fog | Aluminum | Manual | Metal w/ liquid level indicator | Same Day | $187.99 |
| L74M-6AP-QPN | 3/4" PTF | Micro Fog | Polycarbonate with metal bowl guard | Manual | Transparent with guard | Same Day | $182.99 |
