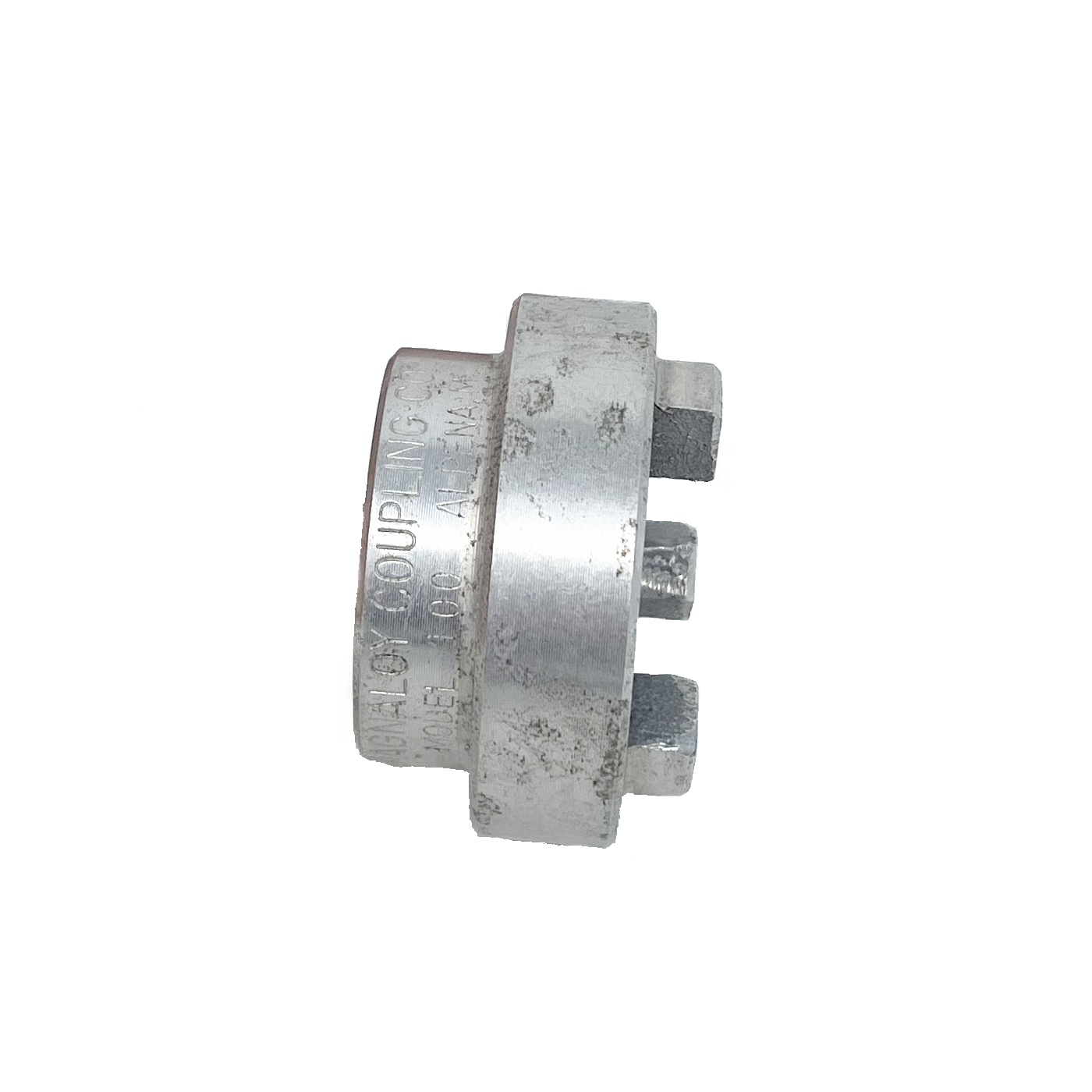

900 4-1/2BX1-1/4K : Magnaloy 900 HUB 4-1/2 BORE X 1-1/4 KEY, M90041640
900 4-1/2BX1-1/4K : Magnaloy 900 HUB 4-1/2 BORE X 1-1/4 KEY, M90041640
Roll over image to zoom in Click on image to zoom
900 4-1/2BX1-1/4K : Magnaloy 900 HUB 4-1/2 BORE X 1-1/4 KEY, M90041640900 4-1/2BX1-1/4K : Magnaloy 900 HUB 4-1/2 BORE X 1-1/4 KEY, M90041640

900 4-1/2BX1-1/4K : Magnaloy 900 HUB 4-1/2 BORE X 1-1/4 KEY, M90041640

Save $163.01
MagnaloySKU: M90041640
1-3 Days
Price:
$901.99 $1,065.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 4.5 (4-1/2")
Country of Manufacture United States
Height 11.4
Length 4.95
Width 11.4
Weight 38

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M90012414S 900 1-3/4BX7/16K : Magnaloy 900 HUB 1-3/4" BORE X 7/16" KEY SPECIAL 900 Keyed 1.75 (1-3/4") 0.4375 (7/16") 1-3 Days $936.99
M90011214S 900 1-3/8BX7/16K : Magnaloy 900 HUB 1-3/8" BORE X 7/16" KEY SPECIAL 900 Keyed 1.375 (1-3/8") 0.4375 (7/16") 1-3 Days $936.99
M90012816 900 1-7/8BX1/2K : Magnaloy 900 HUB 1-7/8" BORE X 1/2" KEY 900 Keyed 1.875 (1-7/8") 0.5 (1/2") 1-3 Days $901.99
M900M10028 900 100MMBX28MMK : Magnaloy 900 HUB 100MM BORE X28MM KEY METRIC SPECIAL 900 Keyed 100mm 28mm 1-3 Days $936.99
M900M10028DSS 900 100MMBX28MMK : Magnaloy 900 HUB 100MM BORE X 28MM KEY W/DBL SET SCREW 900 Keyed 100mm 28mm 7-10 Days $943.99
M900M10028DSS45 900 100MMBX28MMK : Magnaloy 900 HUB 100MM BORE X 28MM KEY DBL SET SCREW 45 DEG 900 Keyed 100mm 28mm 7-10 Days $943.99
M90021620DSS 900 2-1/2BX5/8K : Magnaloy 900 HUB 2-1/2" BORE X 5/8" KEY W/DBL SET SCREW 900 Keyed 2.5 (2-1/2") 0.625 (5/8") 7-10 Days $909.99
M90021620DSS45 900 2-1/2BX5/8K : Magnaloy 900 HUB 2-1/2" BORE X 5/8" KEY DBL SET SCREW 45 DEG 900 Keyed 2.5 (2-1/2") 0.625 (5/8") 7-10 Days $909.99
M90021620 900 2-1/2BX5/8K : Magnaloy 900 HUB 2-1/2" BORE X 5/8" KEY 900 Keyed 2.5 (2-1/2") 0.625 (5/8") 1-3 Days $901.99
M90020816 900 2-1/4BX1/2K : Magnaloy 900 HUB 2-1/4" BORE X 1/2" KEY 900 Keyed 2.25 (2-1/4") 0.5 (1/2") 1-3 Days $901.99
M90020416 900 2-1/8BX1/2K : Magnaloy 900 HUB 2-1/8" BORE X 1/2" KEY 900 Keyed 2.125 (2-1/8") 0.5 (1/2") 1-3 Days $901.99
M90020420 900 2-1/8BX5/8K : Magnaloy 900 HUB 2-1/8" BORE X 5/8" KEY SPECIAL 900 Keyed 2.125 (2-1/8") 0.625 (5/8") 1-3 Days $936.99
M90023024S 900 2-15/16BX3/4K : Magnaloy 900 HUB 2-15/16" BORE X 3/4 KEY SPECIAL 900 Keyed 2.9375 (2-15/16") 0.75 (3/4") 1-3 Days $936.99
M90022420 900 2-3/4BX5/8K : Magnaloy 900 HUB 2-3/4" BORE X 5/8" KEY 900 Keyed 2.75 (2-3/4") 0.625 (5/8") 1-3 Days $901.99
M90022428S 900 2-3/4BX7/8K : Magnaloy 900 HUB 2-3/4" BORE X7/8" KEY SPECIAL 900 Keyed 2.75 (2-3/4") 0.875 (7/8") 1-3 Days $936.99
M90021224S 900 2-3/8BX3/4K : Magnaloy 900 HUB 2-3/8" BORE X 3/4 KEY SPECIAL 900 Keyed 2.375 (2-3/8") 0.75 (3/4") 1-3 Days $936.99
M90021220 900 2-3/8BX5/8K : Magnaloy 900 HUB 2-3/8" BORE X 5/8" KEY 900 Keyed 2.375 (2-3/8") 0.625 (5/8") 1-3 Days $901.99
M90022020 900 2-5/8BX5/8K : Magnaloy 900 HUB 2-5/8" BORE X 5/8" KEY 900 Keyed 2.625 (2-5/8") 0.625 (5/8") 1-3 Days $901.99
M90022824DSS 900 2-7/8BX3/4K : Magnaloy 900 HUB 2-7/8" BORE X 3/4" KEY W/DBL SET SCREW 900 Keyed 2.875 (2-7/8") 0.75 (3/4") 7-10 Days $936.99
M90022824 900 2-7/8BX3/4K : Magnaloy 900 HUB 2-7/8" BORE X 3/4" KEY 900 Keyed 2.875 (2-7/8") 0.75 (3/4") 1-3 Days $901.99
M90020016 900 2BX1/2K : Magnaloy 900 HUB 2" BORE X 1/2" KEY 900 Keyed 2" 0.5 (1/2") 1-3 Days $901.99
M90031628 900 3-1/2BX7/8K : Magnaloy 900 HUB 3-1/2" BORE X 7/8" KEY 900 Keyed 3.5 (3-1/2") 0.875 (7/8") 1-3 Days $901.99
M90030824DSS 900 3-1/4BX3/4K : Magnaloy 900 HUB 3-1/4" BORE X 3/4" KEY W/DBL SET SCREW 900 Keyed 3.25 (3-1/4") 0.75 (3/4") 7-10 Days $909.99
M90030824 900 3-1/4BX3/4K : Magnaloy 900 HUB 3-1/4" BORE X 3/4" KEY 900 Keyed 3.25 (3-1/4") 0.75 (3/4") 1-3 Days $901.99
M90030424S 900 3-1/8BX3/4K : Magnaloy 900 HUB 3-1/8" BORE X 3/4 KEY SPECIAL 900 Keyed 3.125 (3-1/8") 0.75 (3/4") 1-3 Days $936.99
M90032424S 900 3-3/4BX3/4K : Magnaloy 900 HUB 3-3/4" BORE X 3/4" KEY SPECIAL 900 Keyed 3.75 (3-3/4") 0.75 (3/4") 1-3 Days $936.99
M90032428 900 3-3/4BX7/8K : Magnaloy 900 HUB 3-3/4" BORE X 7/8" KEY 900 Keyed 3.75 (3-3/4") 0.875 (7/8") 1-3 Days $901.99
M90031228DSS 900 3-3/8BX7/8K : Magnaloy 900 HUB 3-3/8" BORE X 7/8" KEY W/DBL SET SCREW 900 Keyed 3.375 (3-3/8") 0.875 (7/8") 7-10 Days $909.99
M90031228 900 3-3/8BX7/8K : Magnaloy 900 HUB 3-3/8" BORE X 7/8" KEY 900 Keyed 3.375 (3-3/8") 0.875 (7/8") 1-3 Days $901.99
M90032028 900 3-5/8BX7/8K : Magnaloy 900 HUB 3-5/8" BORE X 7/8" KEY 900 Keyed 3.625 (3-5/8") 0.875 (7/8") 1-3 Days $901.99
M90031428S 900 3-7/16BX7/8K : Magnaloy 900 HUB 3-7/16 BORE X7/8" KEY SPECIAL 900 Keyed 3.4375 (3-7/16") 0.875 (7/8") 1-3 Days $936.99
M90032832DSS45 900 3-7/8BX1K : Magnaloy 900 HUB 3-7/8" BORE X 1" KEY W/DBL SET SCREW AT 45DEG 900 Keyed 3.875 (3-7/8") 1" 7-10 Days $909.99
M90032832DSS 900 3-7/8BX1K : Magnaloy 900 HUB 3-7/8" BORE X 1" KEY W/DBL SET SCREW 900 Keyed 3.875 (3-7/8") 1" 7-10 Days $909.99
M90032832 900 3-7/8BX1K : Magnaloy 900 HUB 3-7/8" BORE X 1" KEY 900 Keyed 3.875 (3-7/8") 1" 1-3 Days $901.99
M90030032S 900 3BX1 : Magnaloy 900 HUB 3" BORE X 1 SPECIAL 900 Keyed 3" 1" 1-3 Days $936.99
M90030024 900 3BX3/4K : Magnaloy 900 HUB 3" BORE X 3/4" KEY 900 Keyed 3" 0.75 (3/4") 1-3 Days $901.99
M90030020S 900 3BX5/8K : Magnaloy 900 HUB 3" BORE X 5/8" KEY SPECIAL 900 Keyed 3" 0.625 (5/8") 1-3 Days $970.99
M90041640 900 4-1/2BX1-1/4K : Magnaloy 900 HUB 4-1/2" BORE X 1-1/4" KEY 900 Keyed 4.5 (4-1/2") 1.25 ( 1-1/4") 1-3 Days $901.99
M90041632DSS 900 4-1/2BX1K : Magnaloy 900 HUB 4-1/2" BORE X 1" KEY W/DBL SET SCREW 900 Keyed 4.5 (4-1/2") 1" 7-10 Days $909.99
M90041632 900 4-1/2BX1K : Magnaloy 900 HUB 4-1/2" BORE X 1" KEY 900 Keyed 4.5 (4-1/2") 1" 1-3 Days $901.99
M90040828S 900 4-1/4B X 7/8K : Magnaloy 900 HUB 4-1/4" BORE X 7/8" KEY SPECIAL 900 Keyed 4.25 (4-1/4") 0.875 (7/8") 1-3 Days $970.99
M90040832DSS 900 4-1/4BX1K : Magnaloy 900 HUB 4-1/4" BORE X 1" KEY W/DBL SET SCREW 900 Keyed 4.25 (4-1/4") 1" 7-10 Days $909.99
M90040832 900 4-1/4BX1K : Magnaloy 900 HUB 4-1/4" BORE X 1" KEY 900 Keyed 4.25 (4-1/4") 1" 1-3 Days $901.99
M90040432 900 4-1/8BX1K : Magnaloy 900 HUB 4-1/8" BORE X 1" KEY 900 Keyed 4.125 (4-1/8") 1" 1-3 Days $901.99
M90042440 900 4-3/4BX1-1/4K : Magnaloy 900 HUB 4-3/4" BORE X 1-1/4" KEY 900 Keyed 4.75 (4-3/4") 1.25 ( 1-1/4") 1-3 Days $901.99
M90041232 900 4-3/8BX1K : Magnaloy 900 HUB 4-3/8" BORE X 1" KEY 900 Keyed 4.375 (4-3/8") 1" 1-3 Days $901.99
M90042040 900 4-5/8BX1-1/4K : Magnaloy 900 HUB 4-5/8" BORE X 1-1/4" KEY 900 Keyed 4.625 (4-5/8") 1.25 ( 1-1/4") 1-3 Days $901.99
M90041432S 900 4-7/16B X 1K : Magnaloy 900 HUB 4-7/16" BORE X 1" KEY SPECIAL 900 Keyed 4.4375 (4-7/16") 1" 1-3 Days $936.99
M90040032DSS 900 4BX1K : Magnaloy 900 HUB 4" BORE X 1" KEY W/DBL SET SCREW 900 Keyed 4" 1" 7-10 Days $936.99
M90040032 900 4BX1K : Magnaloy 900 HUB 4" BORE X 1" KEY 900 Keyed 4" 1" 1-3 Days $901.99
