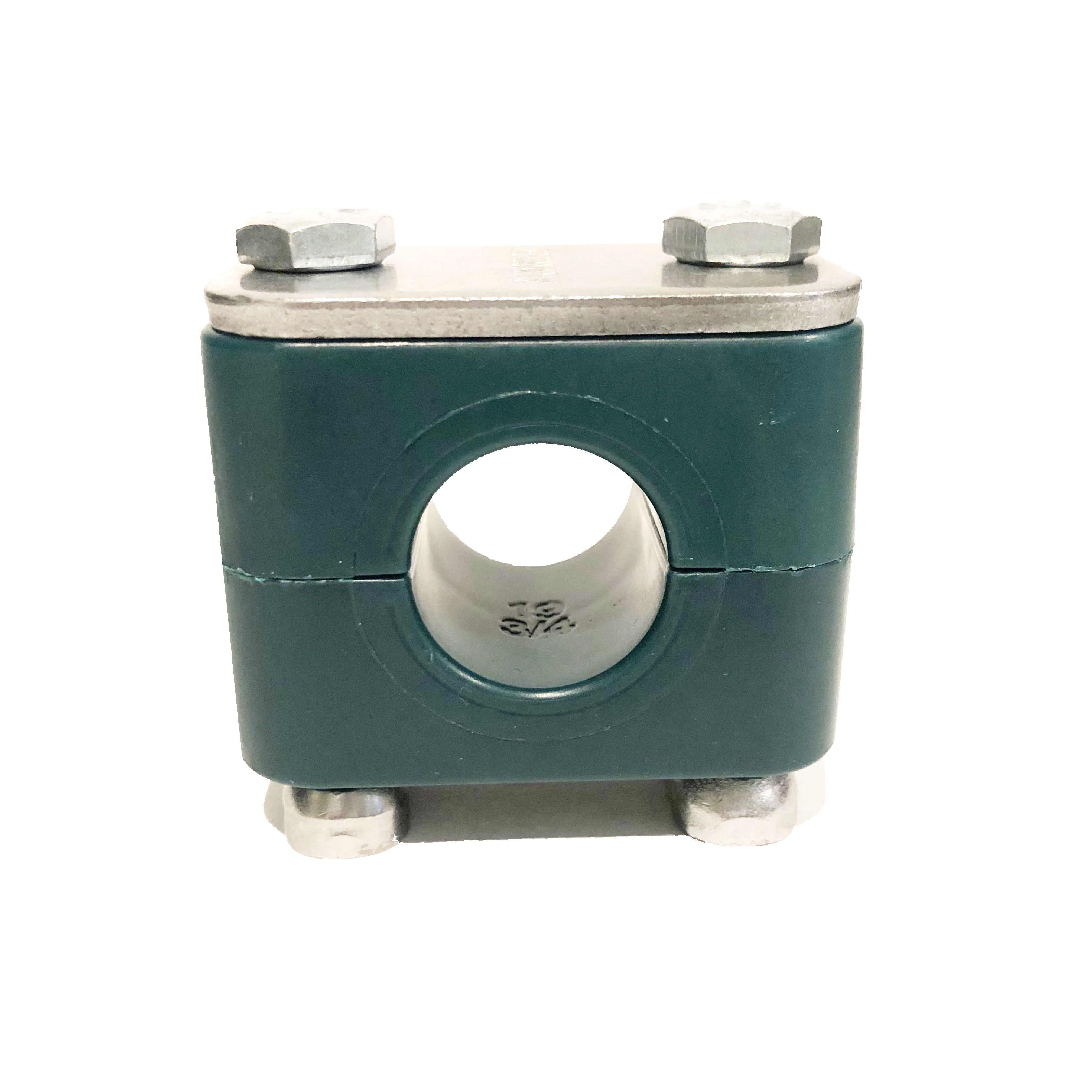

SM-216-PP-H-DP-AS-U-W3 : Stauff Clamp, Rail Mount, 0.625 inch (16mm) OD, for 5/8" Tube, Green PP Insert, Smooth Interior, Carbon Steel
Roll over image to zoom in Click on image to zoom
SM-216-PP-H-DP-AS-U-W3 : Stauff Clamp, Rail Mount, 0.625 inch (16mm) OD, for 5/8" Tube, Green PP Insert, Smooth Interior, Carbon Steel

SM-216-PP-H-DP-AS-U-W3 : Stauff Clamp, Rail Mount, 0.625 inch (16mm) OD, for 5/8" Tube, Green PP Insert, Smooth Interior, Carbon Steel

StauffSKU: 6100091077
Same Day
10
Price:
$5.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Waldwick, New Jersey
Outside Diameter 0.625 inch (16mm)
Hardware Material Carbon Steel
Clamp Style Standard Rail Mount
Clamp Type Tube Clamp
Clamp Group Size Stauff Group 2 (DIN 2)
Nominal Tube Size 5/8 inch Tube
Country of Manufacture Germany
Height 1.3
Length 1.65
Width 1.18
Weight 0.21

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Tube Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
6100093979 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 1A (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100081224 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 1A (DIN 1) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $21.99
SM-106.4A-PP-H-DP-AS-U-W3 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 1A (DIN 1) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-106.4A-PP-H-DP-AS-U-W5 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 1A (DIN 1) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $5.99
6100080760 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 1A (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-109.5-PP-DP-AS-U-W5 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 1A (DIN 1) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $13.99
6100058535 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 1A (DIN 1) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-109.5-PP-H-DP-AS-U-W5 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 1A (DIN 1) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $13.99
6100080790 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance Same Day $5.99
6100081246 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 2 (DIN 2) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $23.99
SM-212.7-PP-H-DP-AS-U-W3 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 2 (DIN 2) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
6100160996 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 2 (DIN 2) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $23.99
6100080811 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100081254 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 2 (DIN 2) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $23.99
6100091077 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 2 (DIN 2) Carbon Steel Smooth Interior without Tension Clearance Same Day $5.99
6100229537 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 2 (DIN 2) 316SS Smooth Interior without Tension Clearance Same Day $22.99
6100080852 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100081264 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 3 (DIN 3) 316SS Profiled Interior with Tension Clearance Same Day $24.99
6100094011 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-319-PP-H-DP-AS-U-W5 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 3 (DIN 3) 316SS Smooth Interior without Tension Clearance Same Day $15.99
6100080871 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-322-PP-DP-AS-U-W5 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 3 (DIN 3) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $15.99
6100147131 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-322-PP-H-DP-AS-U-W5 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 3 (DIN 3) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $15.99
6100080884 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100094021 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 3 (DIN 3) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $24.99
6100094022 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-325.4-PP-H-DP-AS-U-W5 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 3 (DIN 3) 316SS Smooth Interior without Tension Clearance Same Day $15.99
6100080938 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-532-PP-H-DP-AS-U-W3 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $1.99
6100080965 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
6100080968 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
6100094043 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance Same Day $7.99
SM-644.5-PP-DP-AS-U-W5 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6 (DIN 6) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $22.99
SM-644.5-PP-H-DP-AS-U-W3 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-644.5-PP-H-DP-AS-U-W5 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6 (DIN 6) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $22.99
6100081001 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance Same Day $7.99
6100149867 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) 316SS Profiled Interior with Tension Clearance 4-6 Weeks $34.99
6100212494 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $8.99
SM-650.8-PP-H-DP-AS-U-W5 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $22.99
SM-757.2-PP-DP-AS-U-W3 Tube Clamp 2.25 inch (57.2mm) 2.25 inch Tube Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $5.99
SM-757.2-PP-DP-AS-U-W5 Tube Clamp 2.25 inch (57.2mm) 2.25 inch Tube Stauff Group 7 (DIN 7) 316SS Profiled Interior with Tension Clearance Same Day $37.99
SM-757.2-PP-H-DP-AS-U-W3 Tube Clamp 2.25 inch (57.2mm) 2.25 inch Tube Stauff Group 7 (DIN 7) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-757.2-PP-H-DP-AS-U-W5 Tube Clamp 2.25 inch (57.2mm) 2.25 inch Tube Stauff Group 7 (DIN 7) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $37.99
6100094046 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
SM-763.5-PP-DP-AS-U-W5 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 7 (DIN 7) 316SS Profiled Interior with Tension Clearance Same Day $37.99
SM-763.5-PP-H-DP-AS-U-W3 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 7 (DIN 7) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
SM-763.5-PP-H-DP-AS-U-W5 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 7 (DIN 7) 316SS Smooth Interior without Tension Clearance 4-6 Weeks $37.99
6100094047 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
SM-770-PP-DP-AS-U-W5 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 7 (DIN 7) 316SS Profiled Interior with Tension Clearance Same Day $37.99
