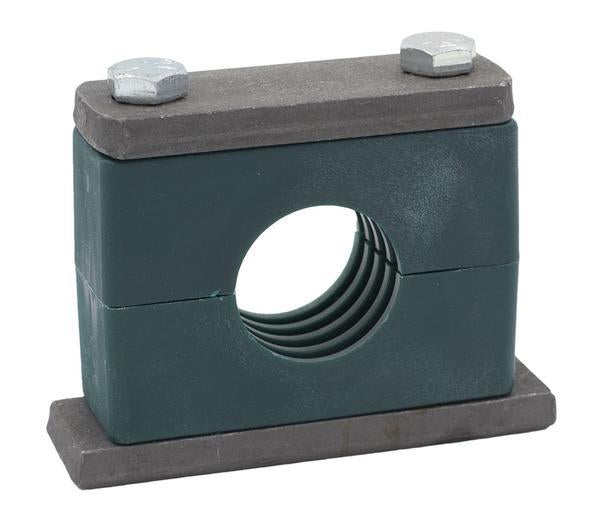

SPAL-6048.3-PP-DPAL-AS-U-W5 : Stauff Clamp, Single Weld Plate, Heavy, 1.9" (48.3mm) OD, for 1.5" Pipe, Green PP Insert, Profiled Interior, 316SS
Roll over image to zoom in Click on image to zoom
SPAL-6048.3-PP-DPAL-AS-U-W5 : Stauff Clamp, Single Weld Plate, Heavy, 1.9" (48.3mm) OD, for 1.5" Pipe, Green PP Insert, Profiled Interior, 316SS

SPAL-6048.3-PP-DPAL-AS-U-W5 : Stauff Clamp, Single Weld Plate, Heavy, 1.9" (48.3mm) OD, for 1.5" Pipe, Green PP Insert, Profiled Interior, 316SS

Save $38.61
StauffSKU: 6100094307
4-6 Weeks
Price:
$165.99 $204.60

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Waldwick, New Jersey
Nominal Pipe Size 1.5 inch Pipe
Outside Diameter 1.9" (48.3mm)
Hardware Material 316 Stainless Steel
Clamp Style Heavy Series Clamp
Clamp Type Pipe Clamp
Clamp Group Size Stauff Group 6S (DIN 4)
Country of Manufacture Germany
Height 3.5
Length 4.53
Width 1.77
Weight 2.66 lbs

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Pipe Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
6100082672 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $8.99
6100135036 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $72.99
6100082695 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance Same Day $8.99
SPAL-3013.5-PP-DPAL-AS-U-W5 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $47.99
6100100880 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 3S (DIN 1) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $15.99
SPAL-3013.5-PP-H-DPAL-AS-U-W5 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 3S (DIN 1) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $52.99
6100082713 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance Same Day $8.99
6100082715 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $72.99
6100082716 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 3S (DIN 1) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $8.99
6100183527 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 3S (DIN 1) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $72.99
6100082769 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance Same Day $9.99
6100082776 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $79.99
6100082777 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 4S (DIN 2) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $16.99
SPAL-4021.3-PP-H-DPAL-AS-U-W5 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 4S (DIN 2) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $56.99
6100082824 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance Same Day $9.99
1110028130 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $79.99
6100094269 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4S (DIN 2) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $16.99
SPAL-4026.9-PP-H-DPAL-AS-U-W5 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4S (DIN 2) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $56.99
6100082898 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5S (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $10.99
1110028131 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5S (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $86.99
SPAL-5033.7-PP-H-DPAL-AS-U-W15 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5S (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $11.99
6100082942 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5S (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $10.99
6100094291 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5S (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $86.99
SPAL-5042-PP-H-DPAL-AS-U-W15 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5S (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $6.99
6100083008 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance Same Day $22.99
6100094307 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $165.99
6100100993 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6S (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $24.99
SPAL-6048.3-PP-H-DPAL-AS-U-W5 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6S (DIN 4) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $110.99
6100083070 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance Same Day $22.99
6100083079 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $165.99
6100094317 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 6S (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $33.99
SPAL-6060.3-PP-H-DPAL-AS-U-W5 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 6S (DIN 4) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $116.99
6100083127 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7S (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $49.99
6100094336 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7S (DIN 5) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $333.99
6100101042 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7S (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $65.99
SPAL-7073-PP-H-DPAL-AS-U-W5 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7S (DIN 5) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $231.99
1110028133 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8S (DIN 6) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $803.99
6100101065 Pipe Clamp 4.49" (114mm) 4 inch Pipe Stauff Group 8S (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $249.99
SPAL-8114-PP-H-DPAL-AS-U-W5 Pipe Clamp 4.49" (114mm) 4 inch Pipe Stauff Group 8S (DIN 6) 316 Stainless Steel Smooth Interior without Tension Clearance 4-6 Weeks $625.99
6100083218 Pipe Clamp 5.51" (140mm) 5 inch Pipe Stauff Group 9S (DIN 7) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $163.99
6100101072 Pipe Clamp 5.51" (140mm) 5 inch Pipe Stauff Group 9S (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $800.99
6100083227 Pipe Clamp 6.61" (168mm) 6 inch Pipe Stauff Group 9S (DIN 7) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $163.99
6100083233 Pipe Clamp 6.61" (168mm) 6 inch Pipe Stauff Group 9S (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $800.99
