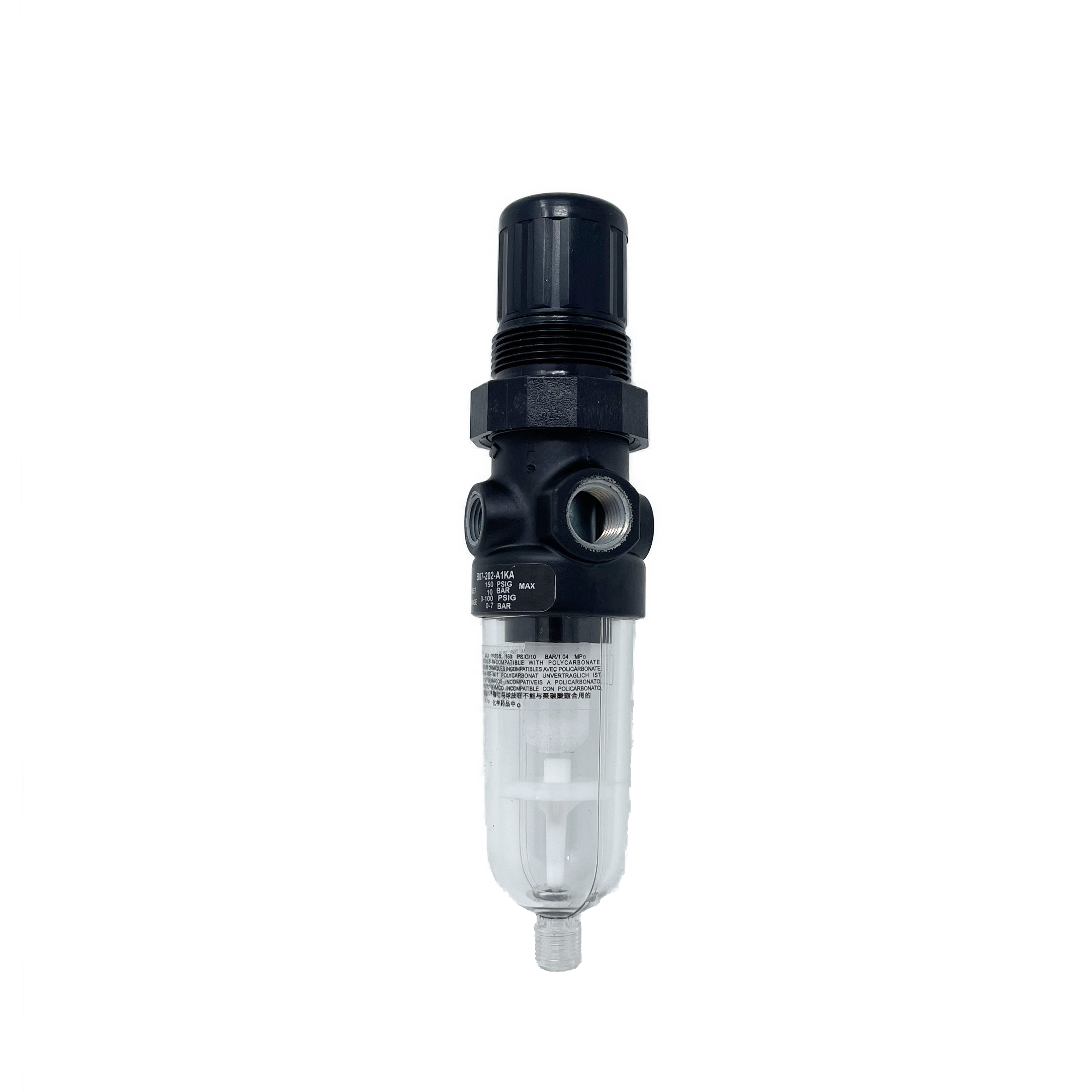

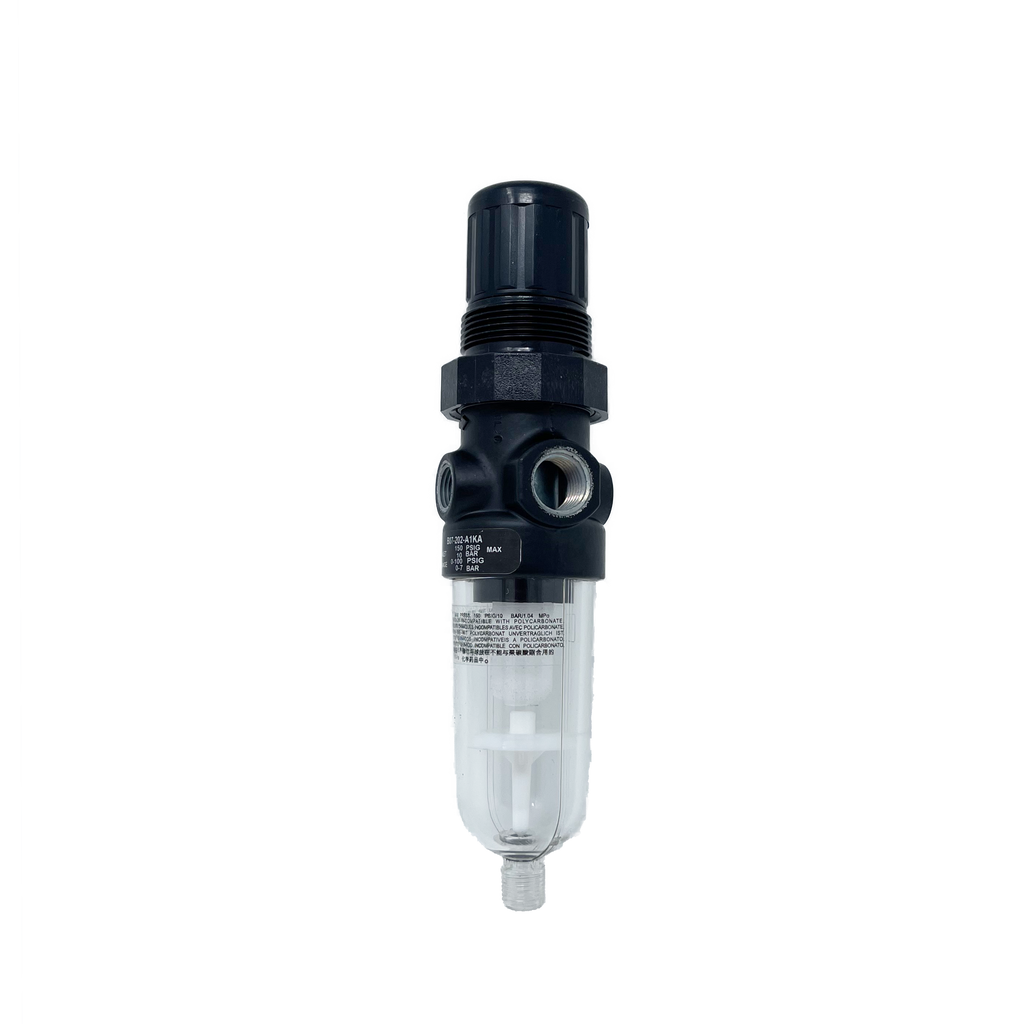

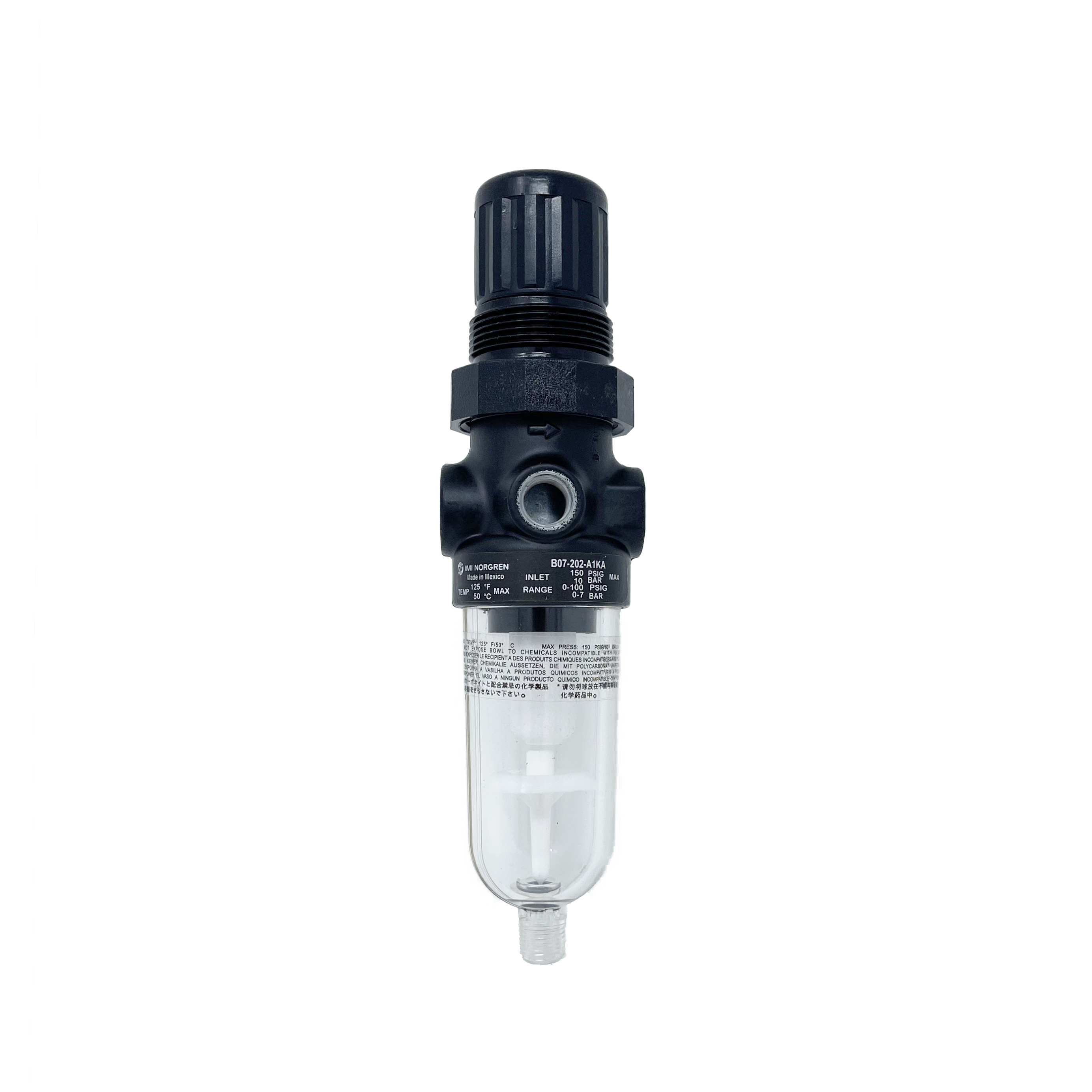

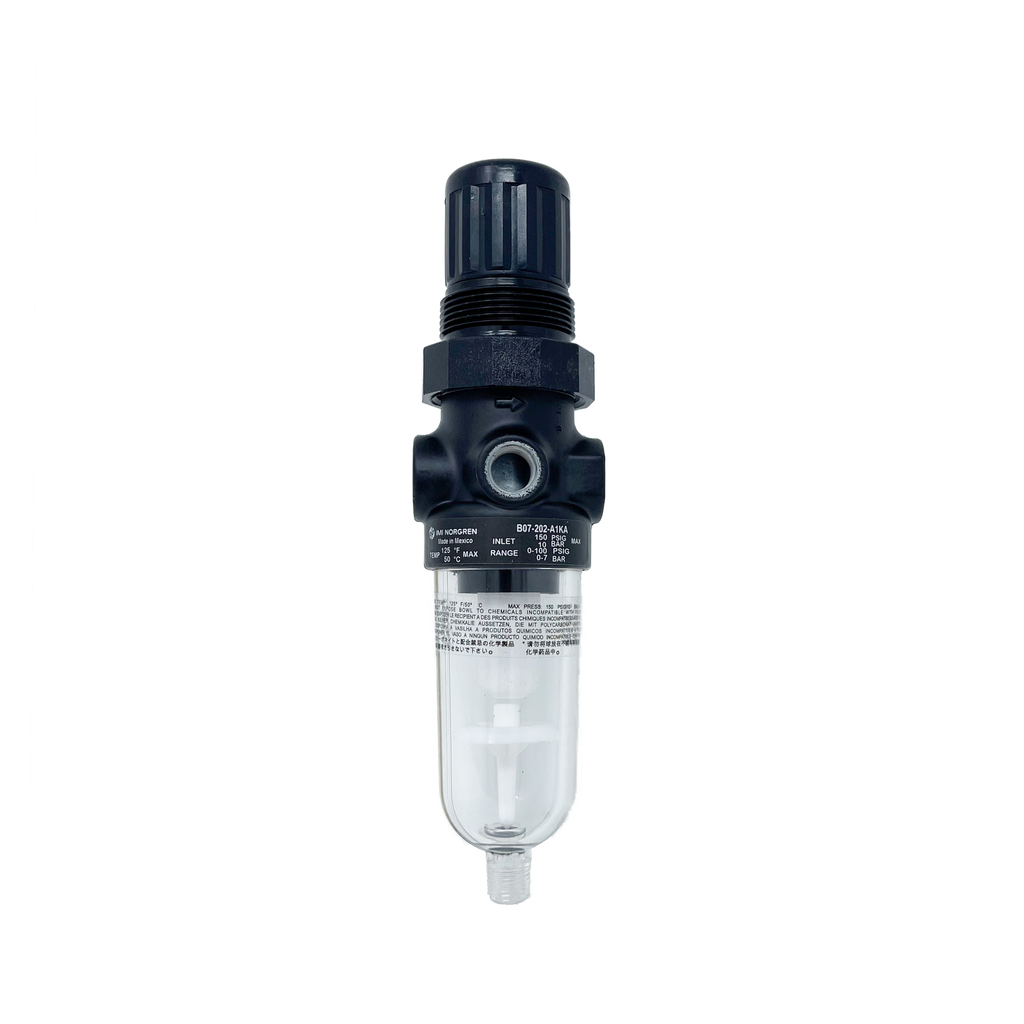

B07-201-A3KA : Norgren B07 miniature filter/regulator, Transparent Bowl, Relieving, Without Gauge, Automatic Drain, 40-Micron, 5

NorgrenSKU: B07-201-A3KA
24 Days

Price:
Sale price$125.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 24 Days
Factory Location Louisville, Kentucky
Installation & Maintenance Manual Click here to download
Port Size 1/4" NPT
Micron 40-Micron
O Ring Seals Nitrile rubber
Operating Temp Range -30 to 125 F
Body Material Zinc
Relief Option Relieving
Outlet Pressure Range 5 to 100psi
Bonnet Acetal
Flow Scfm 14
Bowl Material Polycarbonate
Drain Type Automatic Drain
Series B07
Country of Manufacture United Kingdom
Weight 0.57

Description

High flow design provides high flow with minimum pressure drop. Snap action lock on non-rising adjustment knob

Product SKU Port Size & Type Flow SCFM Relief Option Drain Type Outlet Pressure Range Element Rating Lead Time Price
B07-101-A1KA 1/8" PTF 13 Relieving Automatic Drain 5 to 100psi 5-Micron 5-7 Days $96.99
B07-101-M1KA 1/8" PTF 13 Relieving Manual Drain 5 to 100psi 5-Micron 5-7 Days $86.99
B07-102-A1KA 1/8" PTF 13 Relieving Automatic Drain 5 to 100psi 5-Micron 5-7 Days $119.99
B07-102-M1KA 1/8" PTF 13 Relieving Manual Drain 5 to 100psi 5-Micron 5-7 Days $109.99
B07-103-M1KA 1/8" PTF 13 Non-Relieving Manual Drain 5 to 100psi 5-Micron 35 Days $110.99
B07-201-A1EA 1/4" PTF 14 Relieving Automatic Drain 5 to 50psi 5-Micron 25 Days $105.99
B07-201-A1KA 1/4" PTF 14 Relieving Automatic Drain 5 to 100psi 5-Micron 5-7 Days $96.99
B07-201-A3KA 1/4" NPT 14 Relieving Automatic Drain 5 to 100psi 40-Micron 24 Days $125.99
B07-201-M1EA 1/4" PTF 14 Relieving Manual Drain 5 to 50psi 5-Micron 25 Days $100.99
B07-201-M1KA 1/4" PTF 14 Relieving Manual Drain 5 to 100psi 5-Micron 5-7 Days $86.99
B07-202-A1KA 1/4" PTF 14 Relieving Automatic Drain 5 to 100psi 5-Micron Same Day $119.99
B07-202-M1KA 1/4" PTF 14 Relieving Manual Drain 5 to 100psi 5-Micron 5-7 Days $109.99
B07-205-A1MA 1/4" NPT 14 Relieving Automatic Drain 5 to 145psi 5-Micron 160 Days $104.99
B07-205-A1MG 1/4" ISO G 14 Relieving Automatic Drain 5 to 145psi 5-Micron 5-7 Days $97.99
B07-205-A3MA 1/4" NPT 14 Relieving Automatic Drain 5 to 145psi 40-Micron 35 Days $137.99
B07-205-A3MG 1/4" ISO G 14 Relieving Automatic Drain 5 to 145psi 40-Micron 5-7 Days $97.99
B07-205-M1MA 1/4" NPT 14 Relieving Manual Drain 5 to 145psi 5-Micron 5-7 Days $93.99
B07-205-M3MG 1/4" ISO G 14 Relieving Manual Drain 5 to 145psi 40-Micron 5-7 Days $117.99
B07-233-A1KA 1/4" PTF 14 Relieving Automatic Drain 5 to 100psi 5-Micron 24 Days $119.99
B07-233-A1KG 1/4" ISO G 14 Relieving Automatic Drain 5 to 100psi 5-Micron 24 Days $129.99
B07-233-M1KA 1/4" PTF 14 Relieving Manual Drain 5 to 100psi 5-Micron 5-7 Days $94.99
B07-234-A1KA 1/4" PTF 14 Relieving Automatic Drain 5 to 100psi 5-Micron Same Day $126.99
B07-234-M1KA 1/4" PTF 14 Relieving Manual Drain 5 to 100psi 5-Micron 24 Days $117.99
